Low Pressure Belt Type Air Cooling Marine Air Compressor
Three cylinders. Air cooling. Second stage compression. Piston type. Feature High Efficiency,energy saving,low noise. Specification M...
Loading product images...

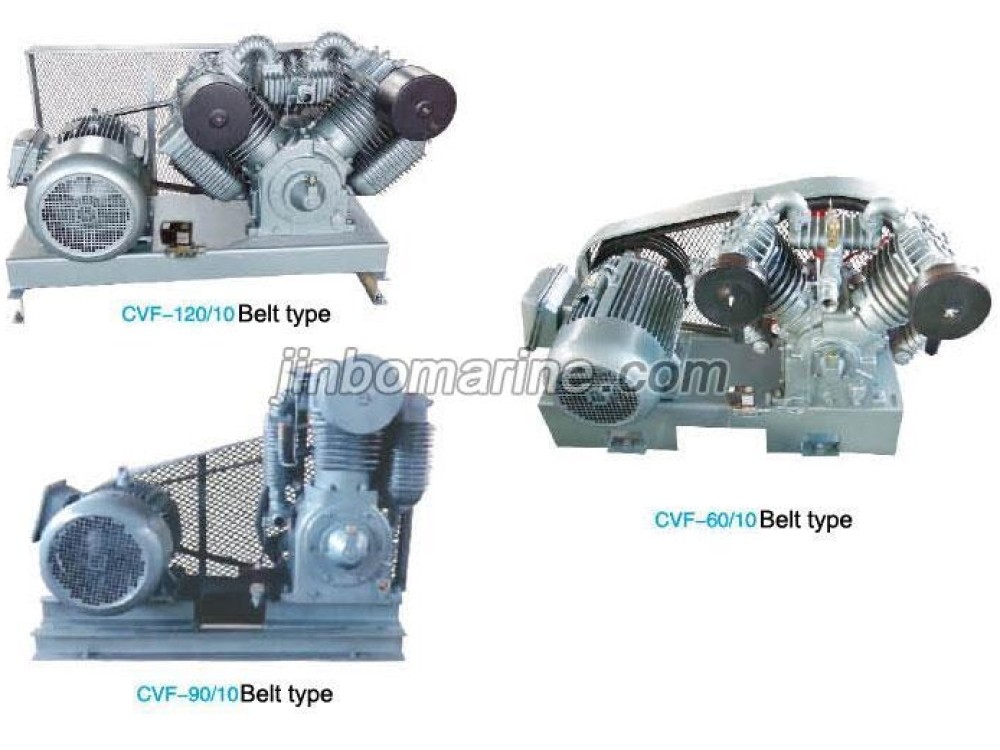

Low Pressure Belt Type Air Cooling Marine Air Compressor
PDF Datasheet
We can supply according to your requirement.
China Low Pressure Belt Type Air Cooling Marine Air Compressor:
Three cylinders.
Air cooling.
Second stage compression.
Piston type.
Feature
High Efficiency,energy saving,low noise.
Specification
| Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Weight | Overall size |
| m3/h | Mpa | r/min | KW | Kg | mm | ||
| CVF-60/10 | Vertical type Air cooling | 60 | 1 | 650 | 7.5 | 310 | 1110x680x820 |
| CVF-90/10 | 90 | 720 | 15 | 410 | 1250x600x710 | ||
| CVF-120/10 | 120 | 750 | 18.5 | 430 | 1200x620x850 |
