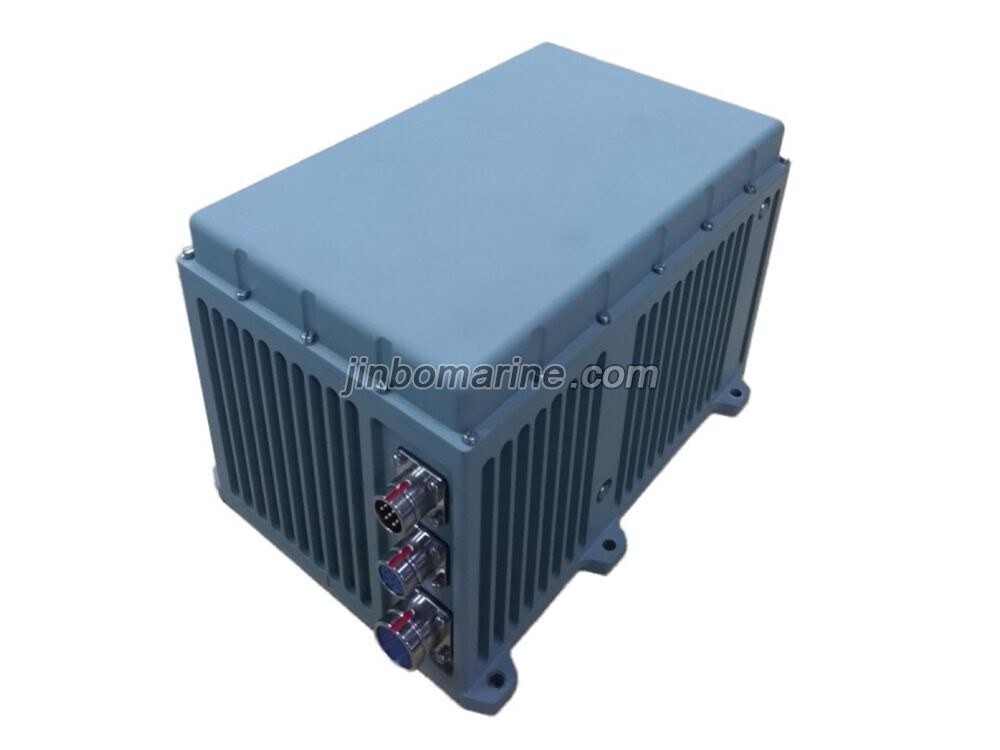

MFG‐I Marine Fiber-Optic Gyrocompass
Product Introduction: MFG-I marine fiber-optic gyrocompass contains the high-precision fiber-optic gyroscopes and quartz accelerometers, and can provide the heading angle and attitudes...
MFG‐I Marine Fiber-Optic Gyrocompass
PDF Datasheet
We can supply according to your requirement.
Product Introduction:
MFG-I marine fiber-optic gyrocompass contains the high-precision fiber-optic gyroscopes and quartz accelerometers, and can provide the heading angle and attitudes of the ship.
Technical features:
Autonomous north seeking within 20min;
Both dock start-up and navigation start-upare available;
Maintenance-freeand don’t need replace the gyros regularly;
Support integrated navigation with logs, Beidou ,GPS and GLONASS;
RS232/RS422/CAN interface are configurable;
Supporting 100% dual redundant configuration to meet IMO security return requirements；
Main performance:
| Performance | Heading accuracy | 0.3°（RMS，1σ） |
| Attitude accuracy | 0.1°（RMS，1σ） | |
| Heave accuracy | ≤5cmor 5%H（which is higher） | |
| Interfaces | Output | RS422/CAN(Configurable) |
| Frequency | ≤200Hz(Configurable) | |
| Protocol | NEMA0183 | |
| Input | Support integrated navigation with logs, Beidou ,GPS and GLONASS | |
| Mechanical | Dimensions(Length×width×height) | 280mm×203mm×187mm |
| Weight | ＜12kg | |
| Input voltage | （DC）12～32V | |
| Typical power consumption | ≤30W | |
| Start | Start-up time | ≤10s |
| Setting time | 20min(Start at dock); 40min(Start at sea) | |
| Environmental | Operating temperature | -15℃～+60℃ |
