Marine Equipment
MFG-III Maintenance-free Marine Fiber-optic Small Size Gyrocompass
it is the first fog gyrocompass,its price is equal to traditional gyrocompass.It is a maintenance-free,small size and complete FOG gyrocompass,and can provide the heading angle and attitudes...
Loading product images...

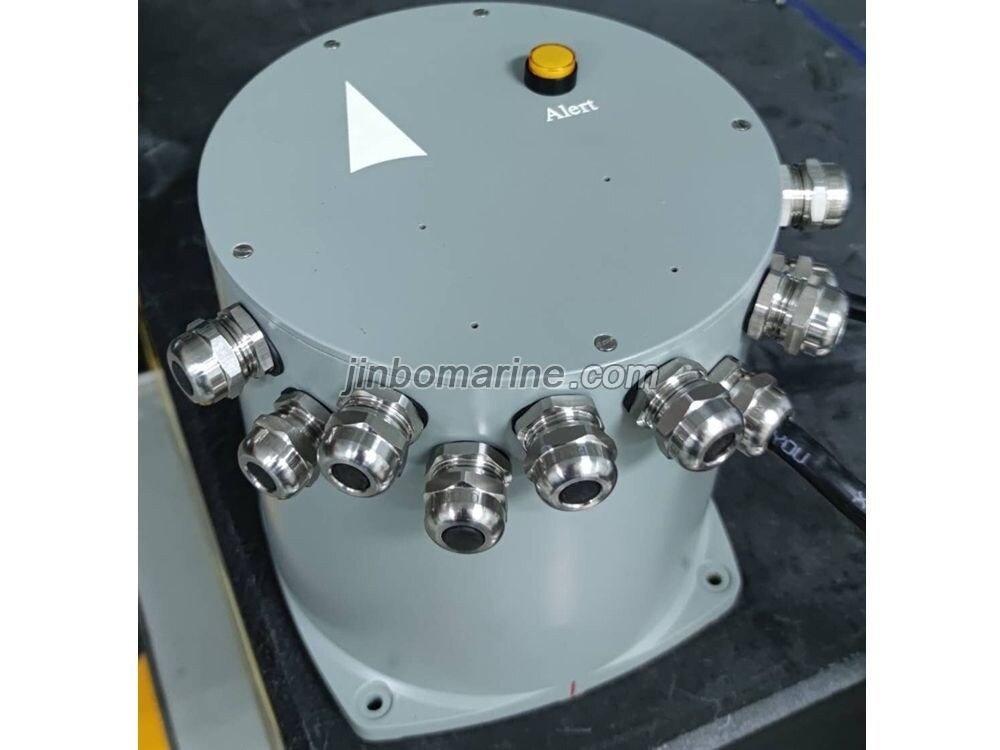

MFG-III Maintenance-free Marine Fiber-optic Small Size Gyrocompass
PDF Datasheet
We can supply according to your requirement.
China MFG-III Maintenance-free Marine Fiber-optic Small Size Gyrocompass:
it is the first fog gyrocompass,its price is equal to traditional gyrocompass.It is a maintenance-free,small size and complete FOG gyrocompass,and can provide the heading angle and attitudes of the ship.
Advantages:
Maintenance-free, don't need to replace the gyros regularly.
Quick north-seeking, automonous north seeking within 30 minutes.
Smart:⌀180mmx190mm and 30W power consumption.
Durable:power off during startup does not affect life and work stably during high speed.
Main Performance:
| Performance | Heading accuracy | 0.5°（RMS，1σ） |
| Attitude accuracy | 0.1°（RMS，1σ） | |
| Interfaces | Output | RS422/CAN(Configurable) |
| Frequency | ≤200Hz(Configurable) | |
| Protocol | NEMA0183 | |
| Input | DVL Support integrated navigation with logs, Beidou ,GPS and GLONASS | |
| Mechanical | Dimensions(Length×width×height) | ⌀180mm×190mm |
| Weight | ＜10kg | |
| Input voltage | DC24V AC220V 50HZ | |
| Typical power consumption | ≤30W | |
| Start | Start-up time | ≤10s |
| Setting time | 30min(Start at dock); 60min(Start at sea) | |
| Environmental | Operating temperature | -10℃～+60℃ |
