MS Mild Steel Seamless Elbow
Product Description: Carbon steel is steel in which the main interstitial alloying constituent is carbon in the range of 0.12–2.0%. Mild and Low carbon steel:(C:≤0.25％),MS...

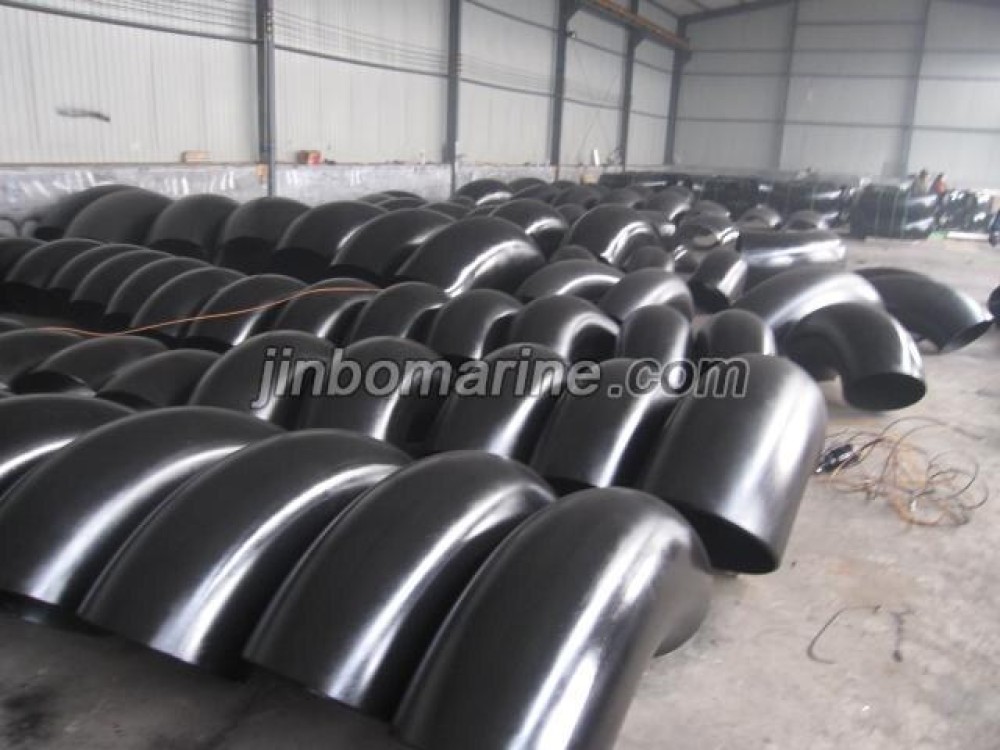

MS Mild Steel Seamless Elbow
PDF Datasheet
We can supply according to your requirement.
Product Description:
Carbon steel is steel in which the main interstitial alloying constituent is carbon in the range of 0.12–2.0%.
Mild and Low carbon steel:(C:≤0.25％),MS Medium carbon steel:(C：0.25％≤C≤0.6％) High-carbon steel(0.6％＜C≤0.99%）Ultra-high-carbon steel(1％＜C≤2%)
As the carbon percentage content rises, steel has the ability to become harder and stronger through heat treating; however it becomes less ductile. In carbon steels, the higher carbon content lowers the melting point.
Mild steel,also called as plain-carbon steel and used when large quantities of steel are needed,for example as structural steel.Low-carbon steel contains approximately 0.05–0.3% carbon making it malleable and ductile.Mild steel has a relatively low tensile strength,but it is cheap and malleable; surface hardness can be increased through carburizing.
A234 WPB MS seamless pipe elbow materal
| Carbon Steel | Chemical composition(%) | ||||||||
| ASTM A234 | C | Mn | P | S | Si | Cr | Mo | Yield Strength [MPa] | Tensile Strength[MPa] |
| WP11 CL1 | 0.05-0.15 | 0.30-0.60 | 0.030 | 0.030 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | 415-585 | 520-690 |
| WP11 CL2 | 0.05-0.20 | 0.30-0.80 | 0.040 | 0.040 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | 205 | 310 |
2" SCH40 seamless eblow Long radius/Short radius
size:2";OD:asme 60.3mm,jis 60.5mm,din 60.3mm;Wall thickness:sch40,3.91mm
Standard:
ASME\ANSI B16.9
Factory-Made Wrought Steel Butt welding Fittings
ASME B16.28
Wrought Steel Butt welding Short Radius Elbows and Returns
