Marine Equipment

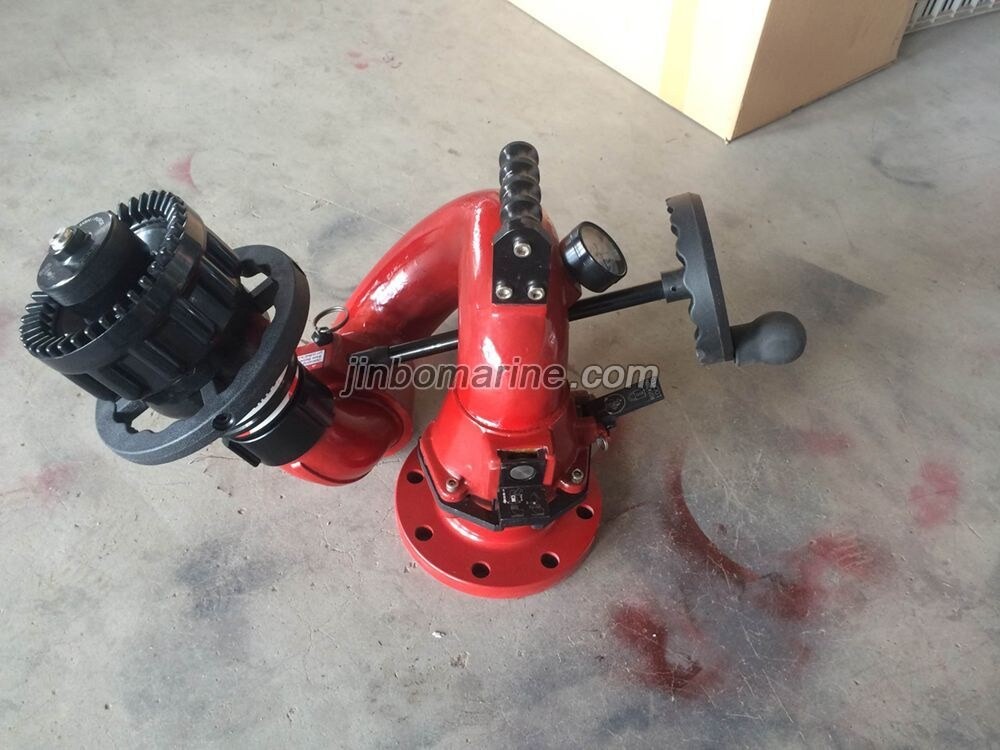

Manual Fire Monitor PS60-80W
Type: PS60-80W Flow Range: 60-70-80 L/S Adjustable Working Pressure: 10 bar Max Reach @ Max Flow: 80m Range of motion: -45°~+90°Vert , 360°Rot Max fog angle ：120° Material (body)：Stain...
Loading product images...
Manual Fire Monitor PS60-80W
PDF Datasheet
We can supply according to your requirement.
China Manual Fire Monitor PS60-80W:
Type: PS60-80W
Flow Range: 60-70-80 L/S Adjustable
Working Pressure: 10 bar
Max Reach @ Max Flow: 80m
Range of motion: -45°~+90°Vert , 360°Rot
Max fog angle ：120°
Material (body)：Stainless Steel
Material (Gear)：bronze
Material (nozzle)：Aluminum
Material (handwheel) ： chromate cast iron
Pump requirement for minimum performance：60L/S@ 8 bar
Pipe dimensions for installation: 4 Inch
Monitor Inlet: DN100 flange
Monitor Outlet：2.5 inch (65mm)
Paint: Fire Red
Weight: 20KG
Flow Range: 60-70-80 L/S Adjustable
Working Pressure: 10 bar
Max Reach @ Max Flow: 80m
Range of motion: -45°~+90°Vert , 360°Rot
Max fog angle ：120°
Material (body)：Stainless Steel
Material (Gear)：bronze
Material (nozzle)：Aluminum
Material (handwheel) ： chromate cast iron
Pump requirement for minimum performance：60L/S@ 8 bar
Pipe dimensions for installation: 4 Inch
Monitor Inlet: DN100 flange
Monitor Outlet：2.5 inch (65mm)
Paint: Fire Red
Weight: 20KG
