MHCS manual hydraulic valve remote control system is a hydraulic control valve device to control
Valve by manual in distance, no need extra power. And, it can be used in any occasions, espe...
Valve Remote Control System1 PhotosISO9001 Supplier

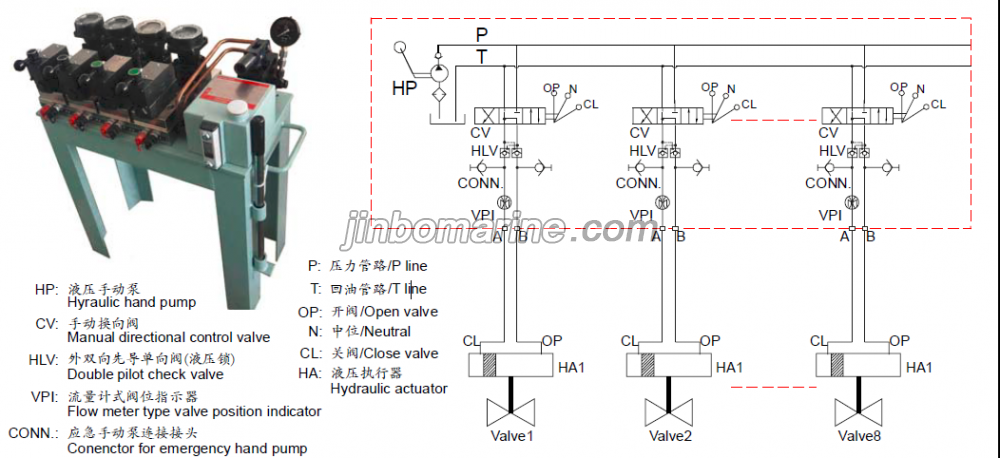

MHCS manual hydraulic valve remote control system is a hydraulic control valve device to control Valve by manual in distance, no need extra power. And, it can be used in any occasions, especially Suitable for hazardous area. Each control channel is with manual directional valve and flow meter. When located the manual Direction valve at open, the mini pump supply hydraulic power to hydraulic actuator in order to make The valve is opened. Meanwhile, the flow meter accurately indicates the valve position, compared with Volumetric principle
Technical Specification
Oil tank capacitor: 2.2 L Pump discharge: 12mL /stroke, 40mL/stroke Working pressure: 6.3-16MPa Oil type: HM32，HM46 Ambient temperature: -25℃ - 65℃ Use the oil temperature: -15℃ - 60℃ Protection class: IP65 (Deck box), IP54 (Standard) Control channel: 2, 3,4,5,6 or more Pipeline diameter: φ10 mm Emergency operation: Quick connector Painting: Client made
