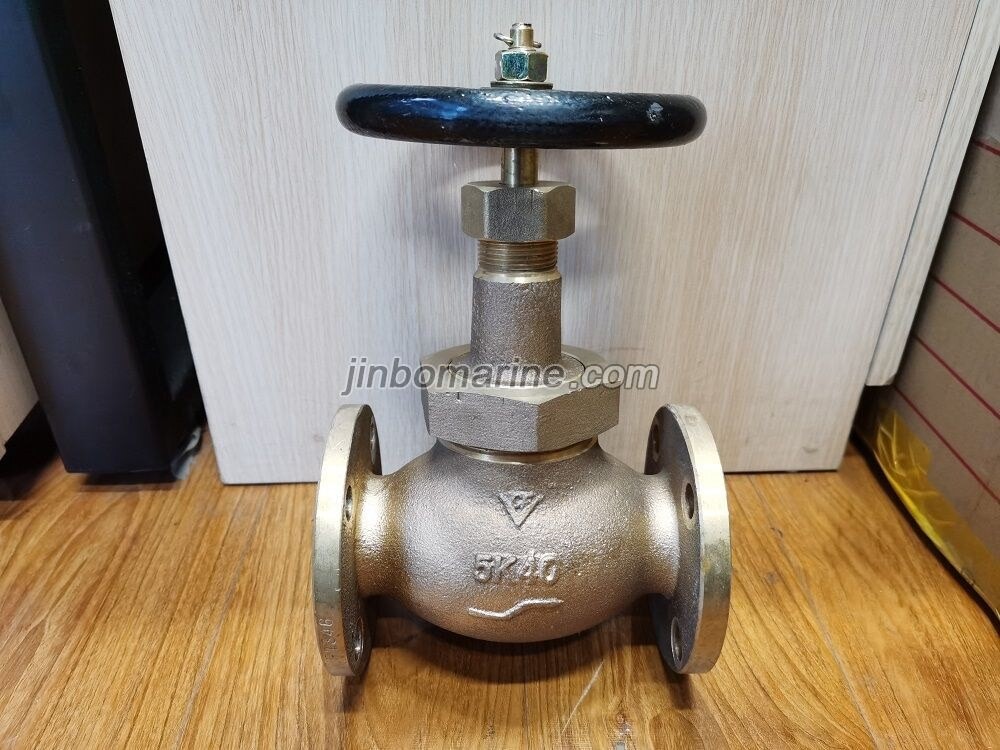

Marine Bronze 5K Globe Valve (Union Bonnet Type) JIS F7346
Marine Bronze Globe Valve (Union Bonnet type) is used on the ship pipe line of steam, fresh water, sea water, fuel oi & lubrication oil. Function: Open/Close the pipe system ...
Loading product images...
-JIS-F7346_1000x750.jpg)
-JIS-F7346_300x225.webp)
Marine Bronze 5K Globe Valve (Union Bonnet Type) JIS F7346
PDF Datasheet
We can supply according to your requirement.
China Marine Bronze 5K Globe Valve (Union Bonnet Type) JIS F7346:
Marine Bronze Globe Valve (Union Bonnet type) is used on the ship pipe line of steam, fresh water, sea water, fuel oi & lubrication oil.
Function: Open/Close the pipe system
Design Standard: JIS F7346-1996
Test Standard: JIS F7400-1996
Test Pressure: Body-1.05Mpa, Seat-0.77Mpa
Flange Size as per JIS B2220-5K
Main Material:
1-Body: Bronze (BC6)/ Brass
2-Disc:Bronze (BC6) / Brass
3-Stem: Brass (C3771BD)
4-Bonnet:Bronze (BC6) /Brass
5-Handwheel: Cast Iron (FC200)

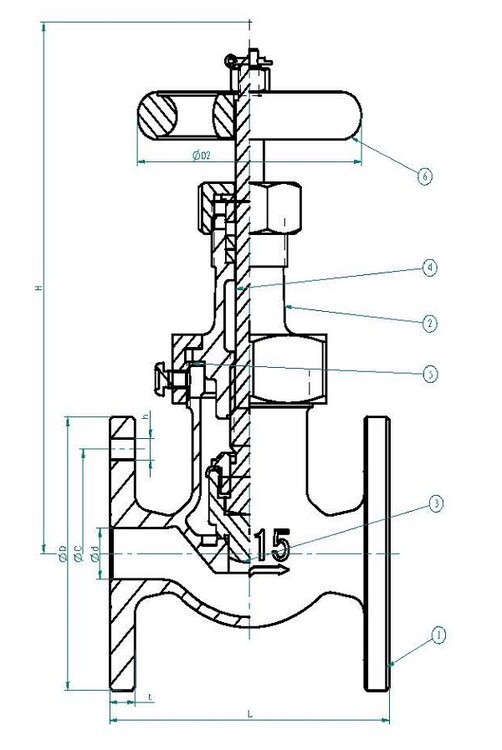

Main Size List(mm):
| Size | Face to Face (L) | Flange diam. (D) | Pitch (C) | No of Bolt Hole | h | t | H | D2 |
| 15 | 100 | 80 | 60 | 4 | 12 | 9 | 130 | 80 |
| 20 | 110 | 85 | 65 | 4 | 12 | 10 | 140 | 100 |
| 25 | 120 | 95 | 75 | 4 | 12 | 10 | 160 | 125 |
| 32 | 140 | 115 | 90 | 4 | 15 | 12 | 170 | 125 |
| 40 | 160 | 120 | 95 | 4 | 15 | 12 | 190 | 140 |
