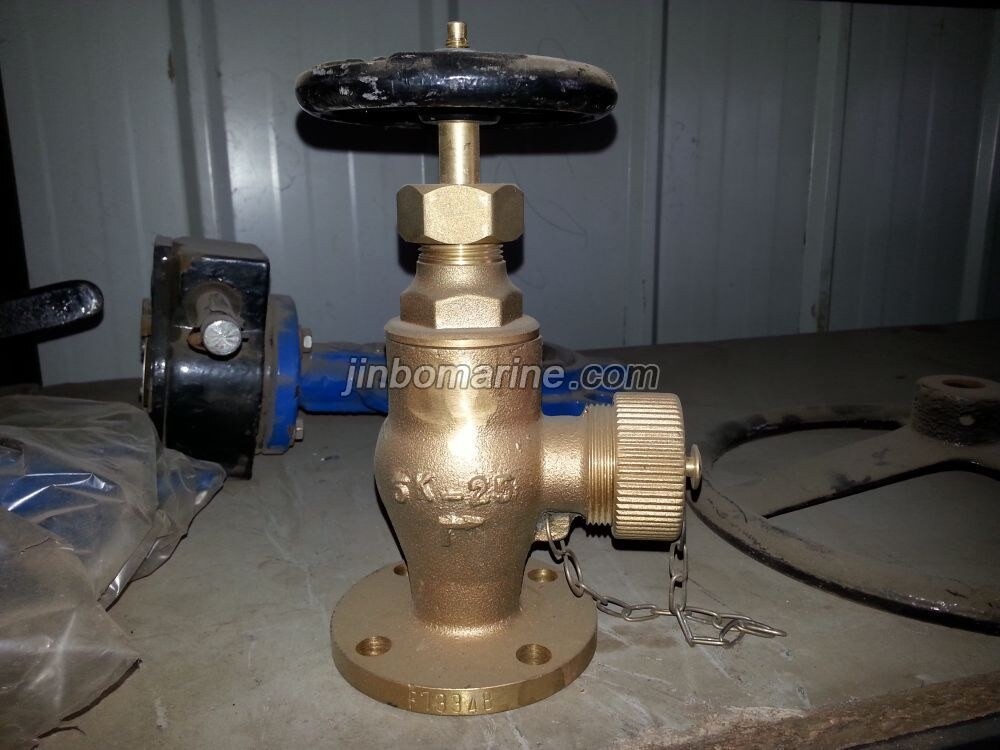

Marine Bronze Angle Hose Valve JIS F7334 5K (DN15-DN25)
PDF Datasheet
We can supply according to your requirement.
China Marine Bronze Angle Hose Valve JIS F7334 5K (DN15-DN25):
Design Standard: JIS F7334-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa
Flange size as per JIS B2220 - 5K
Main Material:
Body: Bronze (BC6)
Disc:Bronze (BC6)
Seat: Bronze (BC6)
Stem: Brass (C3771BD)
Coupling: Brass or Bronze
Bonnet:Bronze (BC6)
Handwheel: Cast Iron (FC200)

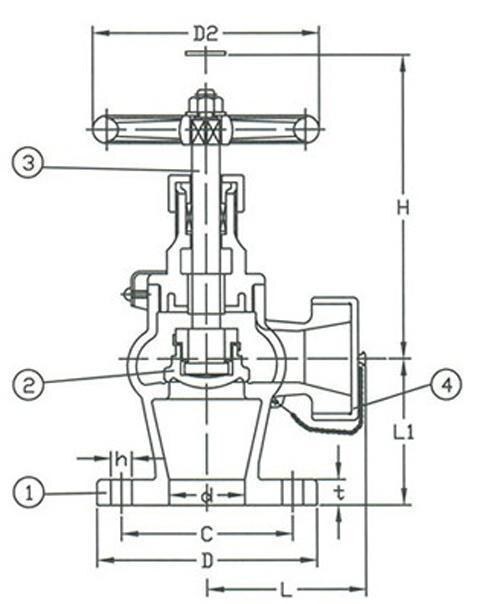

Main Size List(mm):
| IMPA Code | Size | L | L1 | D | C | No of Bolt Hole | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 751706 | 5K15 | 68 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 |
| 751707 | 10K15 | 73 | 70 | 95 | 70 | 4 | 15 | 12 | 120 | 80 |
| 751708 | 5K25 | 78 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 |
| 751709 | 10K25 | 83 | 70 | 125 | 90 | 4 | 19 | 14 | 145 | 125 |
