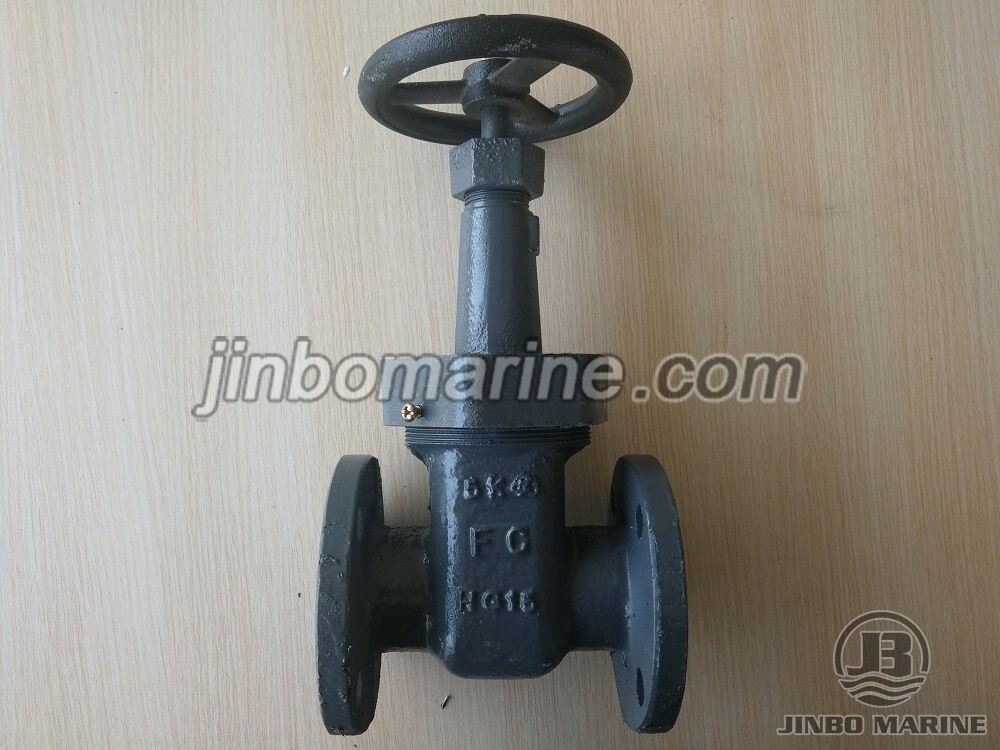

Marine Cast Iron Gate Valve (DN15-DN40)

Marine Cast Iron Gate Valve DN15-DN40 is rising stem type gate valve. Design Standard: JIS F7367-1996 Test Standard: JIS 7400-1996 Hydraulic Test Pressure: Body- 1.05Mpa, S...

JIS Marine Gate Valve1 Photos ISO9001 Supplier

Loading product images...

Marine Cast Iron Gate Valve (DN15-DN40)

Category: JIS Marine Gate Valve

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

China Marine Cast Iron Gate Valve (DN15-DN40):

Marine Cast Iron Gate Valve DN15-DN40 is rising stem type gate valve.

Design Standard: JIS F7367-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.7Mpa

Flange size as per JIS B2220 - 5K

Main Material:

Body: Cast Iron or Nodular Iron

Bonnet: Cast Iron or Nodular Iron

Disc: Cast Iron or Nodular Iron

Stem: Stainless Steel

Gasket: non-asbestos

Main Size List(mm):

Size	L	D	C	No of Bolt Hole	h	t	H	D2
15	90	80	60	4	12	9	175	80
20	100	85	65	4	12	10	200	100
25	110	95	75	4	12	10	220	125
32	130	115	90	4	15	12	250	125
40	140	120	95	4	15	12	290	140
