Marine Cast Iron Sight Glass CB/T422-93 Type J/JS

Marine Sight Glass also can be called as marine liquid observer. Design Standard: CB/T422-93, CBM1124-82 Test Standard: GB600 Flange size as per GB569, GB2501 ...

CB Marine Sight Glass1 Photos ISO9001 Supplier

Loading product images...

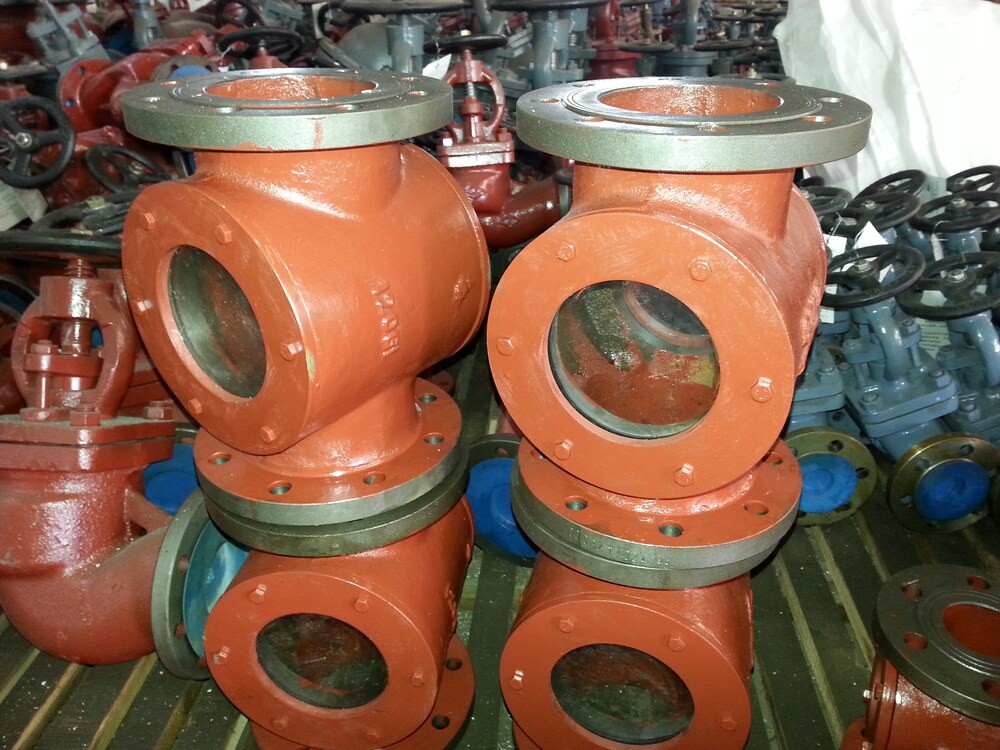

Marine Cast Iron Sight Glass CB/T422-93 Type J/JS

Category: CB Marine Sight Glass

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

China Marine Cast Iron Sight Glass CB/T422-93 Type J/JS:

Marine Sight Glass also can be called as marine liquid observer.

Design Standard: CB/T422-93, CBM1124-82

Test Standard: GB600

Flange size as per GB569, GB2501

Type	Working Pressure (Mpa)	Size (mm)	Suitable Medium	Max working Temperature (℃)
J	0.4	40~50	sea water,fresh water, oil(heavy oil is not included)	120
J	0.25	65~100
JS	0.4	20~50
JS	0.25	65~200
T/TS	0.1	25~200	water, oil in the overflow pipe	70

Main Material:

Body-Cast Iron (HT200)

Transparent Plate-Common Glass or borosilicate glass

Cover-Carbon Steel (Q235A)

Main Size List(mm):

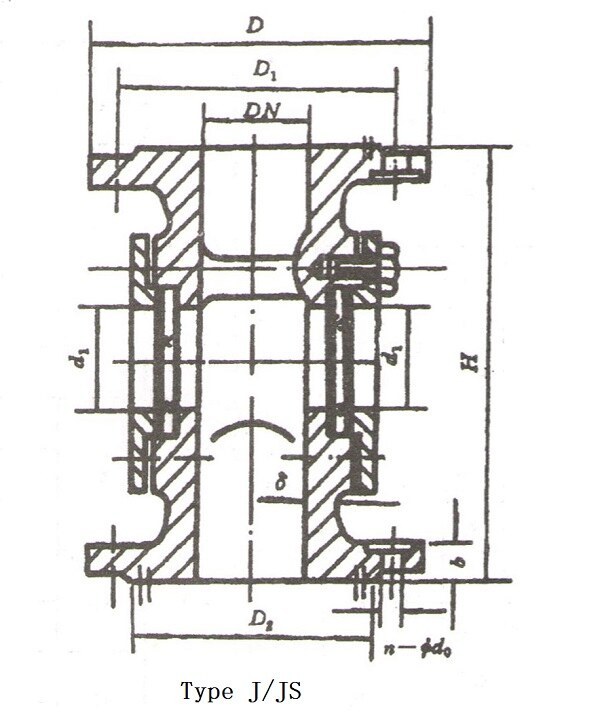

Type J:

Pressure	Size	Structure Dimension		Thickness	Flange					Bolt		Thickness	Weight
Mpa	DN	H	d1	δ	D	D1	D2	d0	b	n	Th	δ	kgs
0.4	40	160	40	8	125	93	74	15	16	6	M14	6	5.6
0.4	50	164	50	8	135	103	84		16			6	6.3
0.25	65	196	65	9	155	123	104		15			8	11.3
	80	220	80	9	170	138	118			8			13.1
	100	250	100	10	190	158	138			8			16.6

Type JS:

Pressure	Size	Structure Dimension		Thickness	Flange					Bolt		Thickness	Weight
Mpa	DN	H	d1	δ	D	D1	D2	d0	b	n	Th	δ	kgs
0.4	20	110	20	7	90	65	50	11	14	4	M10	6	0.95
	25	140	25		100	75	60	11	14		M10		1.43
	32	140	32		120	90	70	14	16		M12		4.64
	40	160	40	8	130	100	80						6.22
	50	264	50	8	140	110	90						6.95
0.25	65	196	65	9	160	130	110					8	12.11
	80	220	80	9	190	150	128	18	18		M16		14.14
	100	250	100	10	210	170	148		18				18.41
	125	280	125	10	240	200	178		20	8		10	25.3
	150	310	150	11	265	225	202		20			10	29.34
	200	370	200	11	320	280	258		22			12	31.25
