Marine Cast Steel Angle Valve JIS F7312 5K

Marine Cast Steel Angle Valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 300 centigrade degree. Desig...

JIS Marine Globe Valve1 Photos ISO9001 Supplier

Loading product images...

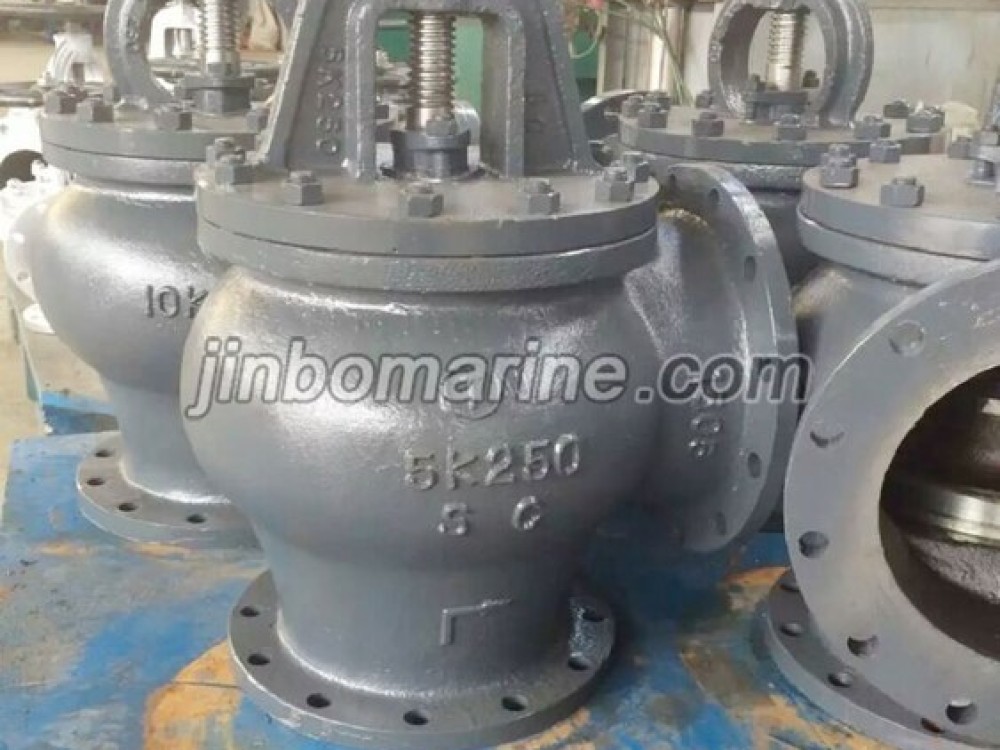

Marine Cast Steel Angle Valve JIS F7312 5K

Category: JIS Marine Globe Valve

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

China Marine Cast Steel Angle Valve JIS F7312 5K:

Marine Cast Steel Angle Valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 300 centigrade degree.

Design Standard: JIS F7312-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa

Flange size as per JIS B2220 - 5K

Main Material:

Body: Cast Steel (SC480)

Bonnet: Cast Steel (SC480)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

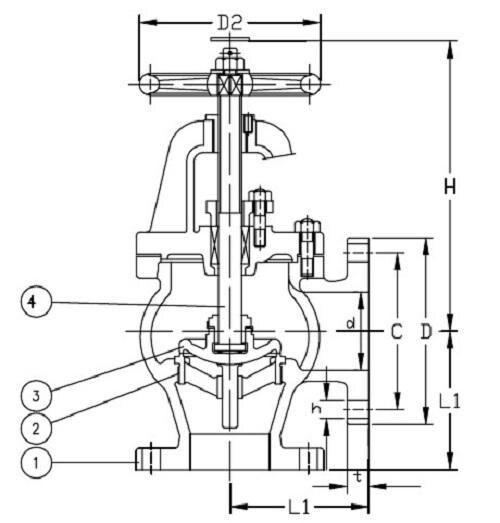

Main Size List(mm):

Size	L1	Flange diam. (D)	Pitch (C)	No of Bolt Hole	h	t	D2	H	Weight
50	100	130	105	4	15	16	160	240	12.9
65	115	155	130	4	15	18	180	255	18.2
80	130	180	145	4	19	18	180	265	23.4
100	150	200	165	8	19	20	224	310	33.7
125	170	235	200	8	19	20	250	330	46.2
150	190	265	230	8	19	22	280	380	63.4
200	220	320	280	8	23	24	315	450	105
250	275	385	345	12	23	26	355	540	176
300	310	430	390	12	23	28	400	610	243
