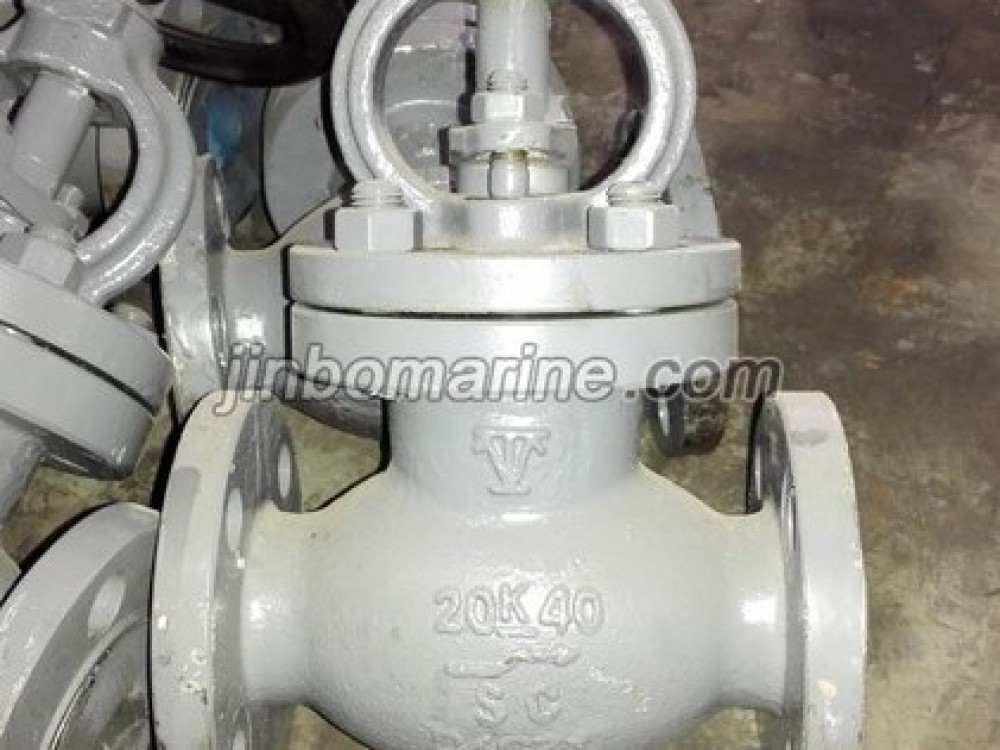

Marine Cast Steel Globe Valve JIS F7313 20K
Design Standard: JIS F7313-1996 Test Standard: JIS 7400-1996 Hydraulic Test Pressure: Body- 5.00Mpa, Seat-3.67Mpa Flange size as per JIS B2220 - 20K Main Mater...
Loading product images...
Marine Cast Steel Globe Valve JIS F7313 20K
PDF Datasheet
We can supply according to your requirement.
China Marine Cast Steel Globe Valve JIS F7313 20K:
Design Standard: JIS F7313-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 5.00Mpa, Seat-3.67Mpa
Flange size as per JIS B2220 - 20K
Main Material:
Body: Cast Steel (SC480)
Bonnet: Cast Steel (SC480)
Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)
Stem: C3771BD (Brass) or SUS403
Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Gasket: non-asbestos

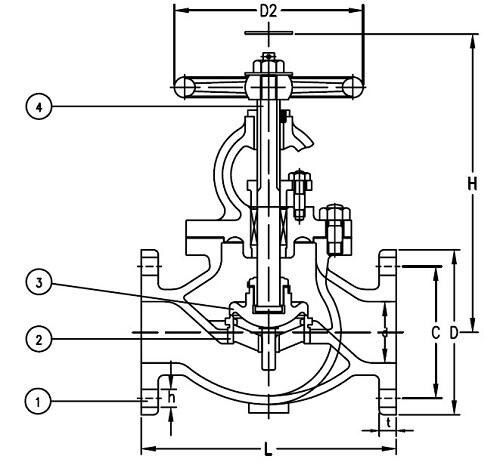

Main Size List(mm):
| IMPA CODE | Size | L | D | C | No of Bolt Hole | h | t | H | D2 | Weight(kgs) |
| 750431 | 32 | 190 | 135 | 100 | 4 | 19 | 18 | 270 | 160 | 14.4 |
| 750432 | 40 | 200 | 140 | 105 | 4 | 19 | 18 | 190 | 160 | 16 |
| 750433 | 50 | 230 | 155 | 120 | 8 | 19 | 18 | 305 | 200 | 21.6 |
| 750434 | 65 | 270 | 175 | 140 | 8 | 19 | 20 | 345 | 224 | 30.4 |
| 750435 | 80 | 300 | 200 | 160 | 8 | 23 | 22 | 385 | 250 | 43.5 |
| 750436 | 100 | 350 | 225 | 182 | 8 | 23 | 24 | 440 | 280 | 62.3 |
| 750437 | 125 | 430 | 270 | 225 | 8 | 25 | 26 | 500 | 315 | 94.8 |
| 750438 | 150 | 500 | 305 | 260 | 12 | 25 | 28 | 550 | 355 | 132 |
| 750439 | 200 | 560 | 350 | 305 | 12 | 25 | 30 | 630 | 450 | 204 |
| 750440 | 250 | 660 | 430 | 380 | 12 | 27 | 34 | 725 | 560 | 336 |
