Marine Cast Steel Screw Down Check Globe Valve JIS F7311C 5K
Marine Cast Steel Screw Down Check Globe Valve also can be called as Marine Cast Steel SDNR Valve or SDNR Globe Valve. It is suitable for the pipe system with the medium fresh water, air &am...

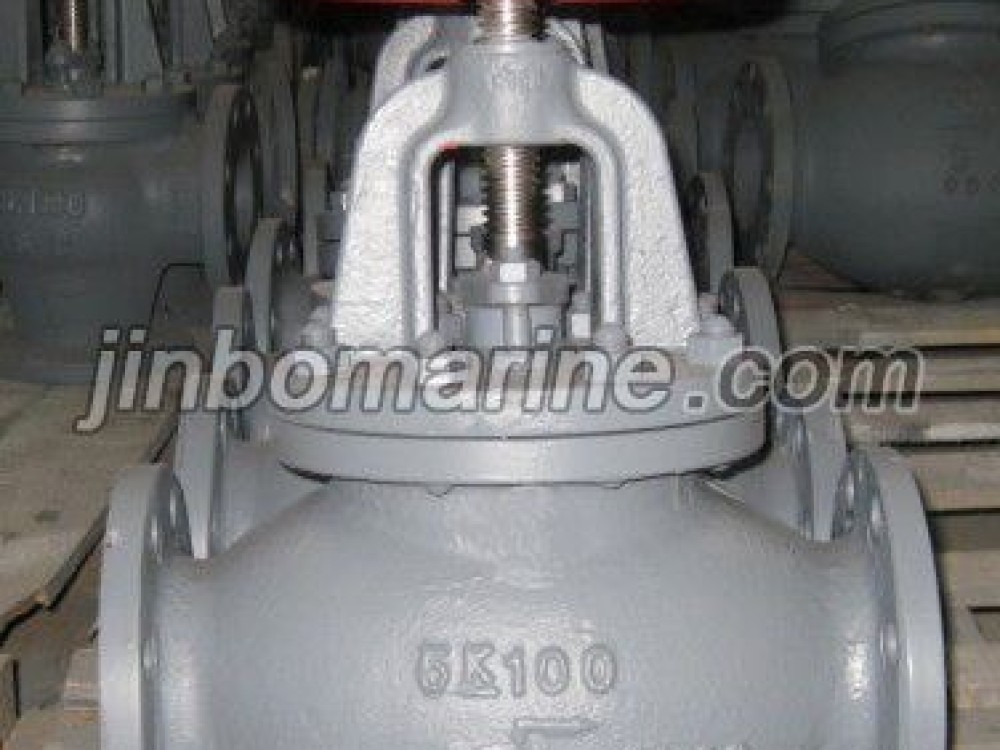

Marine Cast Steel Screw Down Check Globe Valve JIS F7311C 5K
PDF Datasheet
We can supply according to your requirement.
China Marine Cast Steel Screw Down Check Globe Valve JIS F7311C 5K:
Marine Cast Steel Screw Down Check Globe Valve also can be called as Marine Cast Steel SDNR Valve or SDNR Globe Valve. It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 300 centigrade degree.
Design Standard: JIS F7311C-1996Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa
Flange size as per JIS B2220 - 5K
* The standard one is without indicator, if the customer needs the indicator for the SDNR Valve, pls state when inquiry or order.
Main Material:
Body: Cast Steel (SC480)
Bonnet: Cast Steel (SC480)
Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)
Stem: C3771BD (Brass) or SUS403
Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Gasket: non-asbestos

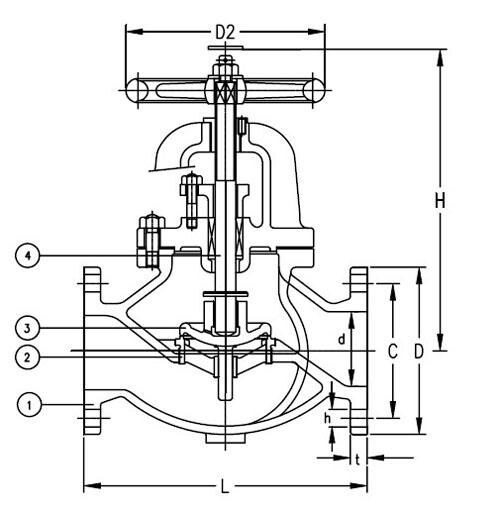

Main Size List(mm):
| Size | L | Flange diam. (D) | Pitch (C) | No of Bolt Hole | h | t | H | D2 | Weight |
| 50 | 210 | 130 | 105 | 4 | 15 | 16 | 270 | 160 | 14.8 |
| 65 | 250 | 155 | 130 | 4 | 15 | 18 | 300 | 180 | 21.3 |
| 80 | 280 | 180 | 145 | 4 | 19 | 18 | 310 | 180 | 27.6 |
| 100 | 340 | 200 | 165 | 8 | 19 | 20 | 360 | 224 | 40.4 |
| 125 | 410 | 235 | 200 | 8 | 19 | 20 | 390 | 250 | 57.9 |
| 150 | 480 | 265 | 230 | 8 | 19 | 22 | 445 | 280 | 80.9 |
| 200 | 570 | 320 | 280 | 8 | 23 | 24 | 530 | 315 | 139 |
| 250 | 740 | 385 | 345 | 12 | 23 | 26 | 650 | 355 | 243 |
| 300 | 840 | 430 | 390 | 12 | 23 | 28 | 740 | 400 | 320 |
