Marine Copper Fixed Window
PDF Datasheet
We can supply according to your requirement.

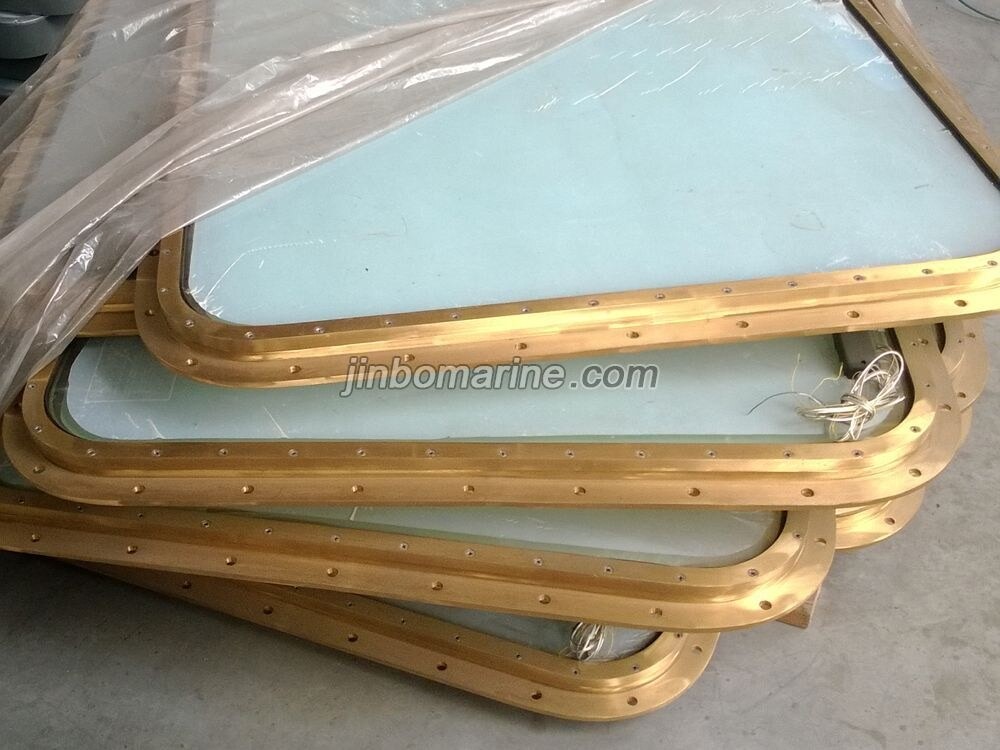

Marine Copper Non Opening Window:
Standard: GB/T5746-2001, ISO3903-1993
It is the ship’s ordinary window, used on the supperstructure above freeboard deck or deck house of marine ships and naval ships and in the relative spaces of marine structure. It can be used as windows of inland ships. This product meets the regulations of SOLAS.
It is installed on the deck with the bolts.
The glass can be electrically heated glass.

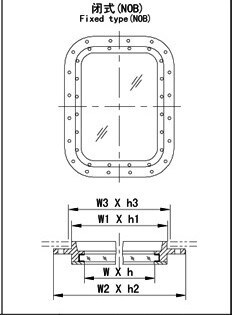

Main Size List(mm):
| Nominal Size | Opening Size | Frame | ||
| wxh | W1xh1 | r | W2xh2 | W3xh3 |
| 300x425 | 352x477 | 76 | 348x473 | 430x555 |
| 355x500 | 407x552 | 76 | 403x548 | 485x630 |
| 400x560 | 452x612 | 76 | 448x608 | 530x690 |
| 450x630 | 502x682 | 126 | 498x678 | 580x760 |
| 500x710 | 552x762 | 126 | 548x758 | 630x840 |
| 560x800 | 612x852 | 126 | 608x848 | 690x930 |
| 900x630 | 952x682 | 126 | 948x678 | 1030x760 |
| 1000x710 | 1052x762 | 126 | 1048x758 | 1130x840 |
| 1100x800 | 1152x852 | 126 | 1148x848 | 1230x930 |
