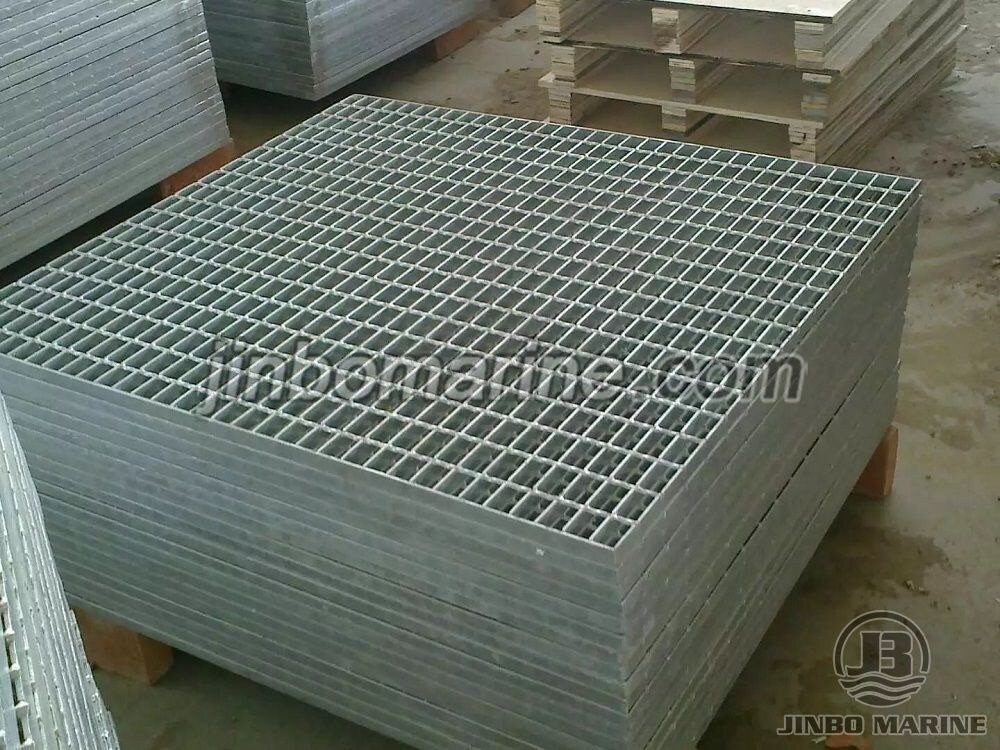

Marine Grille
Marine steel grid is specially designed for shipbuilding industry. Due to the bad working conditions of the ship, the ship is subject to the chemical corrosion, electrochemical corrosion and...
PDF Datasheet
China Marine Grille:
Marine steel grid is specially designed for shipbuilding industry. Due to the bad working conditions of the ship, the ship is subject to the chemical corrosion, electrochemical corrosion and the corrosion of sea life and microorganisms. The products are used in all kinds of ships, such as port, deck channel, warehouse platform, chimney platform, cab platform, etc
Specification:
Standard: CB/T608-1998
Material: Steel with Galvanization
Model:
AG---Steel Grille
AB---Stainless Steel Grille
BG---I Plastic-steel Grille (only used on the area without fireproof requirement)
BF---Square Plastic Steel Grille (only used on the area without fireproof requirement)

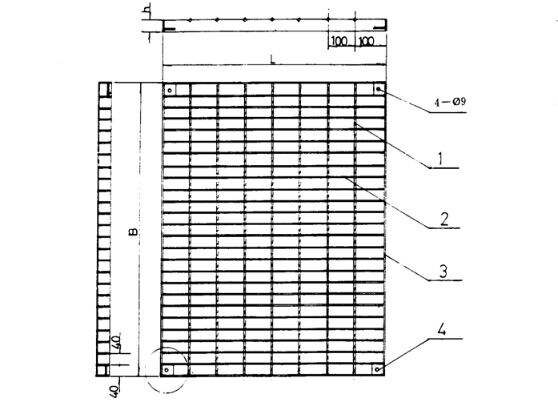

Main Size for Model AG, AB:
| hxt | B | L | |||
| 500 | 600 | 700 | 800 | ||
| Weight(kg) | |||||
| 32x3 | 1000 | 13.99 | 16.23 | 18.47 | 20.71 |
| 40x3 | 1000 | 17.07 | 19.8 | 22.52 | 25.25 |
| 50x5 | 1000 | 31.12 | 36.59 | 41.88 | 47.27 |
