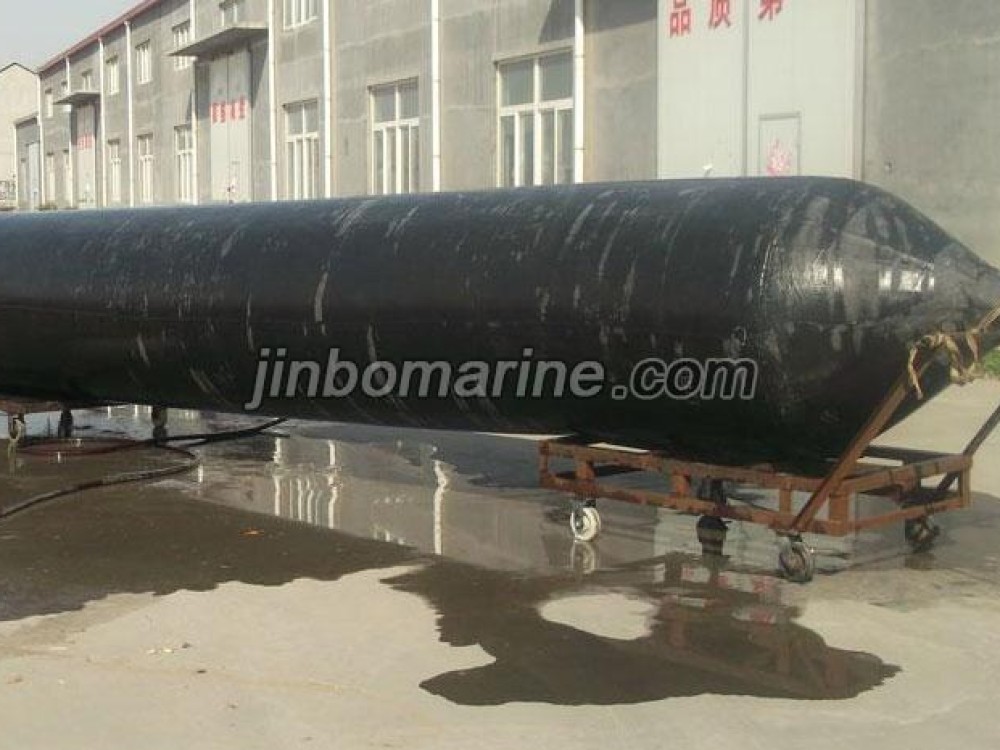

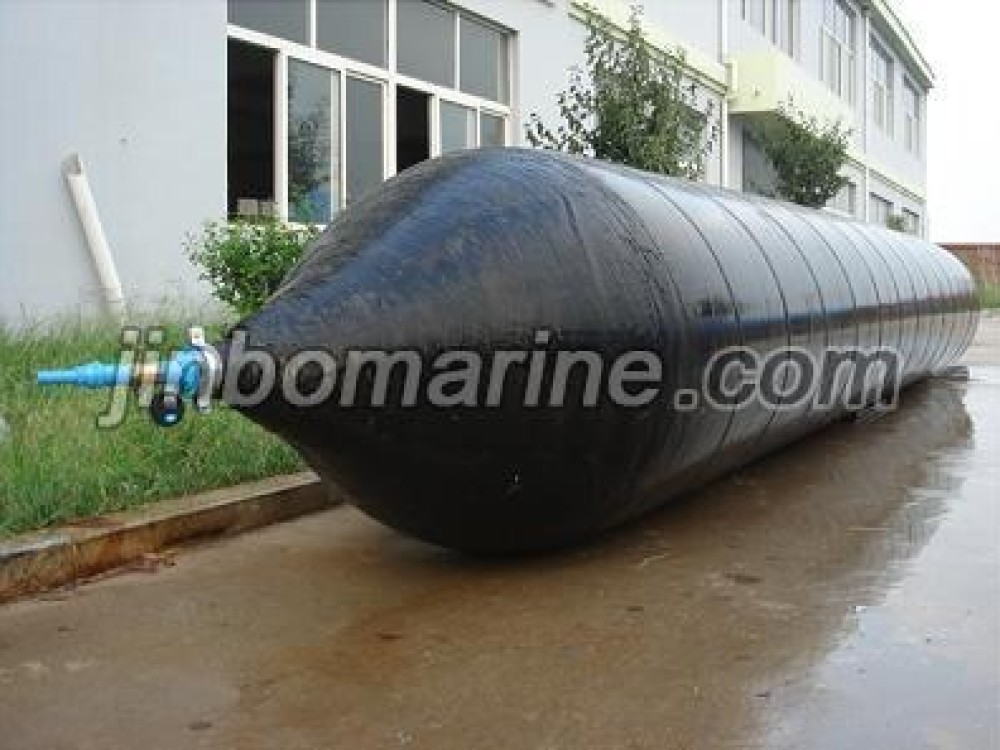

Marine Launching Airbag
Product Description 1.Can be deliver in various sizes. 2.All rubber airbags conform to the latest ISO17357-2002 directives 3.Any kind of fittings can be supplied. Oth...
PDF Datasheet
Product Description
1.Can be deliver in various sizes.
2.All rubber airbags conform to the latest ISO17357-2002 directives
3.Any kind of fittings can be supplied.
Other applications of the marine airbag technology
1. Airbag for ship upgrading, conversion or new/repair launching (Ship launching airbags)
2. Airbag for hoisting and transporting heavy goods up to 10,000 tonnes structure
3. Marine pneumatic rubber fender for protective purposes
4. Marine airbag for salvaging sunken ship or heavy immersed steel structure weighing up to few thousand tonnes
5. Pneumatic rubber core for architecture engineering
6. Container for storing and transporting gas and corrosive chemical liquid and pure water for voyage
7. Rubber bag for ship ballast
8. Airbag for erecting floating bridge or pipeline
Size Chart
| D | P | H | W | P | H | W | Main Use | |
| (m) | (Mpa) | (m) | (t/m) | (Mpa) | (m) | (t/m) | ||
| Medium Pressure Air-bag | 0.8 | 0.13 | 0.2 | 12 | 0.11 | 0.4 | 7 | Suit small and mediumsized ships launching and shifting |
| 1 | 0.1 | 0.2 | 12.5 | 0.09 | 0.5 | 7 | ||
| 1.2 | 0.09 | 0.2 | 14 | 0.08 | 0.6 | 7.5 | ||
| 1.5 | 0.08 | 0.2 | 16.5 | 0.06 | 0.7 | 7.5 | ||
| 1.8 | 0.07 | 0.2 | 18 | 0.05 | 0.8 | 8 | ||
| 2 | 0.07 | 0.2 | 20 | 0.05 | 0.9 | 8.5 | ||
| High Pressure Air-bag | 0.8 | 0.26 | 0.2 | 24 | 0.22 | 0.4 | 14 | Suit large-scsle ship launching and heavy goods shifting |
| 1 | 0.2 | 0.2 | 25 | 0.18 | 0.5 | 14 | ||
| 1.2 | 0.18 | 0.2 | 28 | 0.16 | 0.6 | 15 | ||
| 1.5 | 0.16 | 0.2 | 33 | 0.12 | 0.7 | 15 | ||
| 1.8 | 0.14 | 0.2 | 36 | 0.1 | 0.8 | 16 | ||
| 2 | 0.14 | 0.2 | 40 | 0.1 | 0.9 | 17 |
