Marine Male Thread Angle Steam Safety Valve CB3192-83
Marine Male Thread Angle Steam Safety Valve is used on the steam pipe system with the temperature not over 190 degree centigrade. Design Standard: CB3192-83 Thread size as per GB...
Loading product images...

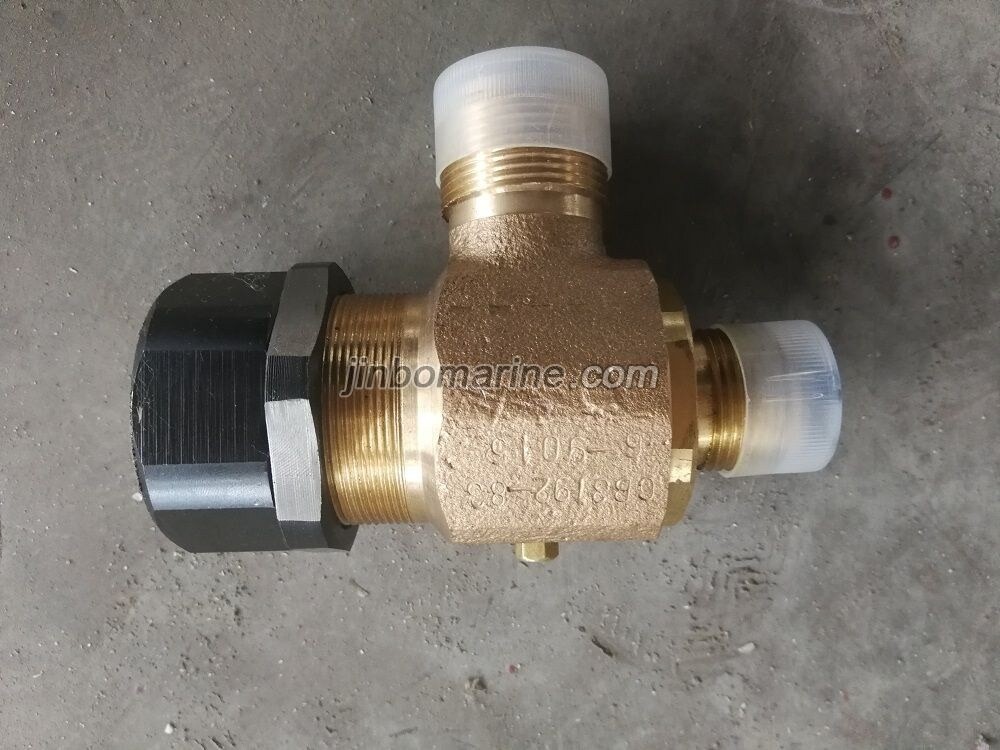

Marine Male Thread Angle Steam Safety Valve CB3192-83
PDF Datasheet
We can supply according to your requirement.
China Marine Male Thread Angle Steam Safety Valve CB3192-83:
Marine Male Thread Angle Steam Safety Valve is used on the steam pipe system with the temperature not over 190 degree centigrade.
Design Standard: CB3192-83
Thread size as per GB821-75
Test standard:GB600 & CB3021
| Nominal Size(mm) | Nominal Pressure kgf/cm2 (Mpa) |
| 10 | 1-2.5 (0.098-0.245) |
| >2.5-6 (0245-0.588) | |
| >6-12 (0.588-1.176) | |
| 15 | 1-2.5 (0.098-0.245) |
| >2.5-6 (0245-0.588) | |
| >6-9 (0.588-0.882) | |
| >9-12 (0.882-1.176) |
Main Parts & Main Material:
Seat-Stainless Steel (2Cr13)
Disc-Stainless Steel (2Cr13)
Adjustable Ring-Manganese Brass (HMn58-2)
Body-WCB (#35)
Spring-Spring Steel (50CrVA)

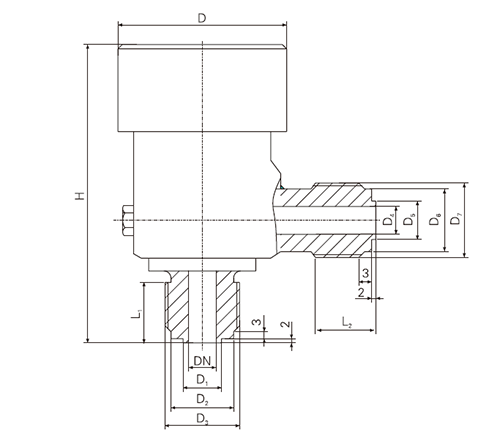

Main Size List(mm):
| nominal pressure | nominal diameter | DN | connection dimension | structure dimension | weight (kg) | |||||||||||
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | L1 | L2 | D8 | L3 | H | H1 | ||||
| 0.1~0.25 | 10 | 8 | 13 | 19.8 | M22×1.5 | 15 | 19 | 27 | M30×2 | 19 | 22 | 55 | 63 | 47 | 120 | 1.47 |
| >0.25~0.6 | 10 | 8 | 13 | 19.8 | M22×1.5 | 15 | 19 | 27 | M30×2 | 19 | 22 | 55 | 63 | 47 | 120 | 1.57 |
| >0.6~1.2 | 10 | 8 | 13 | 19.8 | M22×1.5 | 15 | 19 | 27 | M30×2 | 19 | 22 | 55 | 63 | 47 | 120 | 1.47 |
| 0.1~0.25 | 15 | 10 | 19 | 27 | M30×2 | 20 | 24 | 33 | M36×2 | 25 | 22 | 68 | 67 | 56 | 132 | 1.90 |
| >0.25~0.6 | 15 | 10 | 19 | 27 | M30×2 | 20 | 24 | 33 | M36×2 | 25 | 22 | 68 | 67 | 56 | 132 | 1.91 |
| >0.6~0.9 | 15 | 10 | 19 | 27 | M30×2 | 20 | 24 | 33 | M36×2 | 25 | 22 | 68 | 67 | 56 | 132 | 1.92 |
| >0.9~1.2 | 15 | 10 | 19 | 27 | M30×2 | 20 | 24 | 33 | M36×2 | 25 | 22 | 68 | 67 | 56 | 132 | 1.93 |
