Marine Manual Reversing Proportional Speed Control Valve 35SFRE
Introduction:
The 35SFRE marine manual reversing proportional speed control valve is a three-position five-way valve equipped with a compensating valve with a bypass d...
The 35SFRE marine manual reversing proportional speed control valve is a three-position five-way valve equipped with a compensating valve with a bypass device. The pressure compensating valve can suppress load impact, keep the system flow from fluctuating due to pressure fluctuations, and provide stable power ; Adopting bypass device can avoid commutation shock, has high response characteristics, and is suitable for load shock occasions. Since the compensation valve is partly cast with the main valve, the 35SERE S series valve has good reversing and speed regulation performance, long service life, reliable capacity, and easy operation and management. It is widely used in marine machinery and other mechanical hydraulic systems.

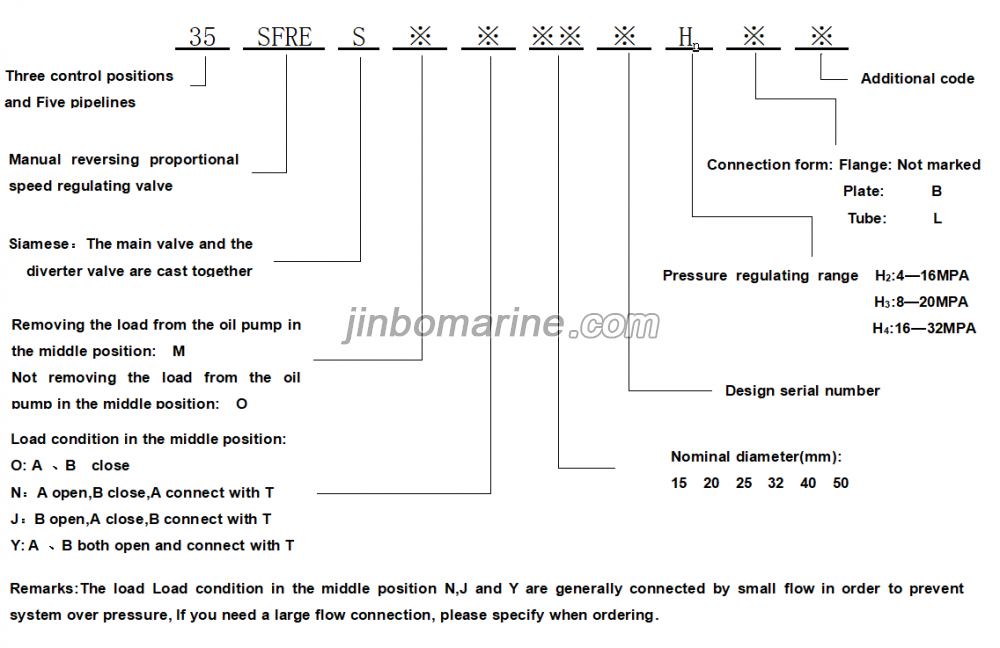

Model Description

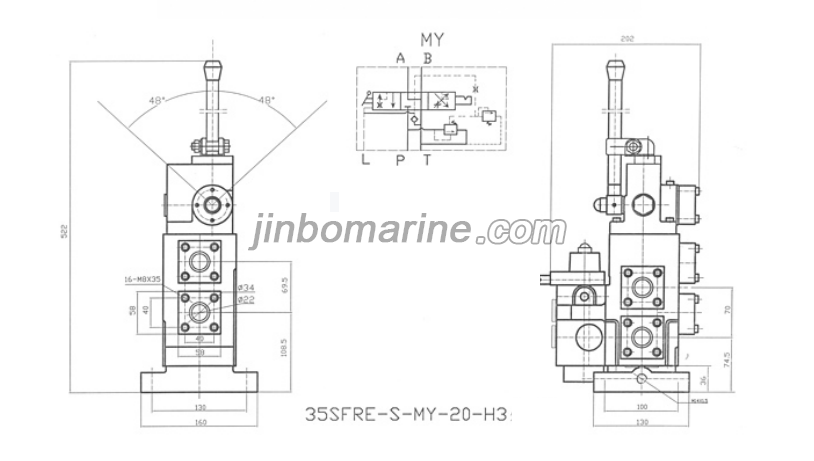

35SFRE-S-MY-20-H3
Shape and connection dimension and the Function symbol:
Technical Parameters：8~21MP,Flow:100L/min

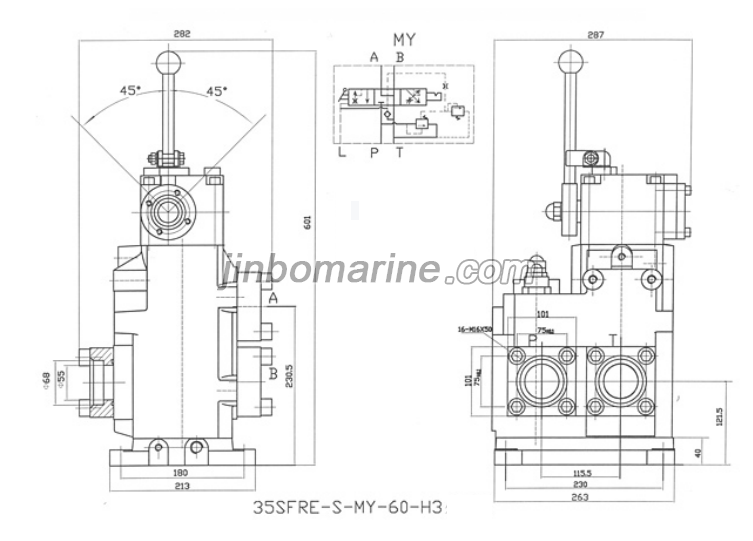

35SFRE-S-MY-60-H3
Shape and connection dimension and the Function symbol:
