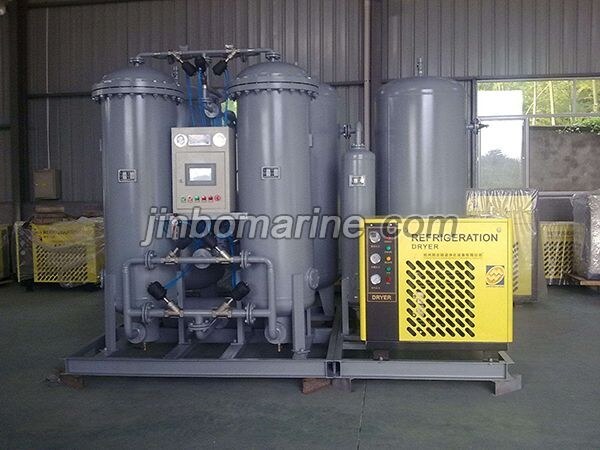

Marine PSA Nitrogen Generator Purity 98%
Equipment features 1. Nitrogen production is convenient and quick: Advanced technology, unique air distributor, so that the distribution of airflow more evenly, efficient use o...
Marine PSA Nitrogen Generator Purity 98%
PDF Datasheet
We can supply according to your requirement.
Equipment features
1. Nitrogen production is convenient and quick:
Advanced technology, unique air distributor, so that the distribution of airflow more evenly, efficient use of carbon molecular sieve, 20 minutes or so to provide qualified nitrogen.
2. Easy to use:
The utility model has the advantages of compact structure, integral skid, small occupation area, no capital construction investment and little investment, and the nitrogen can be obtained only by connecting the power supply on the spot.
3. More economical:
PSA process is a simple method of nitrogen production. With air as the raw material, the energy consumption is only the energy consumed by the air compressor. It has the advantages of low operating cost, low energy consumption and high efficiency.
4. Mechanical and electrical integration design to achieve automatic operation:
Imported PLC control, fully automatic operation, nitrogen flow, pressure, purity, adjustable and continuous display, can be unattended.
Marine PSA Nitrogen Generator Purity 98% Main Specification
| Model | Output (m3/h) | Gas consumption(m3/h) | Air inlet(DN mm) | N2 inlet(DN mm) |
| JBN10-98 | 10 | 28 | 15 | 15 |
| JBN20-98 | 20 | 56 | 15 | 15 |
| JBN30-98 | 30 | 84 | 25 | 15 |
| JBN50-98 | 50 | 140 | 25 | 20 |
| JBN80-98 | 80 | 224 | 32 | 25 |
| JBN100-98 | 100 | 280 | 32 | 25 |
| JBN120-98 | 120 | 336 | 40 | 25 |
| JBN150-98 | 150 | 420 | 50 | 32 |
| JBN200-98 | 200 | 560 | 50 | 32 |
| JBN250-98 | 250 | 700 | 50 | 32 |
| JBN300-98 | 300 | 840 | 65 | 40 |
| JBN400-98 | 400 | 1120 | 65 | 40 |
| JBN500-98 | 500 | 1400 | 80 | 50 |
| JBN600-98 | 600 | 1680 | 80 | 50 |
| JBN800-98 | 800 | 2240 | 100 | 65 |
| JBN1000-98 | 1000 | 2800 | 100 | 80 |
| JBN1500-98 | 1500 | 4200 | 125 | 80 |
| JBN2000-98 | 2000 | 5600 | 150 | 100 |
| JBN2500-98 | 2500 | 7000 | 150 | 100 |
| JBN3000-98 | 3000 | 8400 | 200 | 125 |
