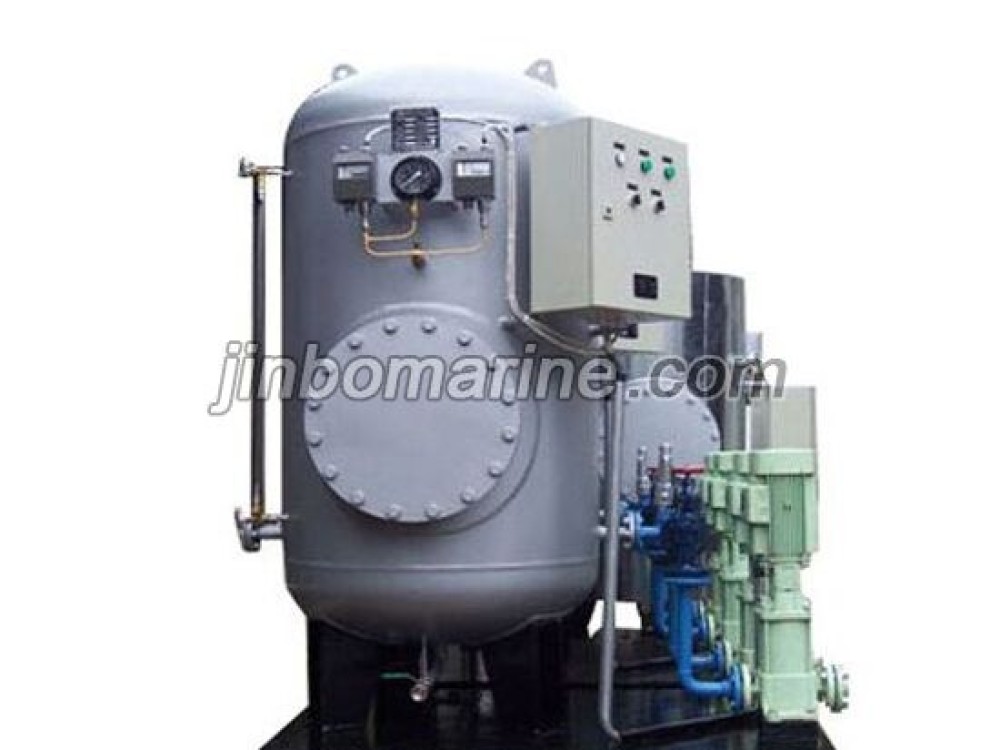

Marine Pressure Hydrophore Tank
Technical Specification: Design pressure: 0.6MPa working pressure: 0.5MPa working medium:fresh water volume:1.0m³ structural testing: 0.9MPa d...
Marine Pressure Hydrophore Tank
PDF Datasheet
We can supply according to your requirement.
Technical Specification:
Design pressure: 0.6MPa
working pressure: 0.5MPa
working medium:fresh water
volume:1.0m³
structural testing: 0.9MPa
dense experiment: 0.75MPa (There is no leakage)
Inside and outside superficial stain removal, The internal surface coates non-toxic white drinking water tank primer and finish 2 degree; Outside surface paint Fuxin primer 2 degrees, coating blue enamel paint 2 degrees.
The standard of the flange:ANSI B 16.5,RF#150.
SS304 piping&fitting;IP44 min.

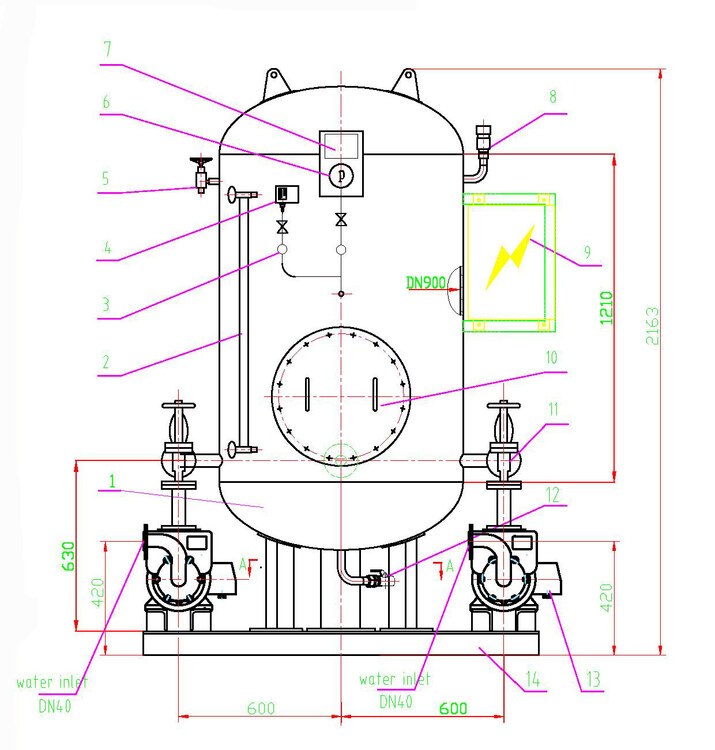

General Drawing:
| No. | Model | Spares Description | Qty. (pc) | Remarks |
| 1 | Main body δ6 | 1 | Q235B | |
| 2 | ULG-940H/A | Liquidometer | 1 | Assembly |
| 3 | nstrument valve | 2 | Assembly | |
| 4 | KP35 | Pressure controller | 1 | Assembly |
| 5 | B40010 GB596 | Stop-check valve | 1 | copper |
| 6 | YC-100T | Pressure gauge | 1 | Assembly |
| 7 | Nameplate | 1 | stainless steel | |
| 8 | A21F-16P | Safety valve | 1 | Assembly |
| 9 | Electric control box | 1 | Assembly | |
| 10 | DN400 | Manhole cover | 1 | Assembly |
| 11 | B16040 GB591-93 | Stop-check valve | 2 | Assembly |
| 12 | DN20 | Ball valve | 1 | stainless steel |
| 13 | 1.5CWX-3G | Water pump | 2 | cast iron |
| 14 | Base | 1 | Q235A |
