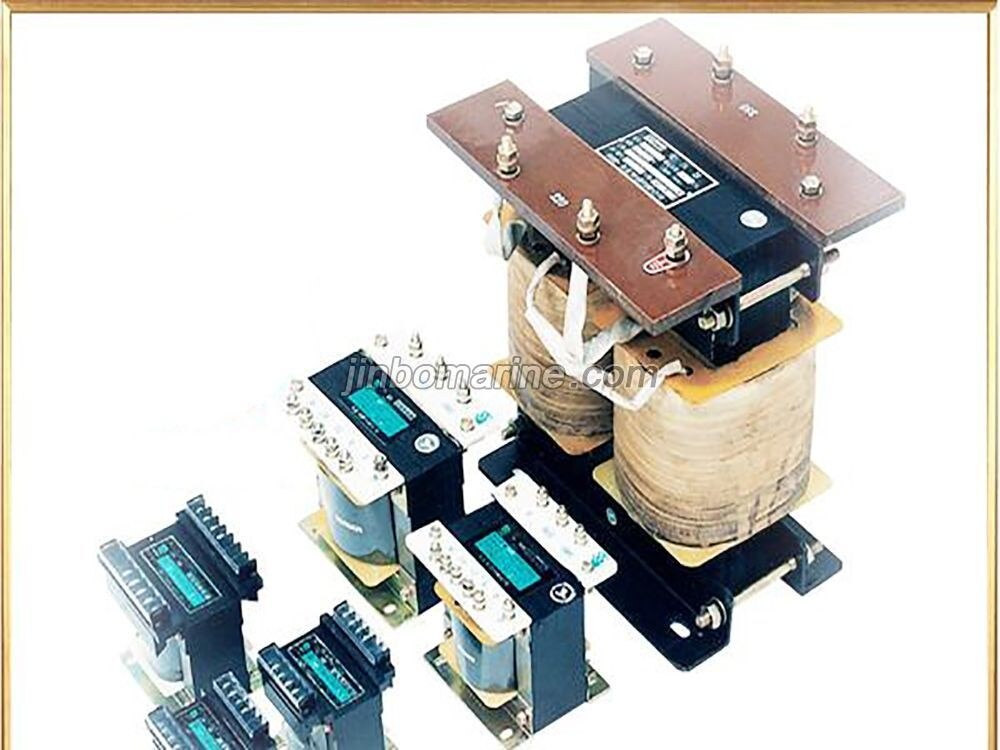

Marine Transformer CXK
The CXK marine transformer is suitable for lighting, control and isolation power. It adopts the shell or heart structure is compact, fastening, good heat dissipation effect, strong load c...
Loading product images...
PDF Datasheet
China Marine Transformer CXK:
The CXK marine transformer is suitable for lighting, control and isolation power. It adopts the shell or heart structure is compact, fastening, good heat dissipation effect, strong load capacity, etc. It can provide with the shell (IP22, IP23) and without shell structure
1. According to standard: JB/T 5555-2013, CB/T 4388-2013, GJB 621-99, and GB/T 22194-2008.
2. The rated capacity: 15 VA - 15 KVA.
3. The rated voltage: 690 v, 440 v, 400 v, 380 v, 230 v, 220 v, 127 v, 36 v, 24 v, etc.
4. Rated frequency: 50 HZ or 60 HZ.
Marine Transformer CXK Technical Specifications
| Type | Capacity (kVA) | No-load loss(W) | Load current(%) | No-load current(%) | Short circuit impedance (%) | Weight(kg) |
| CXK-25 | 25 | 1 | 3 | 50 | 12 | 1 |
| CXK-50 | 50 | 2 | 5 | 40 | 10 | 1.4 |
| CXK-100 | 100 | 3 | 10 | 40 | 10 | 2 |
| CXK-150 | 150 | 4 | 13.5 | 25 | 9 | 3.6 |
| CXK-200 | 200 | 5 | 15 | 22 | 7.5 | 4.6 |
| CXK-250 | 250 | 6 | 18 | 22 | 7.2 | 4.6 |
| CXK-300 | 300 | 7 | 20 | 30 | 6.7 | 6.2 |
| CXK-400 | 400 | 8 | 24 | 25 | 6 | 7.7 |
| CXK-500 | 500 | 16 | 25 | 18 | 3 | 9.6 |
| CXK-630 | 600 | 18 | 29 | 17 | 3 | 9.6 |
| CXK-800 | 750 | 20 | 32 | 16 | 3 | 9.6 |
| CXK-1000 | 1000 | 22 | 45 | 16 | 3 | 11 |
| CXK-1500 | 1500 | 31 | 48 | 15 | 3 | 15 |
| CXK-2000 | 2000 | 40 | 65 | 14 | 3 | 20 |
| CXK-2500 | 2500 | 48 | 70 | 11 | 3 | 24 |
| CXK-3000 | 3000 | 55 | 75 | 12 | 3 | 27 |
| CXK-4000 | 4000 | 65 | 95 | 11 | 3 | 42 |
| CXK-5000 | 5000 | 80 | 125 | 10 | 3 | 47 |
