Introduction:
The
CSBF manual compound valve is three tubing crosses cross valve integrated with
a safety valve and a diverter valve. The valve has the pressure compensation,
curre...

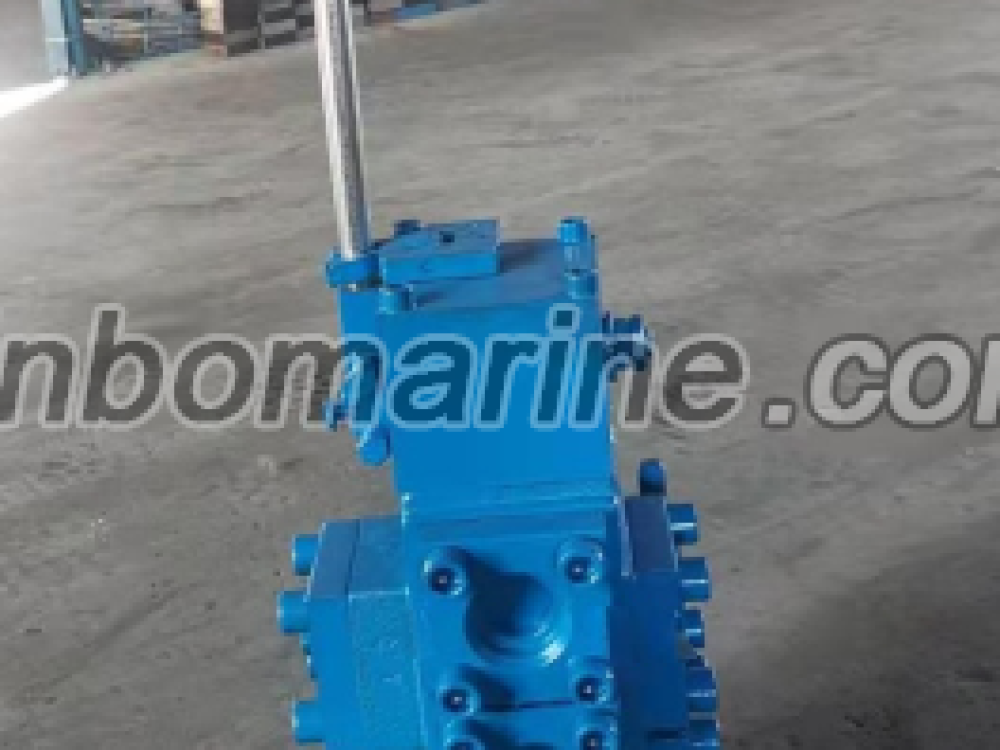

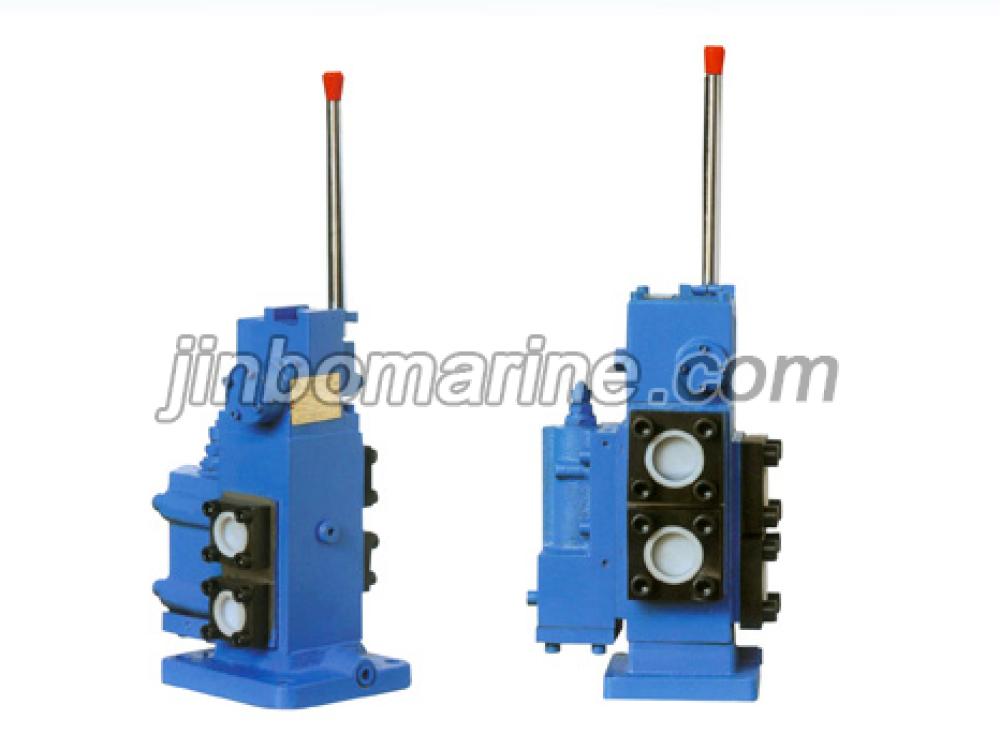

The CSBF manual compound valve is three tubing crosses cross valve integrated with a safety valve and a diverter valve. The valve has the pressure compensation, current capacity, proportional control and Safekeeping Security. The operation handle of the valve and the current capacity adjusting mechanism are working synchronously, and can carry on the limitless speed changing. This valve also has the good commutation velocity modulation performance, long life-span, controlling easily, reliable capacity, and widely used in the ships machinery and other kinds of mechanical hydraulic system.
Technical Data:
Model
Nominal diameter(mm)
Nominal flow(l/min)
Nominal pressure(Mpa)
Scope of safety value pressure(Mpa)
Handle control force(N)
Mid-position pully enginery
CSBF－G20
20
120
25
5~25
≤40
M O Y H K P
CSBF－G25
25
200
CSBF－G32
32
300
CSBF－G40
40
450
CSBF－G50
50
700

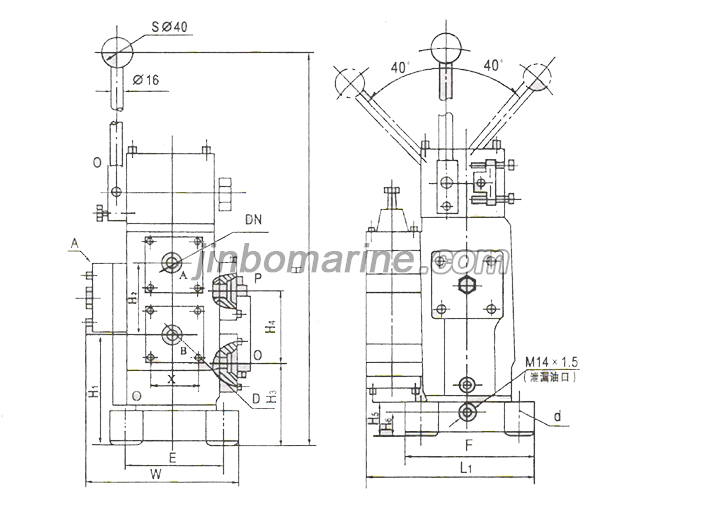

Diameter
Shape and connection size
dn
d
x
w
l
f
e
d
h
h1
h2
h3
h4
h5
h6
20
27.2
45.5
150
70
120
100
4-φ9
445
107
68
77
68
32
19
25
34.5
56
195
202
166
140
4-φ14
632
138
84
96
84
33
19
32
43.2
60.1
192
204
144
120
4-φ11
635
153
88
112
88
35
21
40
49.5
73
212
223
170
140
4-φ11
665
160
103
124
103
40
23
50
62
83.4
240
262
180
150
4-φ13
755
208
124
146
124
45
26
Replacement notice

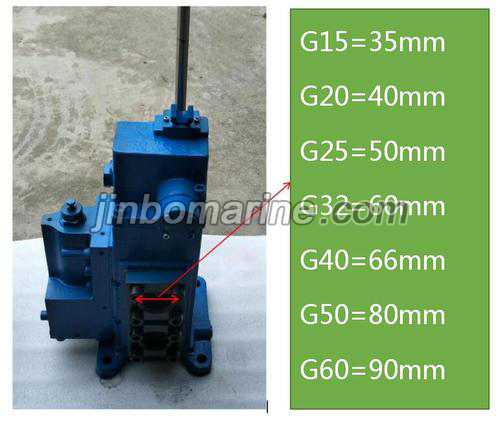

When replacing the old marine CSBF manual compound valve, due to the corrosion of nameplate and other factors, it may be difficult to clearly determine the type .At this time, you can infer it by measuring the center distance of the pipeline mounting holes (as shown in the figure below).
