Mobile Bearing Heater

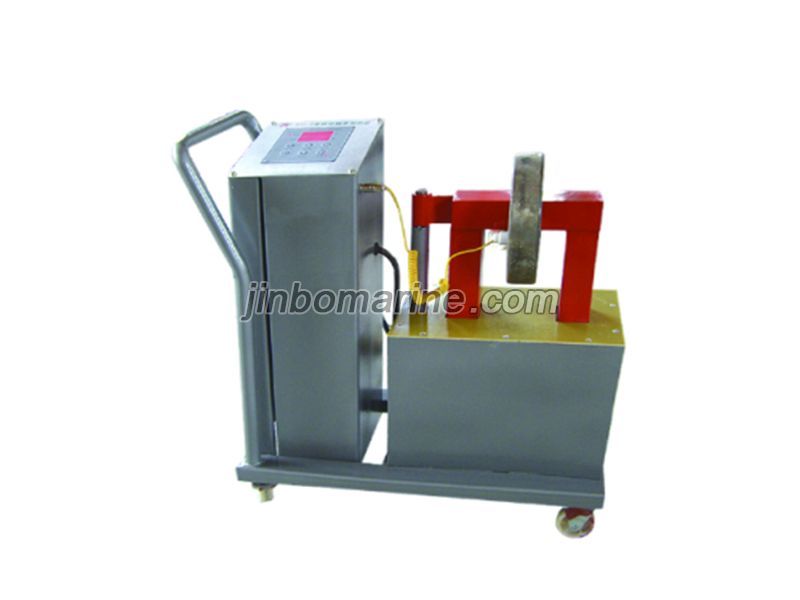

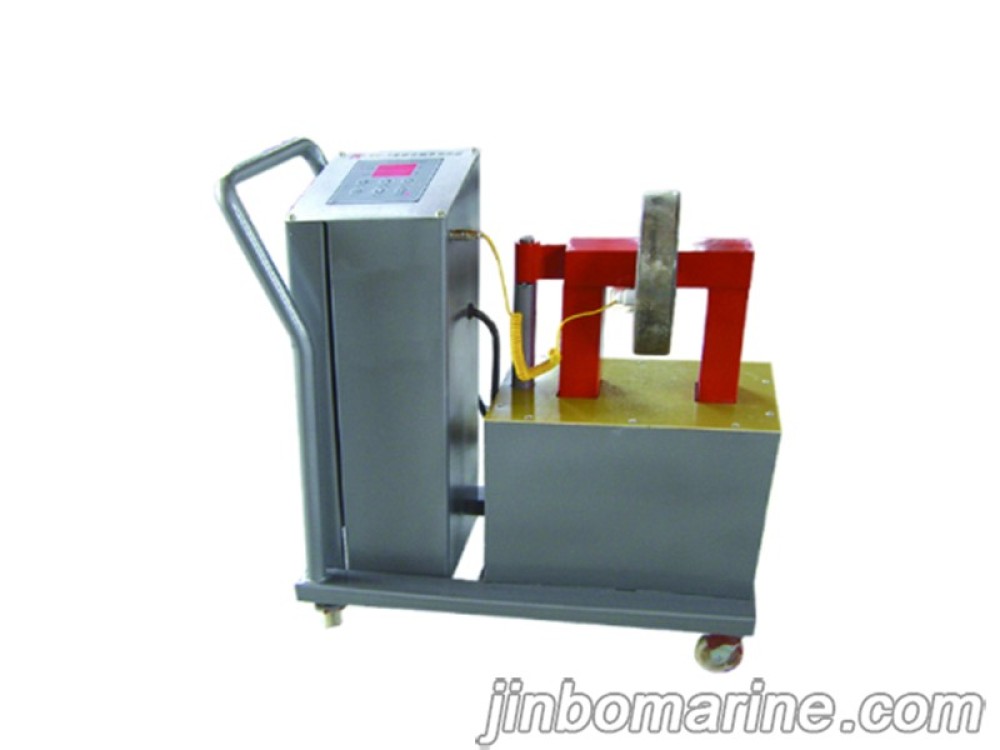

MFY mobile bearing heater adopts two heating control methods of time and temperature.Both temperature and time are digitally displayed. The heating time of the workpiece can be intuitively understood, and the error of temperature and time is less than 5% per minute. The machine is equipped with a trolley, which is convenient for the mobile use of the production site. The heating time of the heater can be selected in the range of 0-999 seconds. The heating temperature can be adjusted in the range of 0-270℃.
| Model | MFY-1 | MFY-2 | MFY-3 | MFY-4 | ||||
| Rated power | 2.2KVA | 5.5KVA | 7.5KVA | 10KV | ||||
| Voltage | 220V | 380V(Two-phase electrical power) | 380V(Two-phase electrical power) | 380V(Two-phase electrical power) | ||||
| Current | 10 | 16A | 20A | 25A | ||||
| Max.heating temperature | 270℃ | 270℃ | 270℃ | 270℃ | ||||
| Max.heating time | 999S | 999S | 999S | 999S | ||||
| Workpiece outer diameter | 280mm | 350mm | 450mm | 600 | ||||
| Internal diameter | 35mm-85mm | 60mm-200mm | 60mm-250mm | 85mm-400mm | ||||
| Width | 100mm | 200mm | 250mm | 300mm | ||||
