Non-sparking 3/4 inch Sockets
Non-sparking 3/4 inch Sockets: Uses: In flammable and explosive places, used in places with special positions and narrow spaces, used in spaces where adjustable wrenches and ope...
Loading product images...

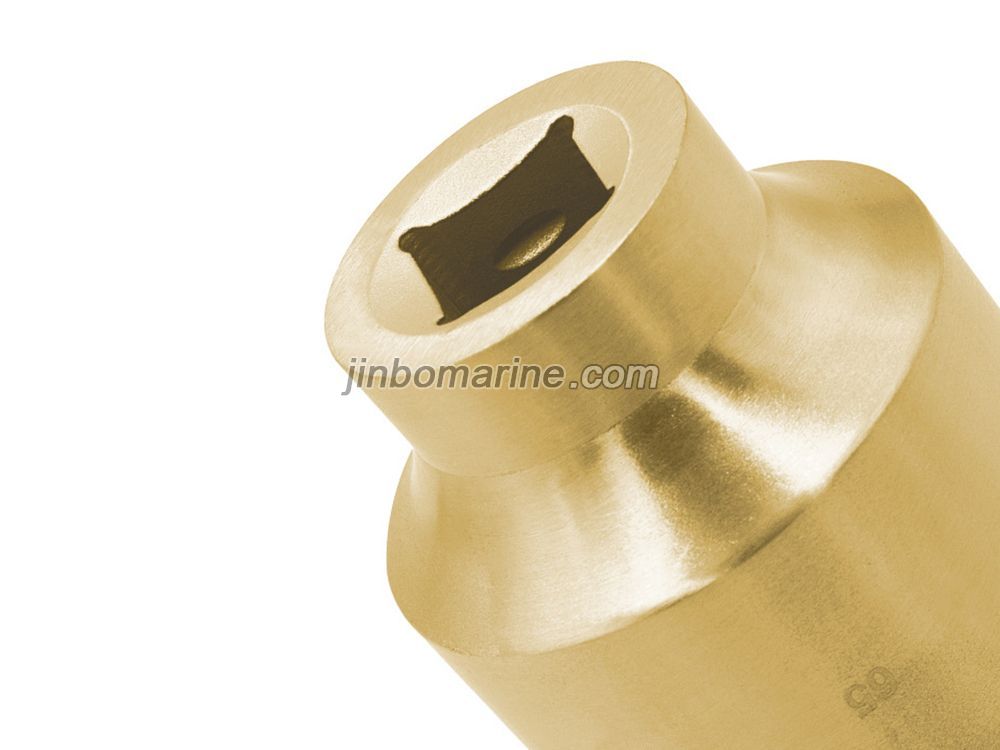

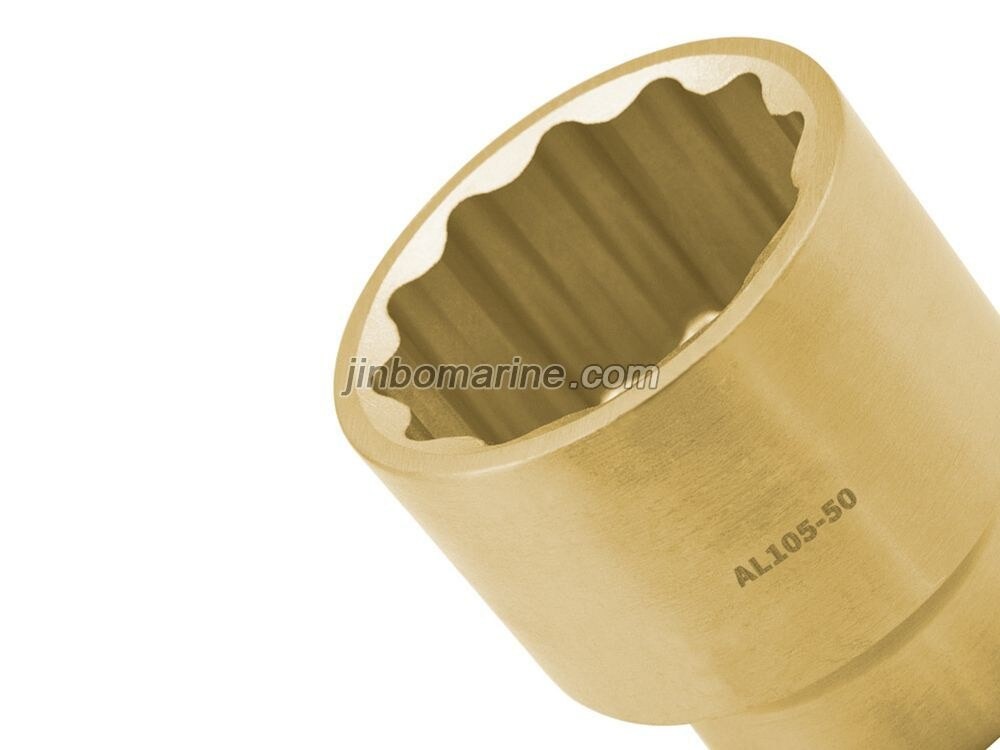

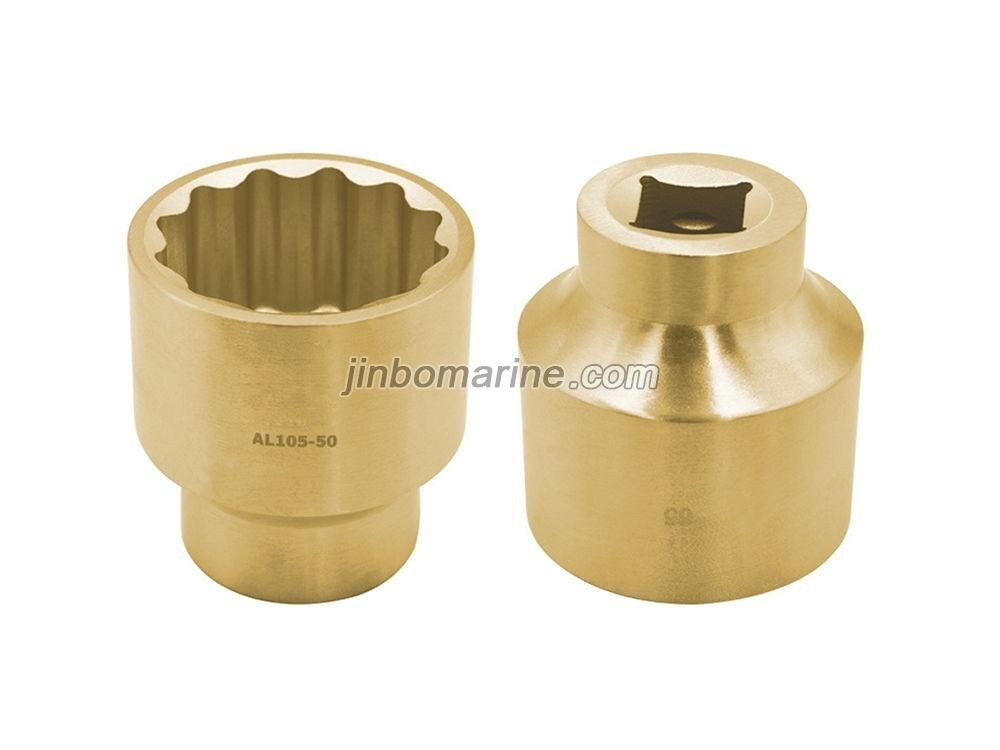

Non-sparking 3/4 inch Sockets
PDF Datasheet
We can supply according to your requirement.
Non-sparking 3/4 inch Sockets:
Uses: In flammable and explosive places, used in places with special positions and narrow spaces, used in spaces where adjustable wrenches and open wrenches cannot be used, used for fastening or removing hexagon bolts and nuts.
Material：Beryllium bronze alloy, Aluminum Copper alloy.
| Socket 3/4 inch | Weight (g) | ||
| S mm | L mm | Aluminum Bronze | Beryllium Copper |
| 17 | 50 | 225 | 246 |
| 19 | 50 | 225 | 246 |
| 21 | 55 | 245 | 268 |
| 22 | 55 | 245 | 268 |
| 23 | 55 | 280 | 306 |
| 24 | 55 | 280 | 307 |
| 26 | 55 | 280 | 307 |
| 27 | 55 | 285 | 312 |
| 28 | 55 | 310 | 339 |
| 29 | 55 | 320 | 350 |
| 30 | 60 | 370 | 410 |
| 31 | 60 | 380 | 430 |
| 32 | 60 | 410 | 465 |
| 34 | 60 | 440 | 480 |
| 36 | 60 | 465 | 510 |
| 38 | 60 | 510 | 555 |
| 41 | 65 | 640 | 660 |
| 46 | 65 | 690 | 765 |
| 50 | 70 | 825 | 910 |
| Socket 3/4 inch | Weight (g) | ||
| S inch | L mm | Aluminum Bronze | Beryllium Copper |
| 3/4 | 5055 | 220 | 240 |
| 13/16 | 55 | 240 | 262 |
| 7/8 | 55 | 245 | 267 |
| 15/16 | 55 | 280 | 305 |
| 1 | 55 | 280 | 310 |
| 1-1/16 | 55 | 285 | 315 |
| 1-1/8 | 55 | 315 | 345 |
| 1-3/16 | 60 | 365 | 400 |
| 1-1/4 | 60 | 400 | 437 |
| 1-5/16 | 60 | 430 | 472 |
| 1-3/8 | 60 | 470 | 515 |
| 1-7/16 | 60 | 480 | 525 |
| 1-1/2 | 60 | 530 | 580 |
| 1-5/8 | 65 | 640 | 702 |
| 1-3/4 | 65 | 695 | 761 |
| 1-13/16 | 65 | 705 | 830 |
| 1-7/8 | 65 | 750 | 850 |
| 2 | 70 | 870 | 965 |
