Non-sparking Impact Sockets
Non-sparking Impact Sockets: Uses: In flammable and explosive places, used in places with special positions and narrow spaces, used in spaces where adjustable wrenches and open ...
Loading product images...

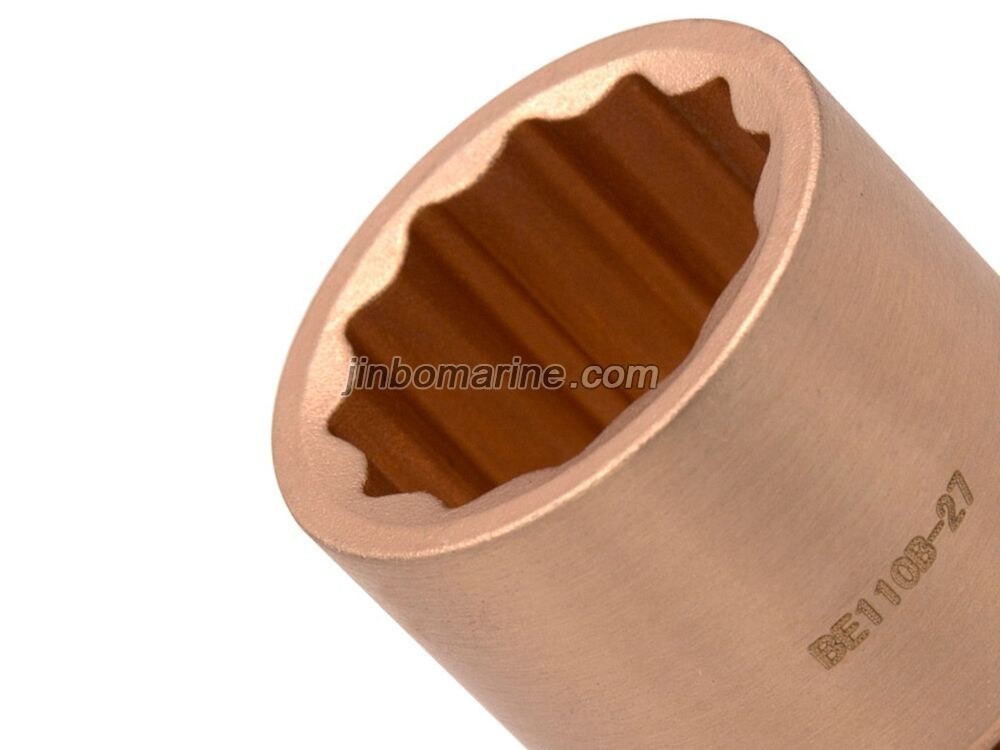

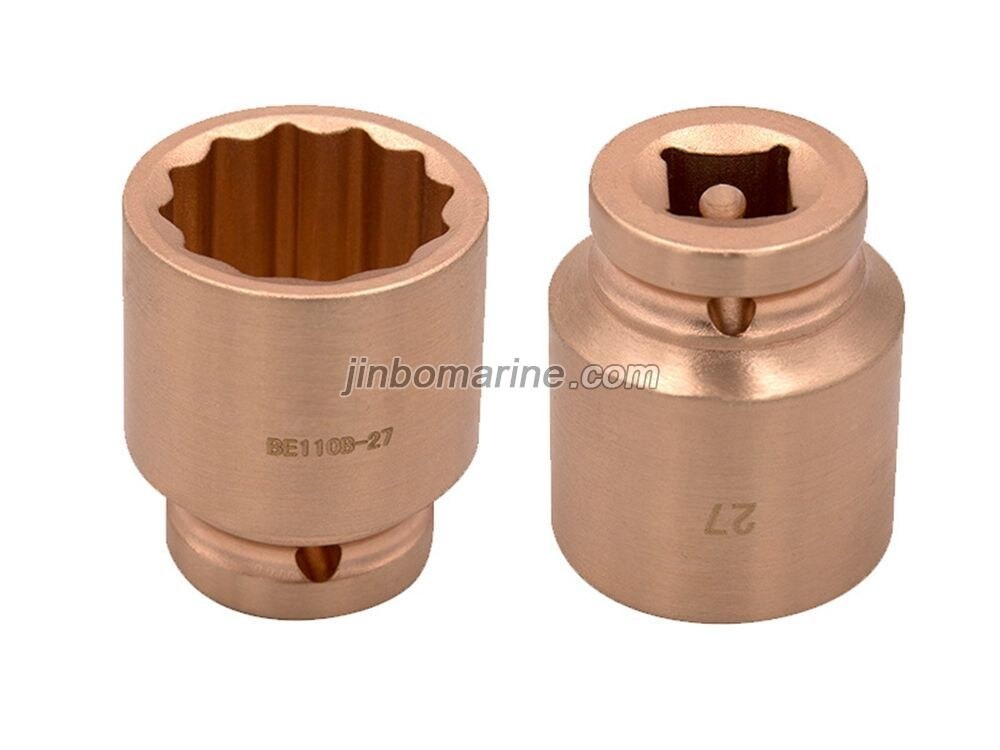

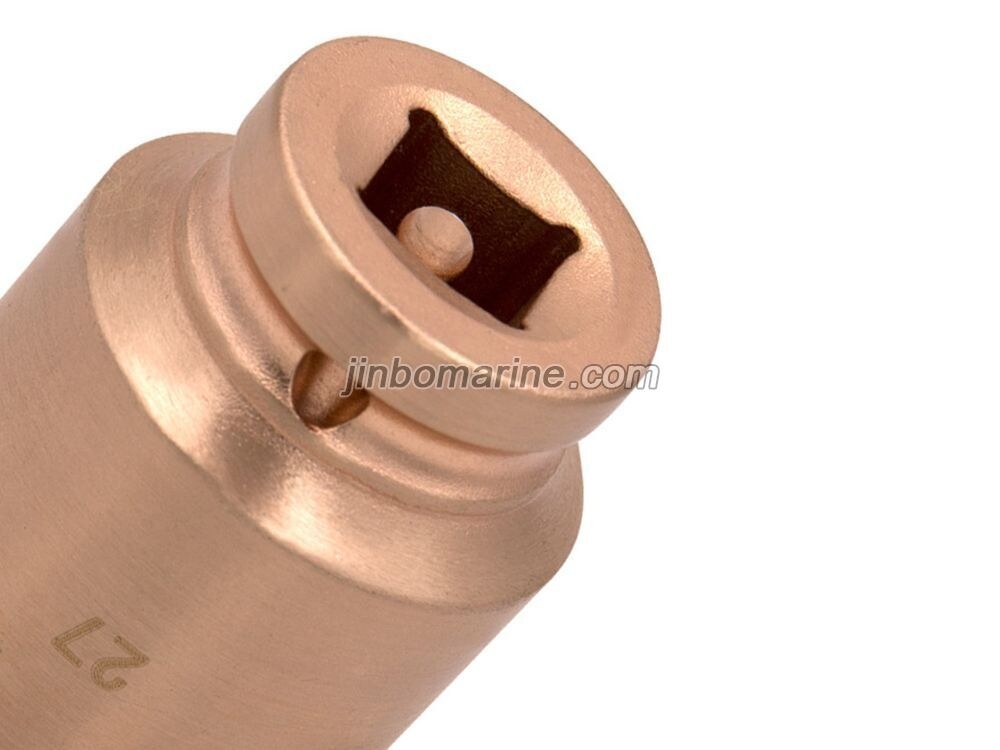

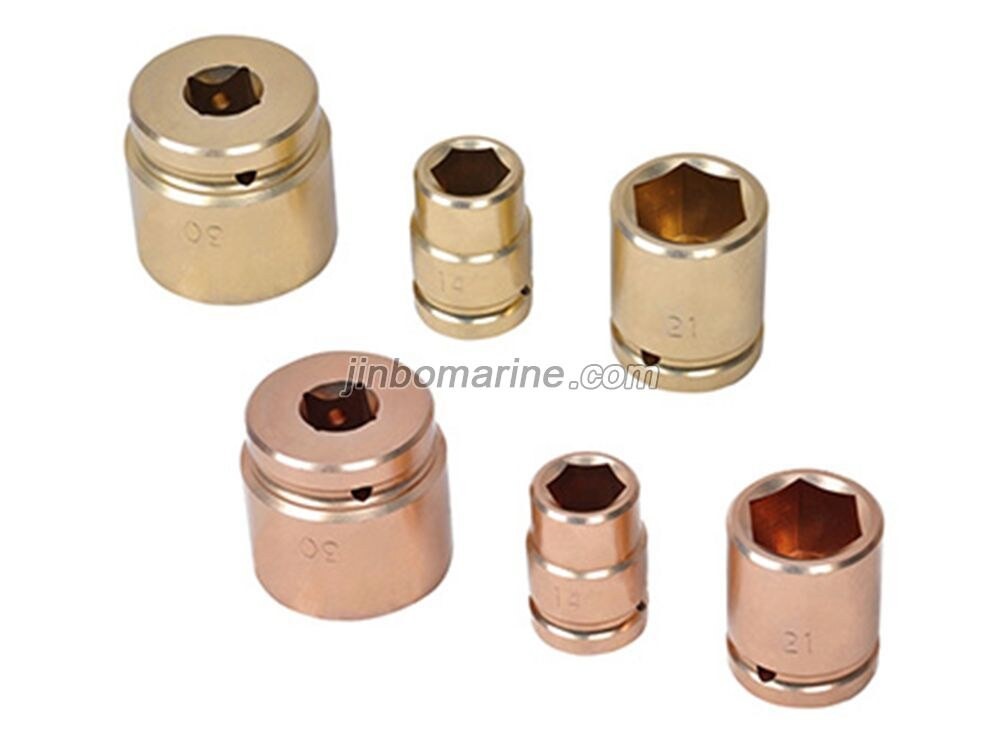

Non-sparking Impact Sockets
PDF Datasheet
We can supply according to your requirement.
Non-sparking Impact Sockets:
Uses: In flammable and explosive places, used in places with special positions and narrow spaces, used in spaces where adjustable wrenches and open wrenches cannot be used, used for fastening or removing hexagon bolts and nuts.
Material：Beryllium bronze alloy, Aluminum Copper alloy.
| Socket 3/4 inch | Weight (g) | ||
| S mm | L mm | Aluminum Bronze | Beryllium Copper |
| 24 | 50 | 330 | 380 |
| 27 | 53 | 365 | 405 |
| 30 | 53 | 390 | 440 |
| 32 | 56 | 425 | 475 |
| 36 | 56 | 585 | 650 |
| 41 | 60 | 625 | 695 |
| 46 | 60 | 700 | 770 |
| 50 | 70 | 1000 | 1100 |
| Socket 1 inch | Weight (g) | ||
| S mm | L mm | Aluminum Bronze | Beryllium Copper |
| 19 | 55 | 570 | 630 |
| 21 | 55 | 580 | 640 |
| 22 | 55 | 590 | 650 |
| 24 | 55 | 600 | 660 |
| 26 | 55 | 660 | 735 |
| 27 | 55 | 670 | 735 |
| 29 | 60 | 690 | 760 |
| 30 | 60 | 690 | 765 |
| 32 | 60 | 700 | 775 |
| 34 | 60 | 700 | 775 |
| 35 | 60 | 700 | 775 |
| 36 | 60 | 700 | 775 |
| 38 | 65 | 780 | 865 |
| 41 | 65 | 830 | 930 |
| 46 | 70 | 1265 | 1380 |
| 50 | 75 | 1320 | 1455 |
| 52 | 75 | 1550 | 1715 |
| 55 | 75 | 1650 | 1830 |
| 58 | 85 | 1900 | 2080 |
| 60 | 85 | 2000 | 2200 |
| 65 | 85 | 2250 | 2460 |
| 70 | 90 | 2600 | 2890 |
| 75 | 90 | 2900 | 3155 |
| 80 | 90 | 3200 | 3560 |
| Socket 1-3/16 inch | Weight (g) | ||
| S mm | L mm | Aluminum Bronze | Beryllium Copper |
| 50 | 90 | 1755 | 1930 |
| 52 | 90 | 1835 | 2005 |
| 55 | 90 | 1965 | 2180 |
| 58 | 90 | 2000 | 2200 |
| 60 | 90 | 2085 | 2290 |
| 65 | 90 | 2370 | 2610 |
| 70 | 90 | 2585 | 2840 |
| 75 | 90 | 2880 | 3190 |
| 80 | 90 | 3250 | 3605 |
| Socket 1-1/4 inch | Weight (g) | ||
| S mm | L mm | Aluminum Bronze | Beryllium Copper |
| 50 | 90 | 1765 | 1950 |
| 60 | 90 | 2100 | 2300 |
| 70 | 90 | 2475 | 2750 |
| Socket 1-1/2 inch | Weight (g) | ||
| S mm | L mm | Aluminum Bronze | Beryllium Copper |
| 55 | 90 | 2300 | 2530 |
| 60 | 90 | 2500 | 2750 |
| 65 | 95 | 2850 | 3130 |
| 70 | 95 | 3100 | 3400 |
| 75 | 100 | 3400 | 3740 |
| 80 | 100 | 3800 | 4180 |
| 85 | 110 | 4200 | 4620 |
| 90 | 110 | 4490 | 4940 |
