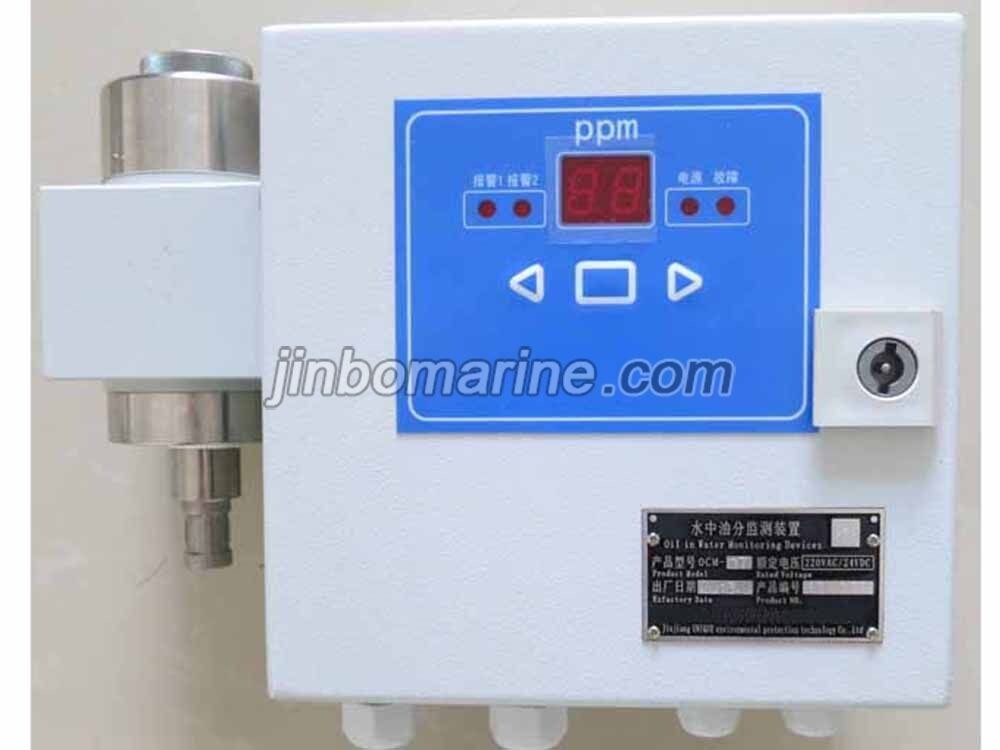

OCM-07 15ppm Bilge Alarm System
Description: The OCM-07 15ppm Bilge Alarm System is an on-line monitoring instrument for the new generation of detection sewage with trace oil concentration. It is suitable for conti...
OCM-07 15ppm Bilge Alarm System
PDF Datasheet
We can supply according to your requirement.
Description:
The OCM-07 15ppm Bilge Alarm System is an on-line monitoring instrument for the new generation of detection sewage with trace oil concentration. It is suitable for continuous monitoring of oil and condensate recovery of ship and ship boiler and condensate water. It has the function of exceeding limited alarm and controlling sewage discharge.
The OCM-07 15ppm Bilge Alarm System is approved by the China Classification Society (CCS). The performance index is in accordance with the MEPC.107 (49) resolution of the Maritime Environmental Protection Committee of the International Maritime Organization (IMO) and has obtained the CCS inspection certificate.
According to the different requirements of the power supply occasion, it can provide different customers' needs.
Technical Data:
| Model | OCM-07 |
| Range | 0-30mg/l |
| Accuracy | Better Than 5mg/l |
| Linear | More than 2% |
| Display | LCD |
| Power Supply | 220VAC/110VAC ±10% 24VDC±10% |
| Power | 5VA |
| Alarm Point | 1-30ppm Adjustable |
| Output Signal | 0-20mA or 4-20mA |
| Sample Water Pressure | 0.05－8bar |
| Ambient Temperature | -20 to+70℃ |
| Sample Water Temperature | 1 to +80℃ |
| Size (overall) | 196mmW×270mmH×240mD 172mmW×170mmH×221mD |
| Protection Grade | IP65 |
| Weight | 5KG |
| Pipe Connection | R 1/4"internal thread |
| Conforming to standard | IMO.Res.MEPC.107（49） resolution |
