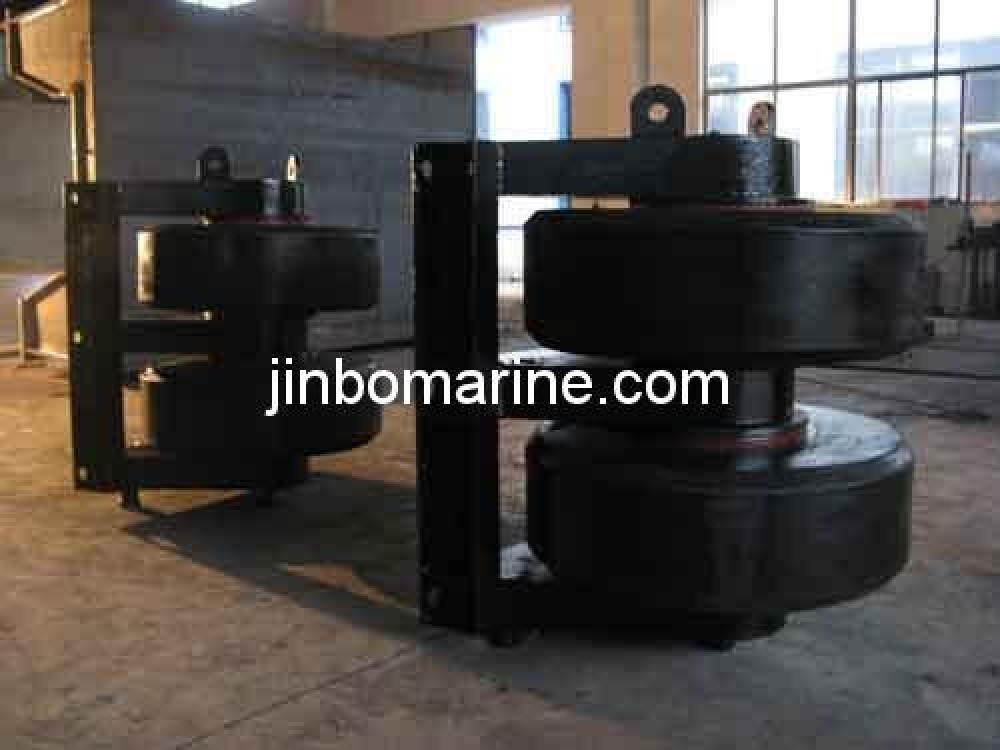

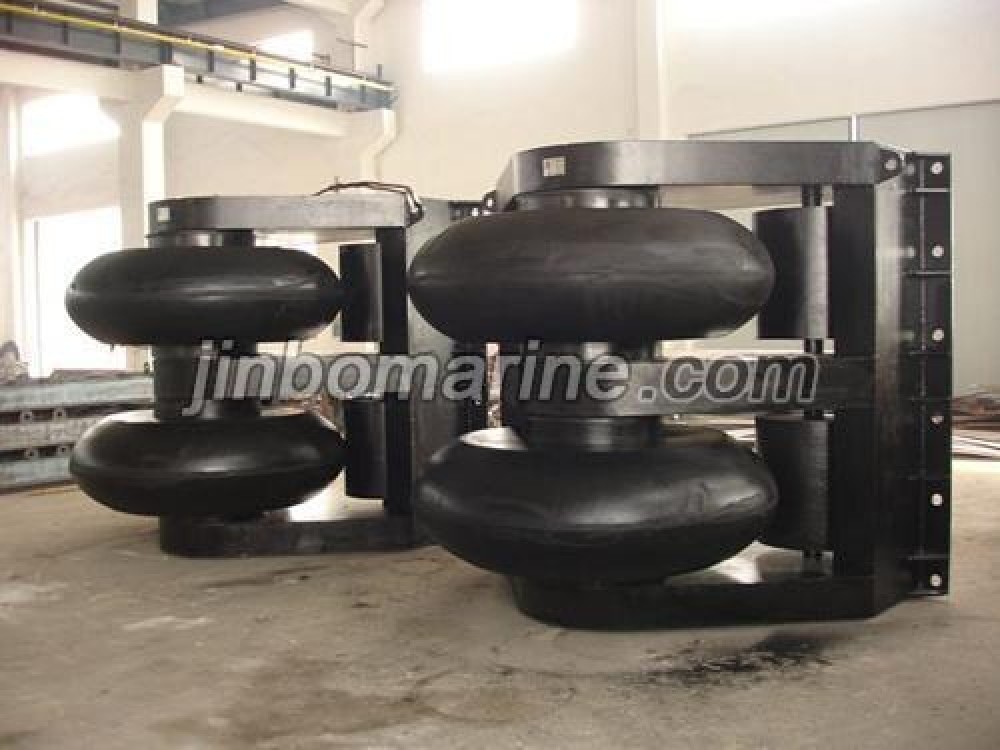

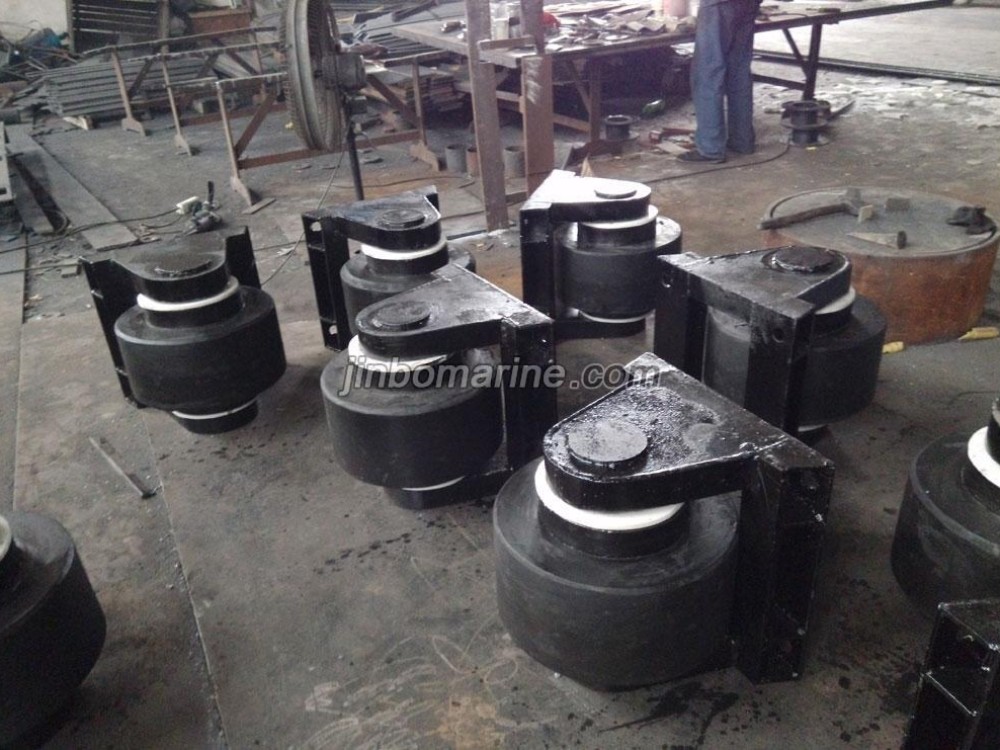

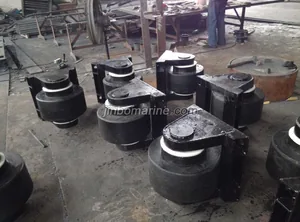

Pile Guide Roller
Product Description It is commonly used on the berth corners and dock entrances, also widely installed along the walls of dry docks and other restricted channels to help guide vessels a...
PDF Datasheet
China Pile Guide Roller:

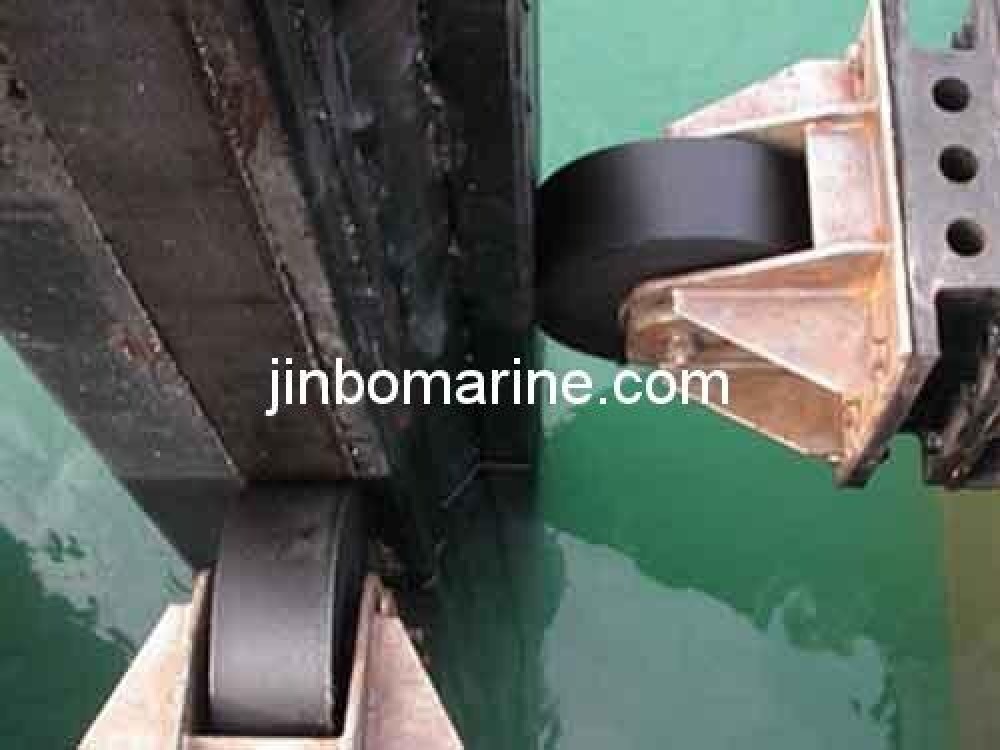

It is commonly used on the berth corners and dock entrances, also widely installed along the walls of dry docks and other restricted channels to help guide vessels and prevent hull damage.
Feature
1.Widely used in ports and docks.
2.Agile-turning, easy-installation.
Standard Size of Rolling Rubber Fender Type D1
| Specification and size \Item | A | B | C | D | E | F |
| D1-060-20 | 600 | 200 | 320 | 110 | 420 | 695 |
| D1-075-25 | 750 | 250 | 400 | 140 | 510 | 870 |
| D1-090-30 | 900 | 300 | 480 | 165 | 610 | 1040 |
| D1-120-40 | 1200 | 400 | 640 | 220 | 820 | 1380 |
| D1-150-50 | 1500 | 500 | 800 | 275 | 1010 | 1740 |
| D1-180-60 | 1800 | 600 | 960 | 330 | 1210 | 2080 |
| D1-210-70 | 2100 | 700 | 1155 | 385 | 1410 | 2440 |
| D1-240-80 | 2400 | 800 | 1280 | 440 | 1610 | 2770 |
Standard Size of Rolling Rubber Fender Type D2
| Specification and size \Item | A | B | C | D | E | F |
| D2-060-20 | 600 | 200 | 320 | 110 | 770 | 695 |
| D2-075-25 | 750 | 250 | 400 | 140 | 935 | 870 |
| D2-090-30 | 900 | 300 | 480 | 165 | 1120 | 1040 |
| D2-120-40 | 1200 | 400 | 640 | 220 | 1500 | 1380 |
| D2-150-50 | 1500 | 500 | 800 | 275 | 1850 | 1740 |
| D2-180-60 | 1800 | 600 | 960 | 330 | 2215 | 2080 |
| D2-210-70 | 2100 | 700 | 1155 | 385 | 2590 | 2440 |
| D2-240-80 | 2400 | 800 | 1280 | 440 | 2950 | 2770 |
We can customized the size according to your requirement.
