Marine Equipment
RG100-L-G High pressure hose Distributor Adapter
Model Max working pressure (MPa) Minimum burst pressure (MPa) Inner diameter x outer diameter (mm) Minimum b...
Loading product images...
RG100-L-G High pressure hose Distributor Adapter
PDF Datasheet
We can supply according to your requirement.
China RG100-L-G High pressure hose Distributor Adapter:
| Model | Max working pressure (MPa) | Minimum burst pressure (MPa) | Inner diameter x outer diameter (mm) | Minimum bending radius (mm) | Temperature |
| RG70-L-G | 70 | 186 | 6.3x12.4 | 70 | -40℃-+100℃ |
| RG100-L-G | 100 | 320 | 6.3x13.3 | 80 | -40℃-+100℃ |
| RG180-L-G | 180 | 450 | 4.7x11.5 | 130 | -40℃-+100℃ |
| RG250-L-G | 250 | 625 | 4.7x13.0 | 175 | -40℃-+100℃ |
| Note: L represents the required length in millimeters, and G represents the thread of the hose joint. Example: RG180-1000-G1/4, which refers to a hose with a length of 1000mm, a G1/4 external thread hose connector, and a maximum pressure resistance of 180Mpa. | |||||

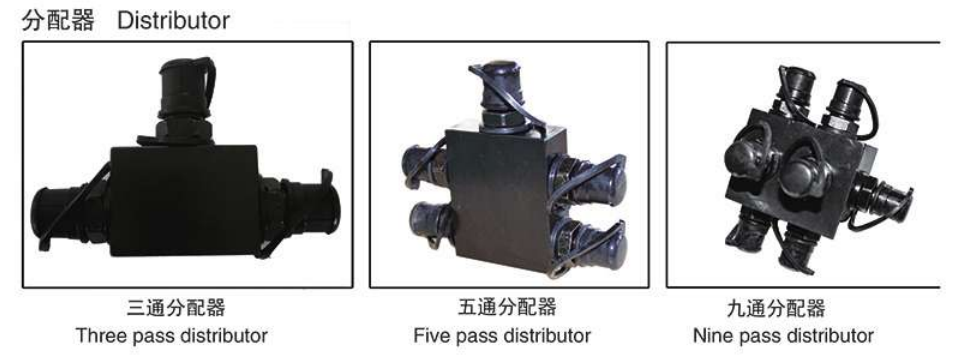

Distributor
Adapter
