RSN7-3150-2 Double Gun Inverter Arc Welder For Weld Stud M6-M36

Feature: 1.IGBT Inverter technology. 2.Less weight, power efficient, safe and reliable. 3.Easy control and digital display of welding voltage, current and time. 4.Spe...

Welding Equipment1 Photos ISO9001 Supplier

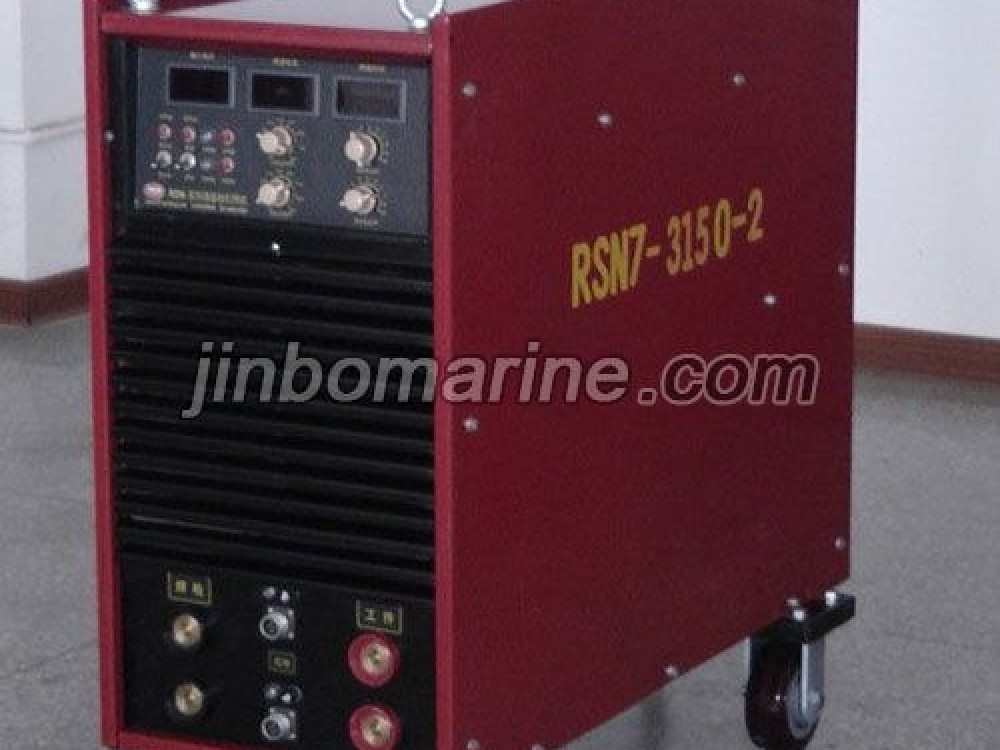

RSN7-3150-2 Double Gun Inverter Arc Welder For Weld Stud M6-M36

Category: Welding Equipment
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty: 12 Months unless specified otherwise
Place of Origin: China

We can supply according to your requirement.

Feature:

1.IGBT Inverter technology.

2.Less weight, power efficient, safe and reliable.

3.Easy control and digital display of welding voltage, current and time.

4.Special torch with extending cables, large lfiting force, low heat and durable.

5.Inner circuit board is under waterproof, anticorrosion, dampproof and dustproof treatment.

6.Compensatory capabilities of power voltage. When the voltage decreases, this machine can automatically stabilize welding parameters, when the voltage is extremely low, the machine still can work normally(only the max welding current is a little lower), the welding strength is much higher than ordinary welding machine. This feature applies to: electricity shortage and multiple equipments operating simutaneously in construction sites such as projects powered by generators, shipbuilding, steel construction etc.

Technical Parameters:

Item RSN7-2500-2
RSN7-3150-2
RSN7-4000-2
RSN7-5000-2
operation situation one gun dual guns one gun dual guns one gun dual guns one gun dual guns
welding range Φ6-Φ28 Φ4-Φ18 Φ6-Φ36 Φ4-Φ20 Φ6-Φ46 Φ4-Φ24 Φ8–Φ50 Φ6–Φ28
welding current 400A-2500A 300A-1250A 400A-3150A 300A-1550A 600A-4000A 400A-2000A 600A-5000A 400A-2500A
welding speed

Φ28

8pcs/minute

Φ18 8pcs/minute

Φ36

8pcs/minute

Φ20 8pcs/minute

Φ46 8pcs/minute

Φ24

8pcs/minute

Φ50

6pcs/minute

Φ28

6pcs/minute

welding time 0.1S-3S 0.1S-3S 0.1S-3S 0.1S-3S
input power AC 3˜300V-440V AC 3˜300V-440V AC 3˜300-440 AC 3˜300-440
rated input power 90KW 120KW 150KW 190KW
power switch 160A 225A 250A 250A
protect grade Ip23 Ip23 Ip23 Ip23
cooling way F F F F
dimension(L/W/H) 960x418x760mm
990x418x800mm
990x418x800mm
990x418x800mm
weight 168KG

180KG

188KG 198KG
