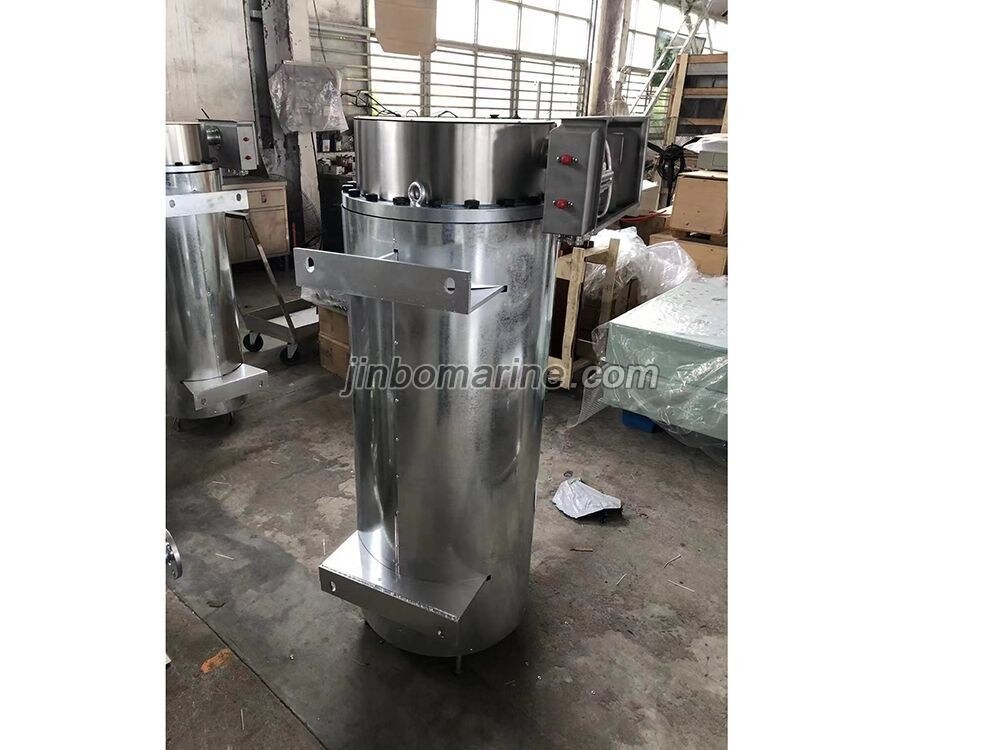

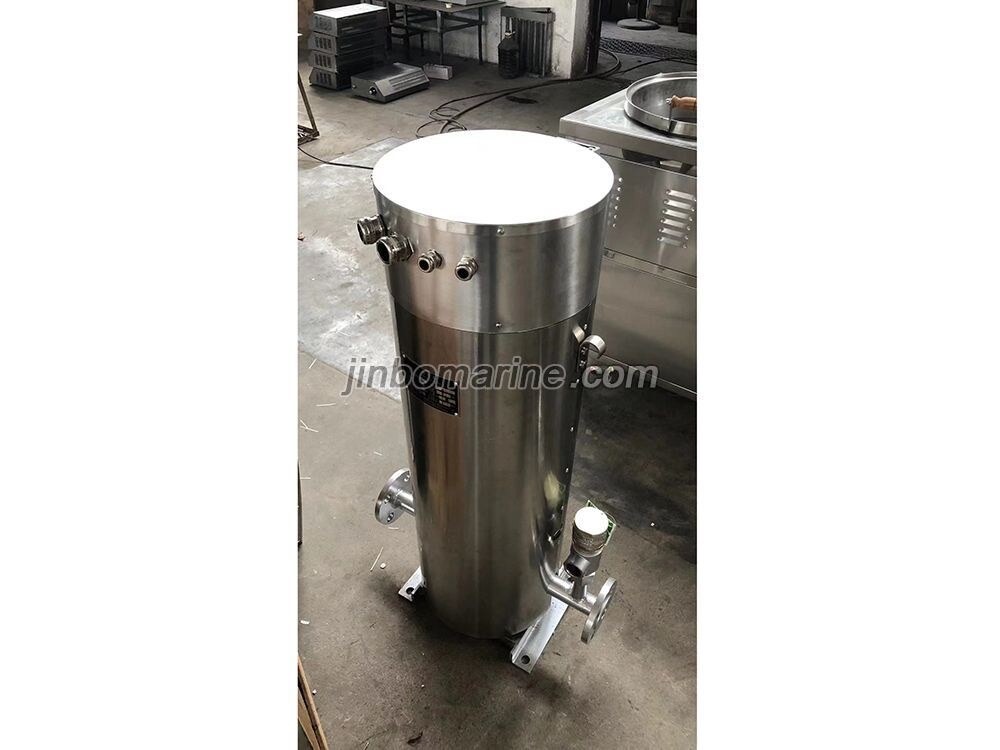

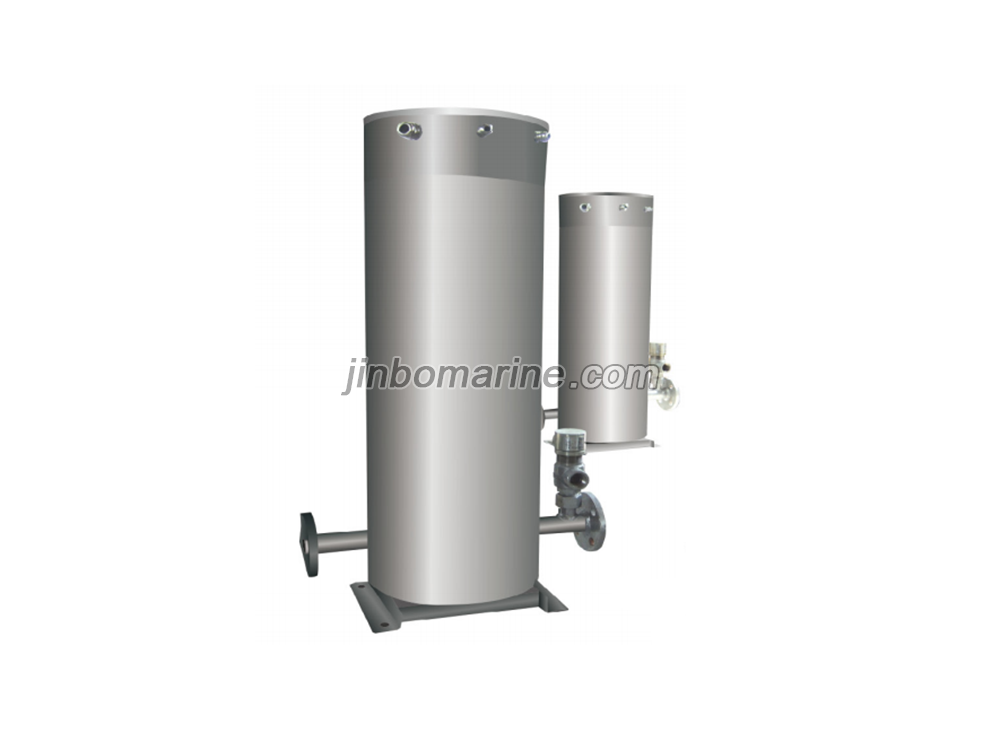

RYZ-12 Heavy Oil Heating Device - Image 1

RYZ-12 Heavy Oil Heating Device - Image 2

RYZ-12 Heavy Oil Heating Device - Image 3

RYZ-12 Heavy Oil Heating Device thumbnail 1

RYZ-12 Heavy Oil Heating Device

Category: Marine Kitchen Galley

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

Description:

RYZ heavy oil heating device is used to heat heavy diesel oil to a certain set temperature and maintain a relatively stable temperature, so as to replace light diesel oil for ship owners, auxiliary engines and other diesel engine fuel oil. It is applicable to all kinds of ships.

Techincal data:

Model Data Sheet	RZ-6	RYZ-9	Z-12	RYZ-15	RYZ-18	RYZ-24
Rated voltage	3P/220V/50Hz or 60Hz 3P/390W/S0Hz3P/440W/60Hz
Rated power	6kW	9kW	12kW	15kW	1kW	24kW
Heating medium	Fuel oil, lubricating oil
Adjustable temperature control	The control value of the temperature controller is adjusted between 50-98 ℃.
Maximum withdrawal limit	110℃
Working pressure	1.0MPa
Diameter of safety valve	225m
Inlet&outlet size	232mm
Height(H)	800	900	1050	1200	1300	1450
