S3 BFOU(i) 250V Halogen-free Fire Resistant Communication Cable NEK606

S3 BFOU(i) 250V halogen-free Fire-resistant Instrumentation & Communication cable with individual screen S3/S7 BFOU(i) 250V halogen-free Mud Resistant Instrumentation & Communi...

NEK606 Cable2 Photos ISO9001 Supplier

Loading product images...

S3 BFOU(i) 250V Halogen-free Fire Resistant Communication Cable NEK606 - Image 1

S3 BFOU(i) 250V Halogen-free Fire Resistant Communication Cable NEK606 - Image 2

S3 BFOU(i) 250V Halogen-free Fire Resistant Communication Cable NEK606

Category: NEK606 Cable

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

China S3 BFOU(i) 250V Halogen-free Fire Resistant Communication Cable NEK606:

S3 BFOU(i) 250V halogen-free Fire-resistant Instrumentation & Communication cable with individual screen

S3/S7 BFOU(i) 250V halogen-free Mud Resistant Instrumentation & Communication cable with individual screen

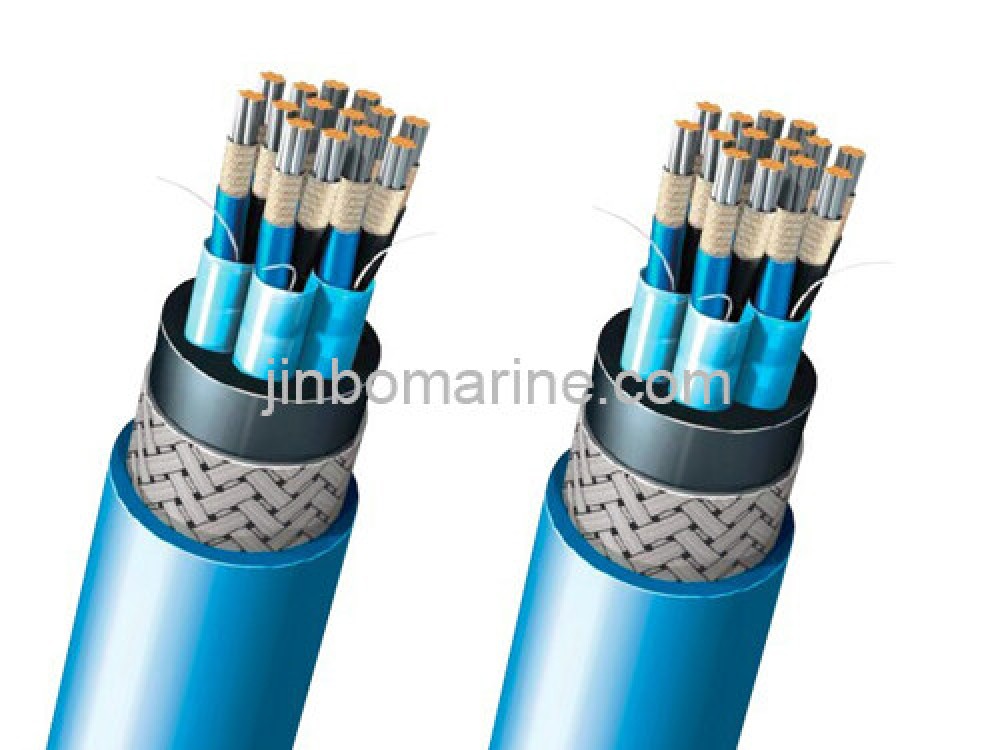

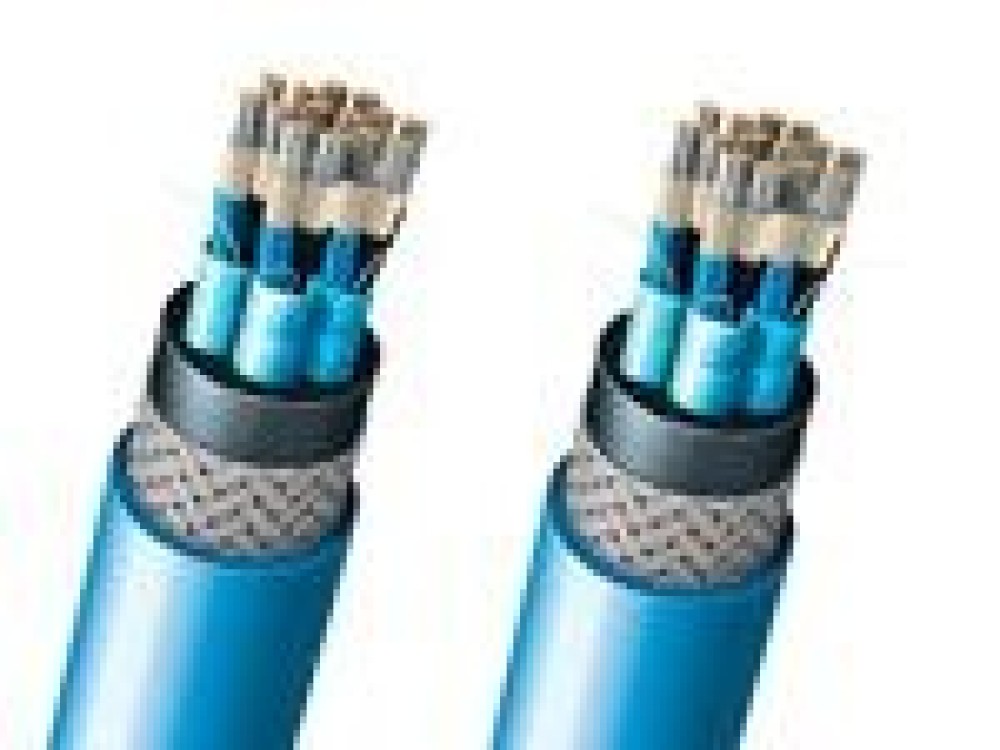

Cable Construction

Classification	Code	Construction details
Conductor	Tinned Annealed Stranded Copper Wire
Insulation	R	Mica Tape + EP Rubber
Twisting	Color coded cores twisted together for pair or triple
Individual Screen	(i)	Each Pair/Triple are individually screened by aluminum polyester with copper wire
Bedding/Inner Covering	Halogen-free compound SHF1
Armor	O	Tinned Copper wire braided
Outer Sheath	U	Halogen-free Thermoset compound SHF2
Halogen-free mud resistant thermoset compound, SHF Mud
Colour	Grey or Blue

Standards

Design : IEC 60092-376

NEK 606-2004

IEC60331 Fire Resistant

IEC 60332-3 Flame Retardant Category A

IEC60754-1 Halogen-free

IEC 61034-1 Low Smoke

Cores & Size

Cores: 1P 2P 3P 4P 7P 8P 10P 12P 14P 16P 18P 19P 24P 32P

1T 2T 3T 4T 7T 8T 10T 12T 14T 16T 18T 19T 24T 32T

Size (sqmm): 0.75 1 1.5

Feature

Halogen-free, Low Smoke, Flame retardant, Mud Resistant

Application:

The cable is fixed installation for Instrumentation, Communication, Control and Alarm system in both explosion risk and safe area; SHF Mud for Installation in areas expose to Mud and Drilling or Cleaning fluids

Shipment:

We delivery at everywhere around the world according to Incoterms 2010.
