SGLL type duplex vertical oil cooler

SGLL type duplex vertical oil cooler： The cooler with a double structure, composed of oil cooler and three-way valve device two of the same size, a job, a spare, the cooling load of ...

Heat Exchanger1 Photos ISO9001 Supplier

Loading product images...

SGLL type duplex vertical oil cooler

Category: Heat Exchanger

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

SGLL type duplex vertical oil cooler：

The cooler with a double structure, composed of oil cooler and three-way valve device two of the same size, a job, a spare, the cooling load of each cooler can take the whole system, a fixed tube plate, a floating head, removable bundle and water box cover, convenient cleaning, inspection and maintenance in the process of operation. Cooler material, according to the use of the site, the water system conditions can be a variety of options.

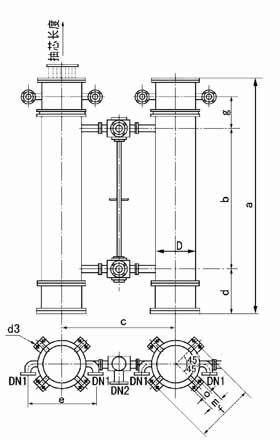

Model	Area of cooling surface m2	a	b	c	d	e	f	g	m	o	d3	D	DN1	DN2
SGLL4-12/1.0L	12	1555	960	870	320	520	475	340	120	80	8-Φ26	325	65	65
SGLL4-16/1.0L	16	1960	1365	870	320	520	475	340	120	80	8-Φ26	325	65	65
SGLL4-20/1.0L	20	2370	1775	870	320	565	475	340	120	80	8-Φ26	325	80	65
SGLL4-24/1.0L	24	2780	2175	870	340	565	475	360	120	80	8-Φ26	325	80	65
SGLL4-28/1.0L	28	3190	2585	870	340	565	475	360	120	80	8-Φ26	325	80	65
SGLL5-35/1.0L	35	2610	1692	976	470	666	585	400	120	80	8-Φ26	426	100	100
SGLL5-40/1.0L	40	2880	1962	976	470	726	585	400	120	80	8-Φ26	426	100	100
SGLL5-45/1.0L	45	3120	2202	973	470	726	585	420	120	80	8-Φ26	426	125	100
SGLL5-50/1.0L	50	3390	2472	1100	470	726	585	420	140	100	8-Φ26	426	125	100
SGLL5-60/1.0L	60	3930	3012	1240	470	990	585	420	140	100	8-Φ26	426	125	100
SGLL6-80/1.0L	80	3255	2015	1240	705	990	830	460	140	100	8-Φ30	616	200	200
SGLL6-100/1.0L	100	3855	2615	1346	705	1066	830	460	140	100	8-Φ30	616	200	200
SGLL6-120/1.0L	120	4455	3215	1346	705	1066	830	460	140	100	8-Φ30	616	200	200
