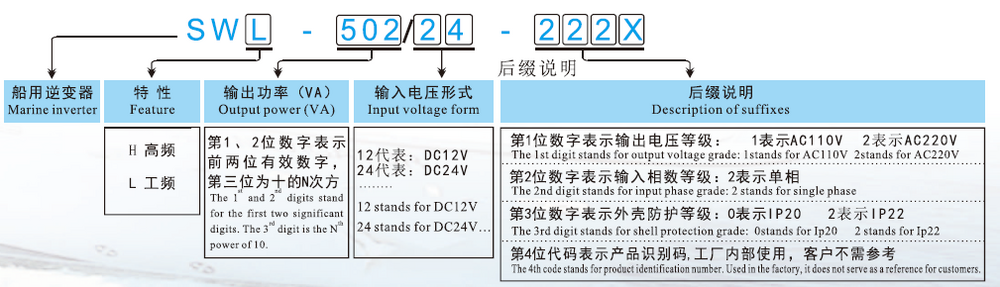

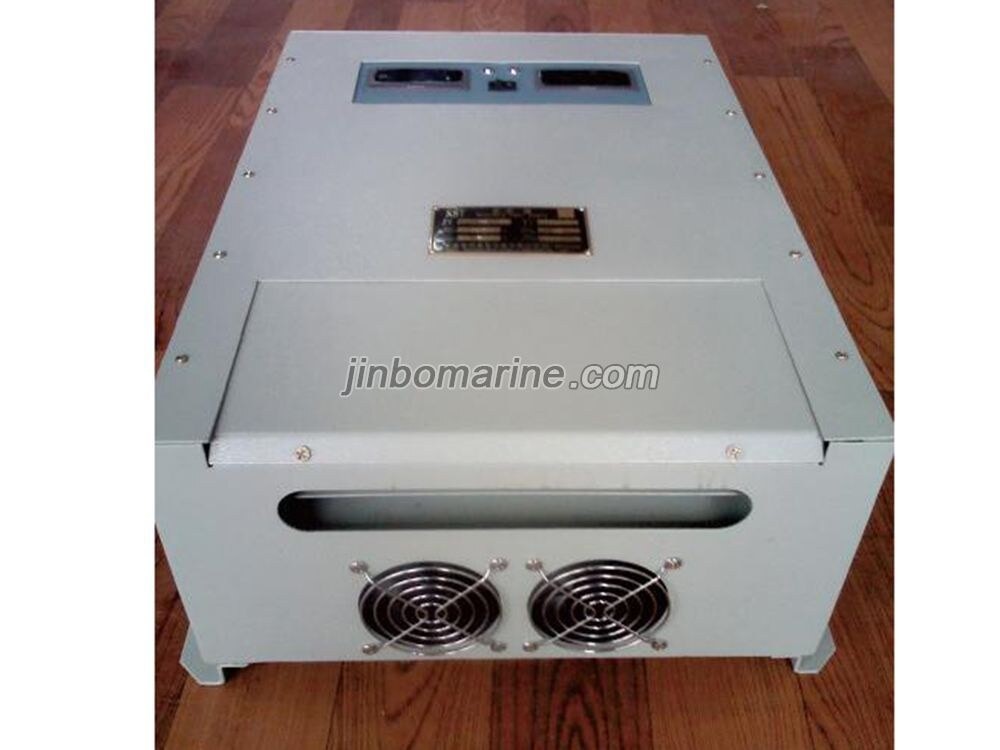

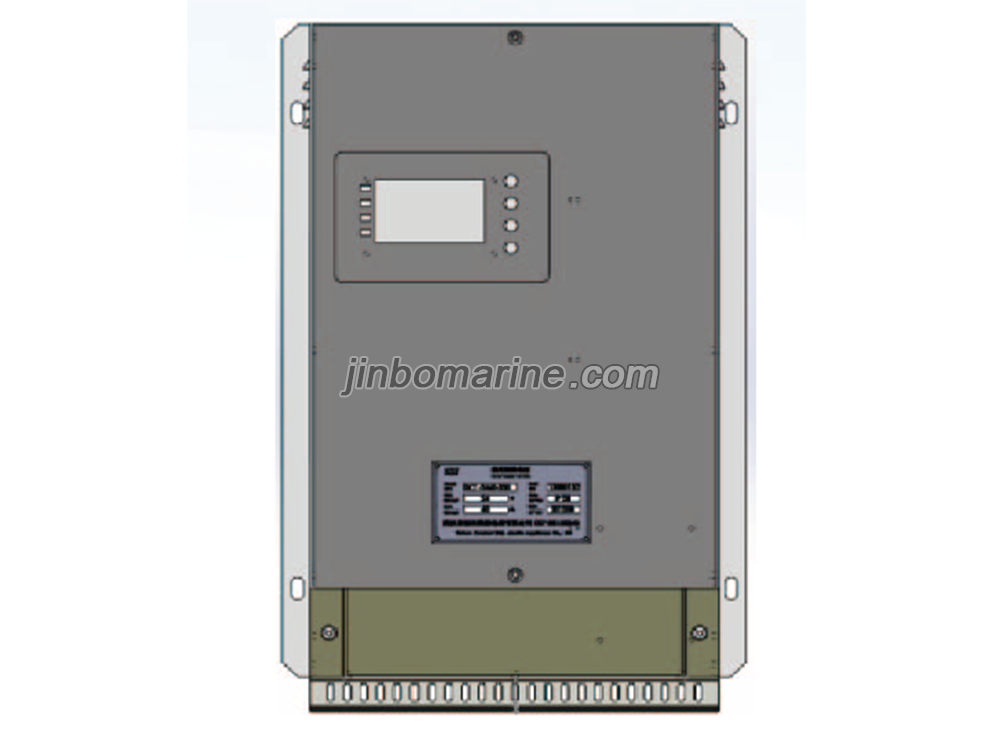

SWL-502/24--222 Marine Inverter
SWL-502/24--222 Marine Inverter: SWL series sine wave inverter power supplies can provide reliable sine wave power supply for important electronic equipmentlike marine power distr...
Loading product images...
SWL-502/24--222 Marine Inverter
PDF Datasheet
We can supply according to your requirement.
SWL-502/24--222 Marine Inverter:
SWL series sine wave inverter power supplies can provide reliable sine wave power supply for important electronic equipmentlike marine power distribution equipment. With high overload capacity, SWL series can start large motor loads. Once started, all inverter functions are fully automatic. Applicable to special marine environments, this machine can connect inductive loads. With stable performance, this machine outputs sine wave as its waveform.
Technical data:
| Main features | Output power | |||
| 200VA 500VA 1KVA 1.5KVA | 1.6KVA 2KVA 2.5KVA 4KVA | 4KVA 5KVA 6KVA 8KVA | ||
| Input voltage | DC1 2V/DC24V/DC48V | DC24V/DC48V/DC | 96VDC48V/DC96V/DC110V | |
| Output voltage | AC110V/AC220V(±5%) | AC110V/AC220V (±5%) | AC220V(±5%) | |
| Output waveform distortion | ≤3% | |||
| Output frequency | 50/60HZ (optional) | |||
| Output work efficiency | ≥80% (rated test) | |||
| Alarm and Protection | Cooling type | Air cooling | ||
| Input overvoltage | DCI2V single battery (DC15.5V)* PCS | |||
| Input undervoltage | DC12V single battery (DC10.5V)* PCS | |||
| Output overload | Load≥120% last for 15 minutes, load≥150% last for 30 seconds | |||
| Outout short circuit | The inverter is restarted 5 times ( the fault is not removed. Maintaining powering off must restart manually) | |||

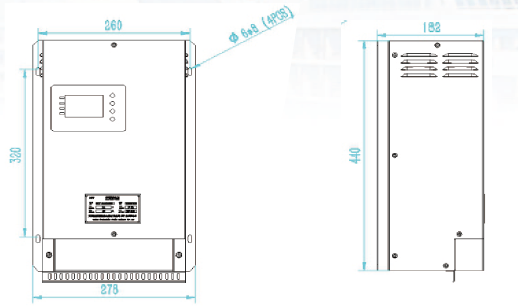

| Overall dimensions | 440*278*182 | 480*295*220 | 580*407*214 | |
| Installation dimensions | 320*260 | 360*276 | 355*389 | |
