Ship launching airbag
Product Specification Ship launching airbag consists of three parts: End ironwork,end taper body and cylinder body. Airbag interior is hollow and its wall is soft rubber composit...
PDF Datasheet
Product Specification
Ship launching airbag consists of three parts: End ironwork,end taper body and cylinder body.
Airbag interior is hollow and its wall is soft rubber composite structure to guarantee airbag bearing extreme pressure.
Both of the end ironworks contain same internal thread,which may be connected sealing plug with drag ring or pipeline accessories for air charging and discharing.
Airbag launch mode shortens considerably under-water launching ramp length and no emission discharges into water,so that is environment friendly.
The standard airbag diameter offered by our company are following: 0.8m,1.0m,1.2m,1.5m,1.8m,2.0m and 2.5m.The available length is decided by customer as order request. We would like to offer special size airbags as request.
Feature
1.long lifespan
2.movable and reusable
3.saving investment costs
4.saving labor and time
5.leading manufacturer of marine supplies
6.good air tightness
7.strict inspection
8.fine work

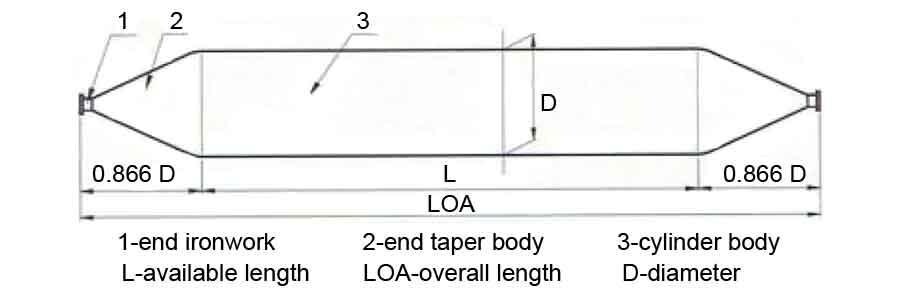

Airbag Configuration
Size:
| Diameter(m) | Effective Length(m) | Layer | Pressure(Mpa) |
| 1 | 10 | 5-6 | 0.07-0.1 |
| 1 | 12 | 5-6 | 0.07-0.1 |
| 1 | 15 | 5-6 | 0.07-0.1 |
| 1.2 | 10 | 5-6 | 0.08-0.12 |
| 1.2 | 12 | 5-6 | 0.08-0.12 |
| 1.2 | 15 | 5-6 | 0.08-0.12 |
| 1.5 | 12 | 5-8 | 0.08-0.16 |
| 1.5 | 15 | 5-8 | 0.08-0.16 |
| 1.5 | 18 | 5-8 | 0.08-0.16 |
| 1.5 | 20 | 5-8 | 0.08-0.16 |
| 1.5 | 24 | 5-8 | 0.08-0.16 |
| 1.8 | 12 | 5-8 | 0.08-0.15 |
| 1.8 | 15 | 5-8 | 0.08-0.15 |
| 1.8 | 18 | 5-8 | 0.08-0.15 |
| 1.8 | 20 | 5-8 | 0.08-0.15 |
| 1.8 | 24 | 5-8 | 0.08-0.15 |
| 2 | 18 | 6-10 | 0.08-0.18 |
| 2 | 20 | 6-10 | 0.08-0.18 |
| 2 | 24 | 6-10 | 0.08-0.18 |
| 2.5 | 18 | 7-10 | 0.07-0.13 |
| 2.5 | 20 | 7-10 | 0.07-0.13 |
| 2.5 | 24 | 7-10 | 0.07-0.13 |
