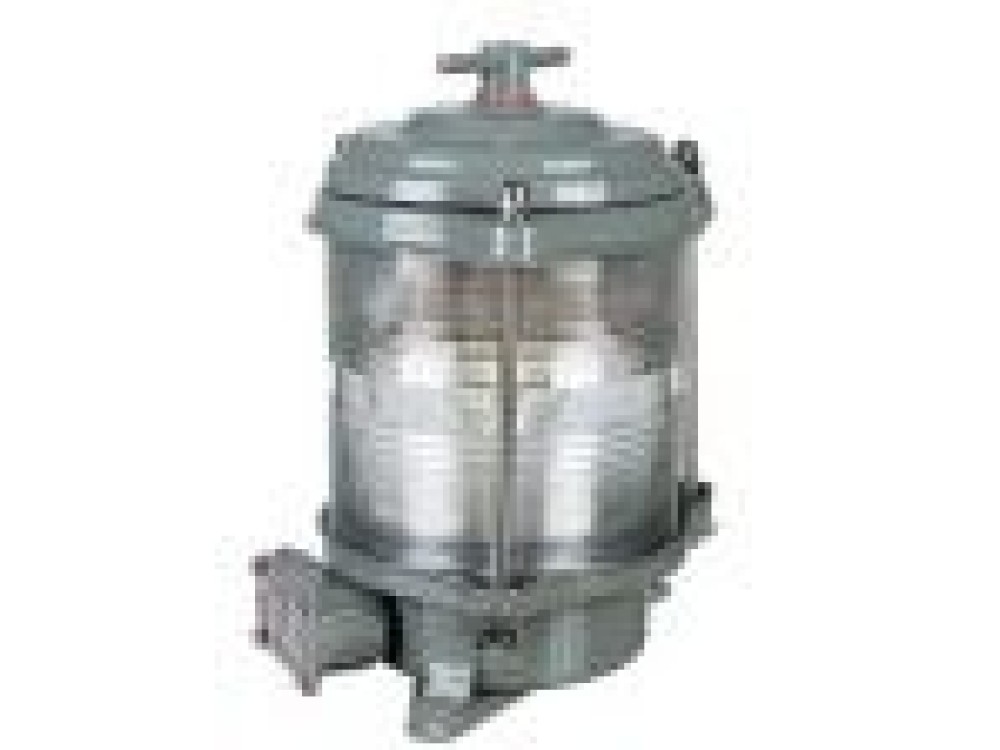

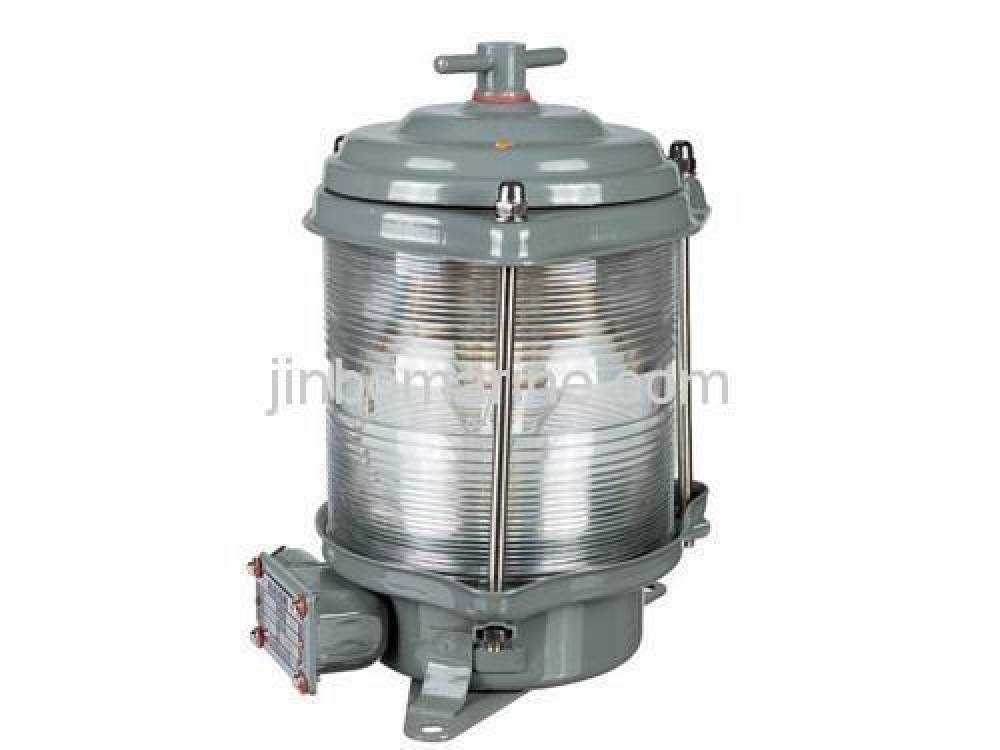

Single-Deck Navigation Signal Light CXH-1D
The Navigation Signal Light used to the ship with length 50M or above as lamp signal liaison when night navigation.
Single-Deck Navigation Signal Light CXH-1D
PDF Datasheet
We can supply according to your requirement.
China Single-Deck Navigation Signal Light CXH-1D:
The Navigation Signal Light used to the ship with length 50M or above as lamp signal liaison when night navigation.
Products Advantage:
1. Easy to install and replace with bulb.
2. The shell is made of steel, finished by special mold-powder with the feature of corrosion-resisting and shock resistance.
3. PC Material, UV resistance and non-discolouring.
Standards:
1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
| Voltage | 24V | 110V | 220V |
| Power | 60W | 65W | 65W |
| Lamp Holder | B22d | ||
| Protection Class | IP55 | ||
| Cable Diameter | Dia.14-16 | ||
| Name | Type | Visibility | Level Arc | Color | Weight |
| Starboard Light | CXH1-1D | 3n.m | 112.5o | Green | 4.9KGS |
| Port Light | CXH2-1D | 3n.m | 112.5o | Red | 4.9KGS |
| Masthead Light | CXH3-1D | 6n.m | 225o | White | 4.9KGS |
| Stern Light | CXH4-1D | 3n.m | 135o | White/Yellow | 4.9KGS |
| All-round- Light | CXH6-1D | 3n.m | 360o | Red/green/white | 4.9KGS |
