Single-Deck Navigation Signal Light CXH-3
The Navigation Signal Light used to the ship with length 12M or above as lamp signal liaison when night navigation.
Loading product images...

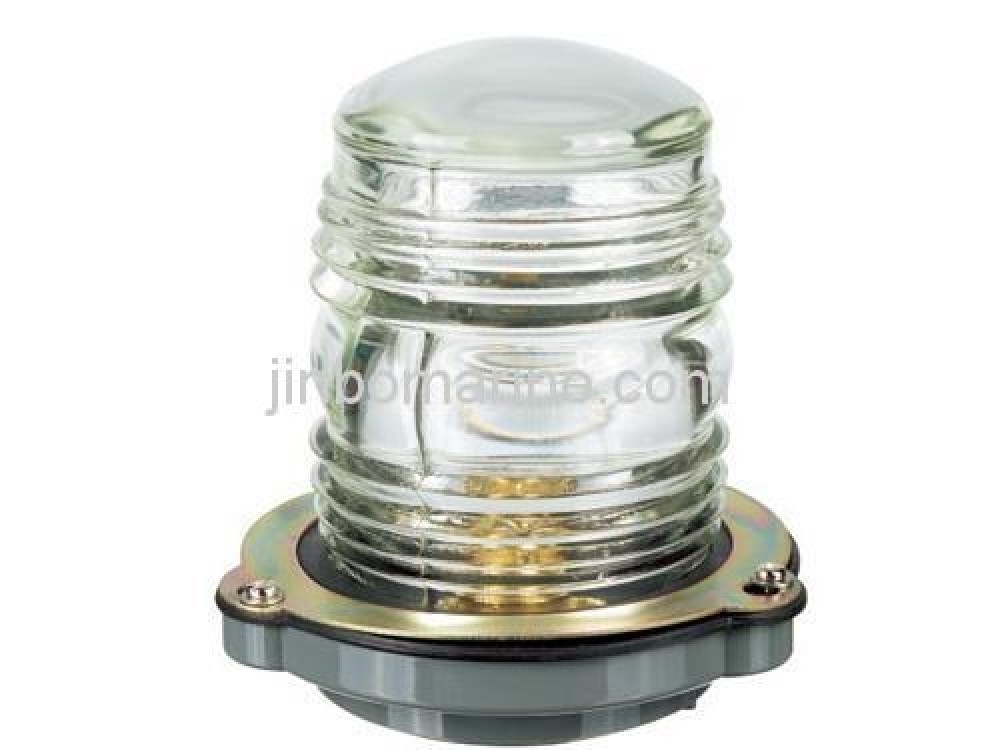

Single-Deck Navigation Signal Light CXH-3
PDF Datasheet
We can supply according to your requirement.
China Single-Deck Navigation Signal Light CXH-3:
The Navigation Signal Light used to the ship with length12M or above as lamp signal liaison when night navigation.
Standards:
1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
| Voltage | 12V/24V |
| Power | 25W |
| Lamp Holder | B15d |
| Protection Class | IP55 |
| Cable Diameter | Dia.14 |
| Name | Type | Visibility | Level Arc | Color | Weight |
| Starboard Light | CXH1-3 | 1n.m | 112.5o | Green | 1.05KGS |
| Port Light | CXH2-3 | 1n.m | 112.5o | Red | 1.05KGS |
| Masthead Light | CXH3-3 | 2n.m | 225o | White | 1.0KGS |
| Stern Light | CXH4-3 | 2n.m | 135o | White/Yellow | 1.05KGS |
| All-round- Light | CXH6-3 | 2n.m | 360o | Red/green/white | 0.85KGS |
