Snap-Hook-DIN5299-Form-C-SS304-OR-SS316-Steel-Electric-Galvanized-CSSH09
SIZE ΦA mm B mm C mm D mm F mm W.L.L LBS 4*40 4 ...
Loading product images...

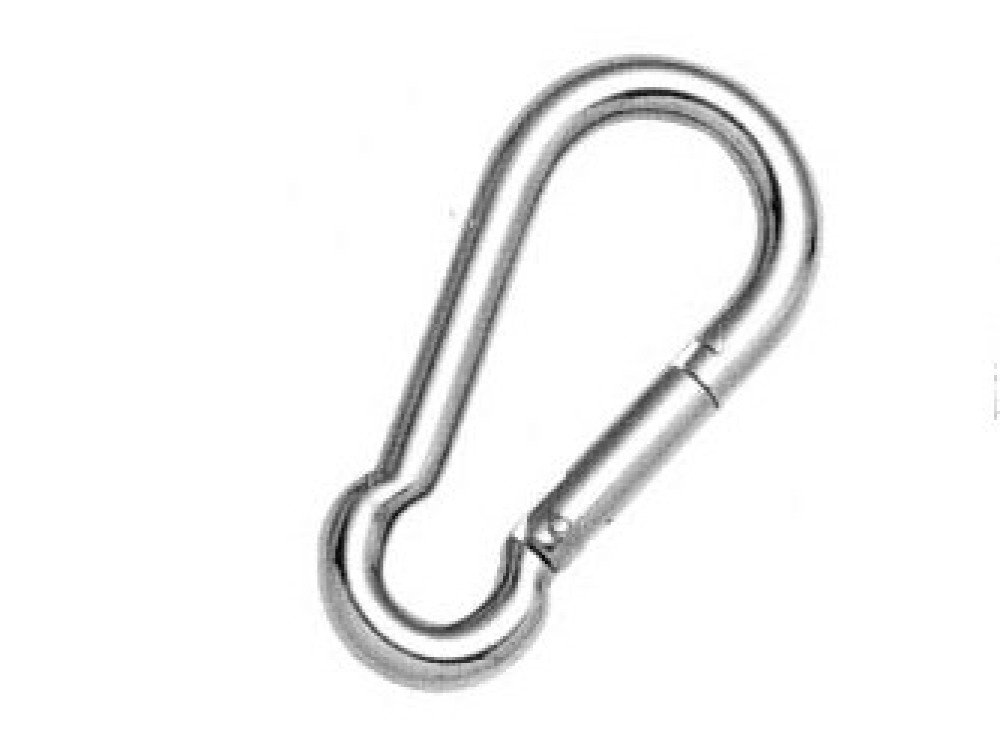

Snap-Hook-DIN5299-Form-C-SS304-OR-SS316-Steel-Electric-Galvanized-CSSH09
PDF Datasheet
We can supply according to your requirement.
China Snap-Hook-DIN5299-Form-C-SS304-OR-SS316-Steel-Electric-Galvanized-CSSH09:
| SIZE | ΦA mm | B mm | C mm | D mm | F mm | W.L.L LBS |
| 4*40 | 4 | 20 | 40 | 7 | 7 | 80 |
| 5*50 | 5 | 25 | 50 | 8 | 7 | 100 |
| 6*60 | 6 | 30 | 60 | 9 | 8 | 140 |
| 7*70 | 7 | 35 | 70 | 10 | 8 | 200 |
| 8*80 | 8 | 40 | 80 | 12 | 9 | 250 |
| 9*90 | 9 | 45 | 90 | 12 | 10 | 280 |
| 10*100 | 10 | 50 | 100 | 15 | 11 | 400 |
| 11*120 | 11 | 57 | 120 | 18 | 16 | 500 |
| 12*140 | 12 | 67 | 140 | 20 | 19 | 600 |
| 13*160 | 13 | 74 | 160 | 22 | 25 | 700 |
| 14*180 | 14 | 86 | 180 | 22 | 35 | 900 |
