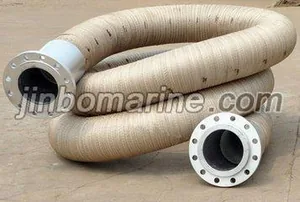

Standard Duty Fuel and Oil Hoses
General description
The Standard Duty Fuel and Oil hoses are manufactured from multi-layers of polypropylene fabric and film with a weatherproof and abrasion resistant outer cover. The layers are held and tensioned between internal and external wire helices. Computer aided design has resulted in exceptional strength to weight ratios and extreme flexibility, giving the hoses excellent handling characteristics. This ensures ready operator acceptance and encourages good usage practice. Specializes in producing oil hoses, fuel hoses, suction hoses, pvc suction hose pipe, such as hose suction professional products. All hoses get the approval of international standards including EN 13765, BS 3492 AX + BX and BS5842, and can be supplied with factory fitted end connections to the customer’s requirements.
Applications
The Standard duty fuel and oil hoses are specifically engineered for the transfer of hydrocarbons, including oils, petrol, diesel, lubricating oils, paraffin and 100% aromatics.
Construction
Inner wire: Galvanized steel
Lining: Polypropylene
Outer cover: Polyester PVC coated blue
Outer Wire: Galvanized steel
Physical properties
Proof pressure: 1.5 maximum working pressure
Maximum elongation: less than 10%
Maximum twist: less than 10 degree/m
Electrical resistance: less than 10 ohm
Vacuum range: 0.9bar
Min. bursting pressure: 4:1
Temperature range: -30 degree to +80degree
Specification
| Nominal diameter | Max. working pre. | Bend radius | Weight | Maximum length | |||||
| Inches | Mm | PSI | Bar | Inches | Mm | Lbs/Ft | Kg/m | Ft | m |
| 1 | 25 | 150 | 10 | 5.90 | 150 | 0.77 | 1.15 | 65 | 20 |
| 1.5 | 40 | 150 | 10 | 5.90 | 150 | 1.01 | 1.50 | 65 | 20 |
| 2 | 50 | 150 | 10 | 6.90 | 175 | 1.24 | 1.85 | 65 | 20 |
| 2.5 | 65 | 150 | 10 | 6.90 | 175 | 1.57 | 2.35 | 65 | 20 |
| 3 | 80 | 150 | 10 | 11.80 | 300 | 2.79 | 4.15 | 65 | 20 |
| 4 | 100 | 150 | 10 | 13.80 | 350 | 3.23 | 4.80 | 65 | 20 |
| 6 | 150 | 150 | 10 | 20.70 | 525 | 7.12 | 10.60 | 80 | 24 |
| 8 | 200 | 150 | 10 | 27.55 | 700 | 10.21 | 15.20 | 80 | 24 |
| 10 | 250 | 150 | 10 | 35.45 | 900 | 13.45 | 20.00 | 50 | 15 |
| 12 | 300 | 150 | 10 | 43.30 | 1100 | 16.10 | 24.00 | 50 | 15 |
This information is for reference only, dimensions and weight are approximate.
