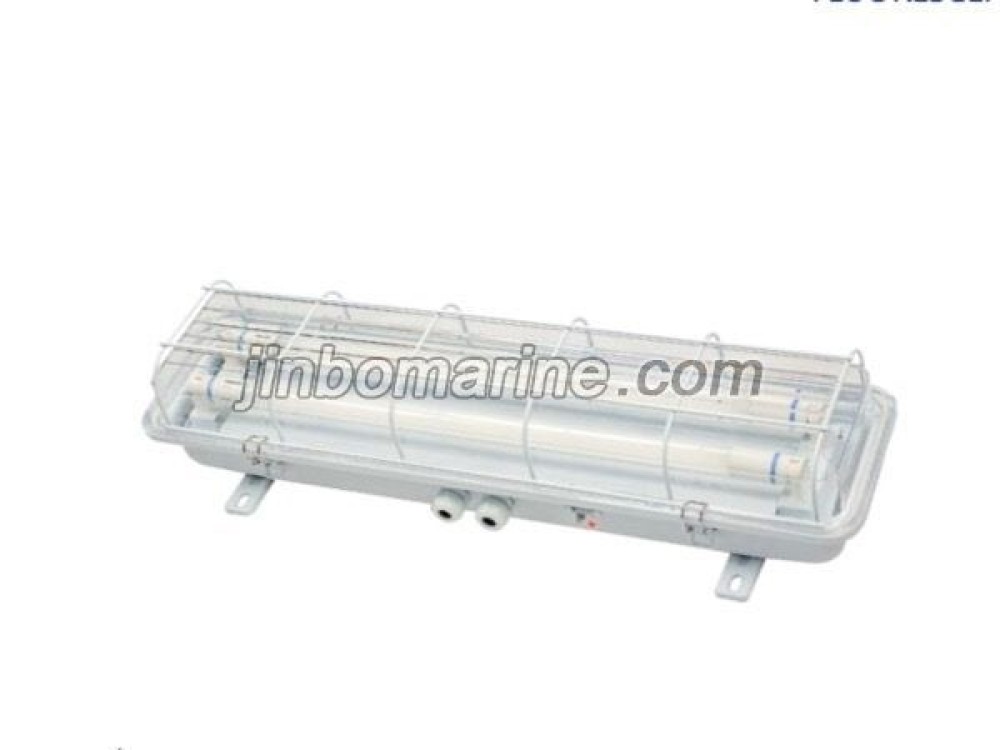

TCY20-2 Fluorescent Pendant Light
Application Applied to illumination of water dripping, water spattering, water coagulating place in military ship and ship, such engine room, dry cabin, tunnel, pepeline and weater dec...
TCY20-2 Fluorescent Pendant Light
PDF Datasheet
We can supply according to your requirement.
Application
Applied to illumination of water dripping, water spattering, water coagulating place in military ship and ship, such engine room, dry cabin, tunnel, pepeline and weater deck etc.
| Protection Class | Application |
| IP20 | Dry Living Cabin and dry control room |
| IP22 | Sterring room, Refrigeator toom, emergency engine room, store room |
| IP34 | Engine Room, boile room, steering gea room and aux machinery room |
| IP44 | Bath roo, Machienry space, gallery and laundry |
| IP55 | Engine room |
| IP56/IP66/IP67 | Open Deck |
| IP68 | Waterh deck and 20M underwater |
Product Feature
1. Shell is good quality steel plate.
2.Lampshade adopts injection of AS with metal guard.
3. Environment temperature is -20-45 degree with the scope of work
4. Cable gland material: stainless steel, brass, bylon, protection class is IP56.
5. Stainless steel material should be selected for outdoor lighting.
Standard
1. Chapter 3, Part 4 of Classification Society Rules for Classification of Sea-going Steel Ships 2015 and its Amendments;
2.GB7000.1-2015，Luminaires –Part1:General requirements and tests.

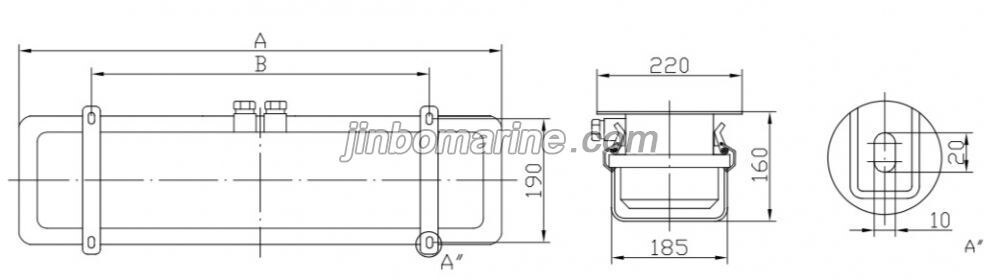

Specification
| Type | Voltage | Power | Lamp Holder | Material | Size | Weight |
| TCY20-2 | 110/220V 50/60Hz | 2x18W | G13 | Steel/SS | 715x500 | 5.1kg |
| TCY20-2E | Steel/SS | 5.3kg | ||||
| TCY40-2 | 2x36W | Steel | 1330x1100 | 8.6kg | ||
| TCY40-2E | Steel | 8.8kg |
