TYA Series Lubricant Oil Purifier
TYA series oil filter: Widely used in electric power, metallurgy, mining, machinery, chemical, transportation, manufacturing, food and other industries, the hydraulic oil, frozen o...

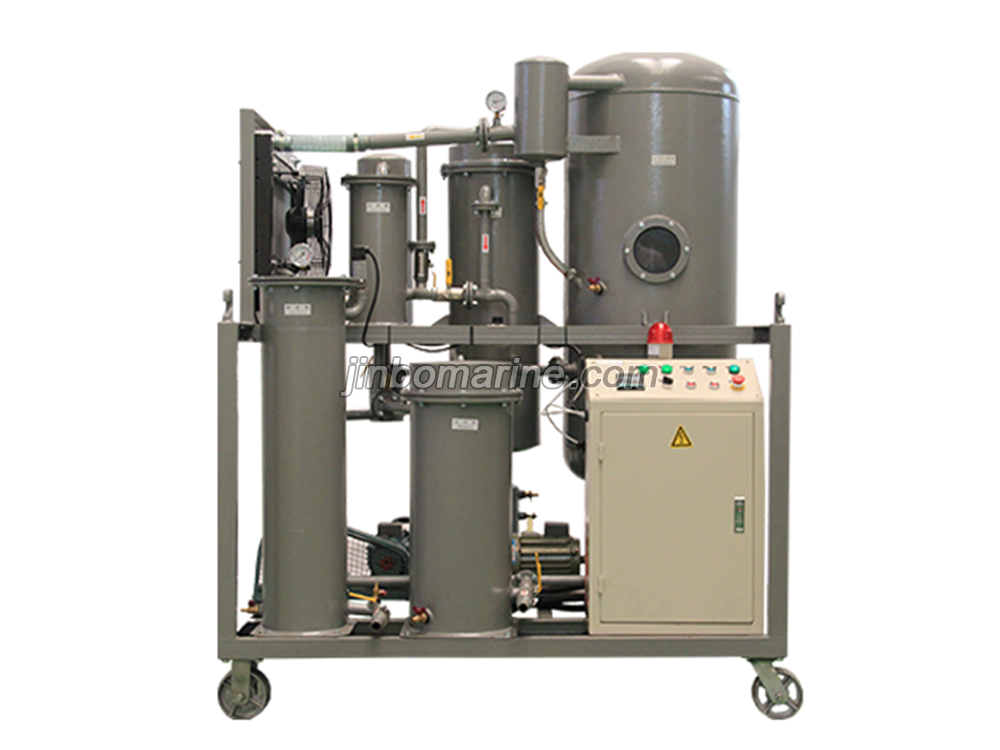

TYA Series Lubricant Oil Purifier
PDF Datasheet
We can supply according to your requirement.
China TYA Series Lubricant Oil Purifier:
TYA series oil filter:
Widely used in electric power, metallurgy, mining, machinery, chemical, transportation, manufacturing, food and other industries, the hydraulic oil, frozen oil, compressor oil, gear oil, vacuum pump oil, engine oil, heat treatment oil purification.
Technical features:
1. This function can effectively remove the iron, dust, impurities, moisture and harmful compounds in the oil, but also remove organic acids and inorganic acids in oil, to restore the performance of lubricants.
2. It has a strong ability to break the emulsion, which is easy to separate a large amount of water in the oil, but also facilitate the removal of trace water in oil.
The ability of u to filter out impurities is strong, and the filtering area and precision are increased by using special filter material. A large area of deep level precision filter can remove the fine particles in the oil, while the machine automatic backwashing function can automatically clean the impurities on the filter can be used for interception, system cleaning device, to make a serious oil pollution system can be restored to the control standard.
3. It uses the automatic level control system, automatic temperature control system, automatic control system, automatic defoaming pressure protection system, automatic interlock protection system and efficient degassing water removal system, ensure the safety of equipment with high performance.
4. online oil filter, unattended.
5. It uses the initial hot oil circulation system, especially suitable for high viscosity lubricating oil processing
Technical Data:
| Item | Unit | TYA-10 | TYA -20 | TYA -30 | TYA-50 | TYA -100 | TYA -150 | TYA -200 | TYA -300 | |
| Flow Rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | |
| working vacuum | Mpa | -0.06～-0.095 | ||||||||
| working Preuusre | Mpa | ≤0.4 | ||||||||
| Constant temperature control range | ℃ | 20 ～80 | ||||||||
| power | / | 380V/50HZ or at user's option | ||||||||
| noise db(A) | dB(A) | ≤65～80（depend on user's requirement） | ||||||||
| Fult-free working hours | h | ≥4000 | ||||||||
| continuous hours | h | ≥150 | ||||||||
| Heating power | Kw | 30 | 30 | 30 | 45 | 72 | 96 | 144 | 192 | |
| Total Power | Kw | 32 | 32 | 32 | 48 | 78 | 105 | 152 | 202 | |
| Inlet(outlet) diameter | mm | Φ25 | Φ25 | Φ25 | Φ32 | Φ42 | Φ50 | Φ50 | Φ60 | |
| weight | kg | 350 | 420 | 450 | 550 | 800 | 950 | 1200 | 1500 | |
| After filteration | water content | ppm | Trace（GB/T260） | |||||||
| gas content | % | ≤0.1（GB/T423） | ||||||||
| Mechanical impurities | / | （GB/T511） | ||||||||
| granularity | μm | 5（at user's option） | ||||||||
