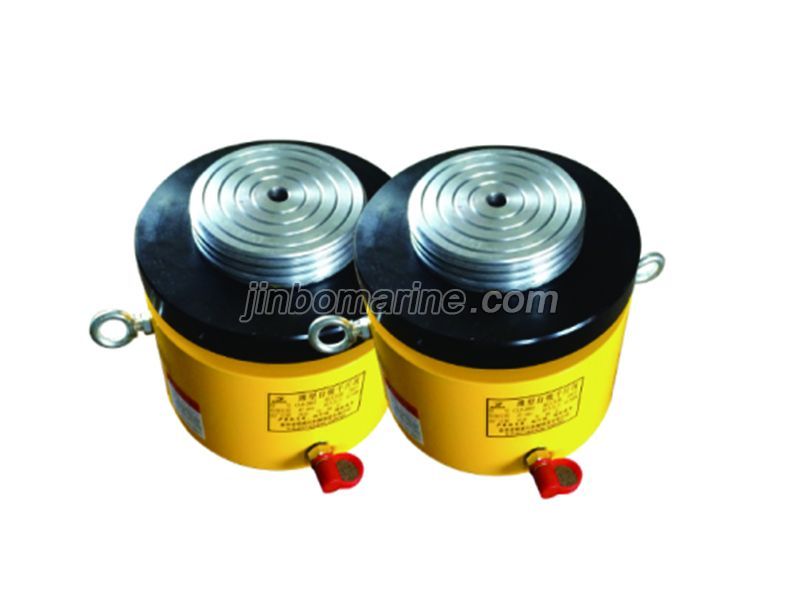

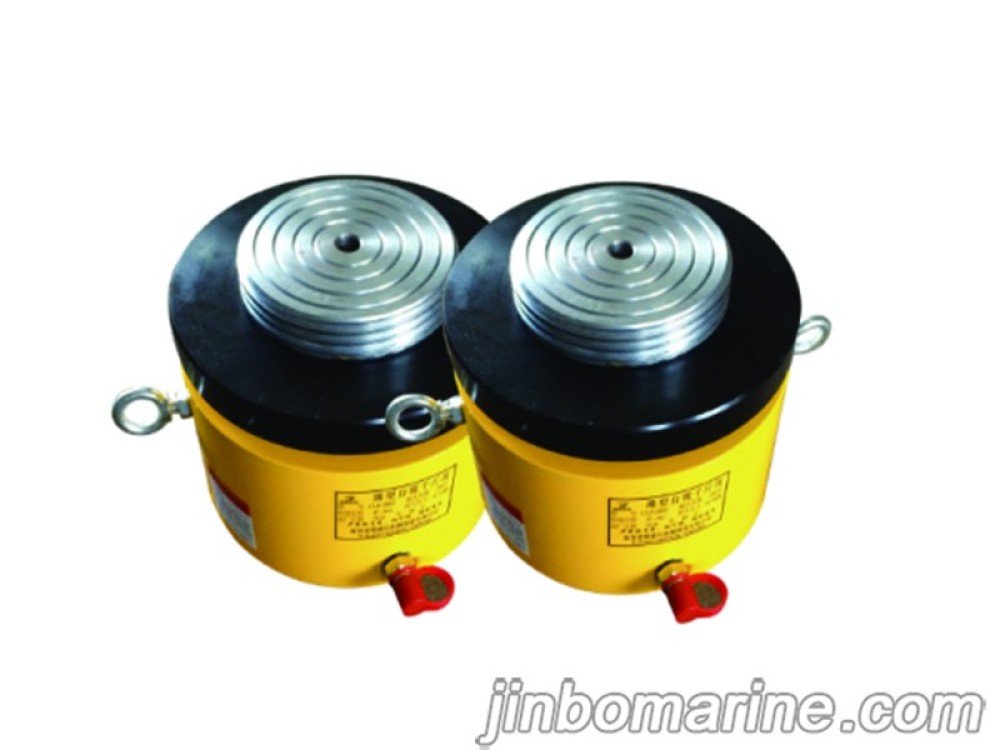

Thin Self-Locking Jack
Product features:
Low profile design for tight spaces where standard cylinders cannot be used.
Nut self-locking for long-term safe and secure load support.
Single-acting design, gravity reset.
Special composite coating for increased corrosion resistance and reduced friction for flexible movement.
Overflow hole and limited stroke function.
| Model | T Capacity | mm Stroke | mm Height | mm Max Height | mm Diameter | kg Weight |
| CLP-602 | 60 | 50 | 125 | 175 | 140 | 15 |
| CLP-1002 | 100 | 50 | 137 | 187 | 175 | 26 |
| CLP-1602 | 160 | 45 | 148 | 193 | 220 | 44 |
| CLP-2002 | 200 | 45 | 155 | 200 | 245 | 57 |
| CLP-2502 | 250 | 45 | 159 | 204 | 275 | 74 |
| CLP-4002 | 400 | 45 | 178 | 223 | 350 | 134 |
| CLP-5002 | 500 | 45 | 192 | 237 | 400 | 189 |
