Type D18 D Shackle with Roulette Thimble
Material : Alloy steel, Grade R3/R3S/R4/R4S/R5 . Finish : Shackle: Painted Roulette thimble: Galvanized (MODU: Painted) . Temperature range : -40°C up to +200°C, Polar Rate...
Loading product images...

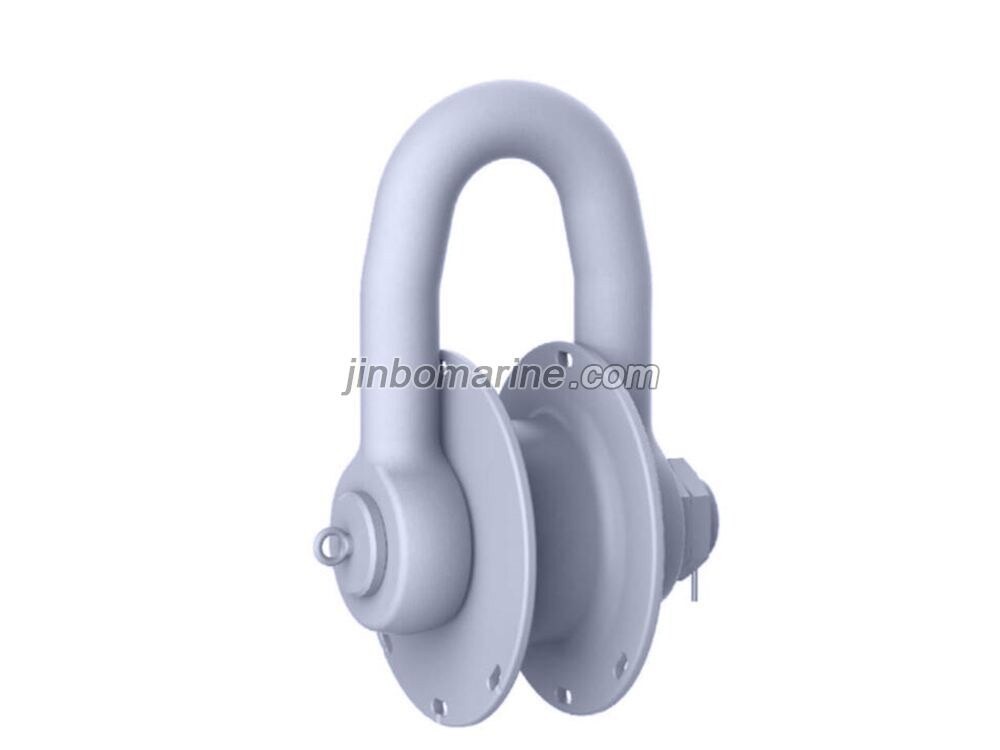

Type D18 D Shackle with Roulette Thimble
PDF Datasheet
We can supply according to your requirement.
China Type D18 D Shackle with Roulette Thimble:
Material : Alloy steel, Grade R3/R3S/R4/R4S/R5 .
Finish : Shackle: Painted Roulette thimble: Galvanized (MODU: Painted) .
Temperature range : -40°C up to +200°C, Polar Rated .
Standard certification : Certificate of Conformity 3.1 material certificate EN 10204.

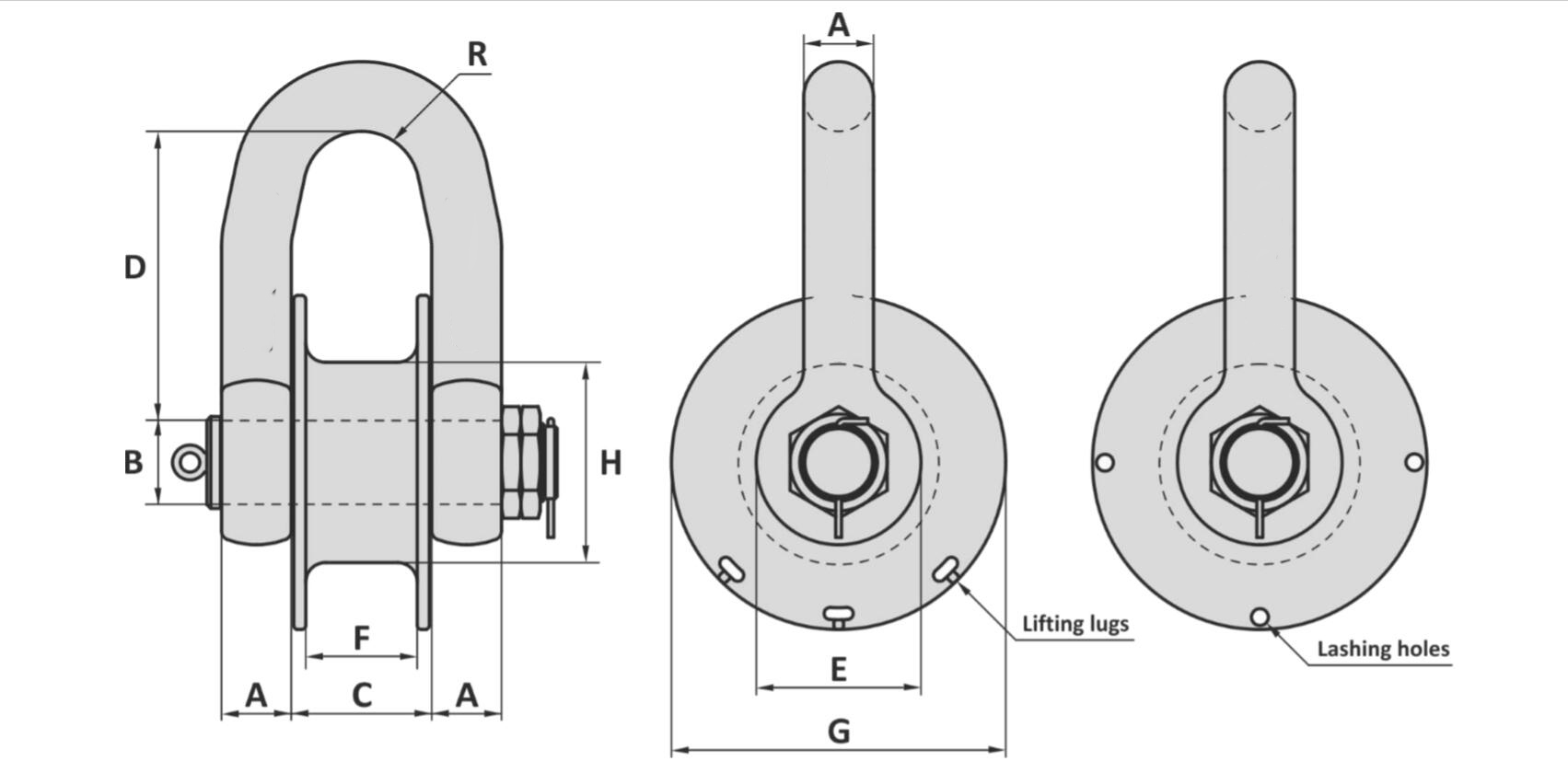

| PL(KN) | BL(KN) | Type | A | B | C | D | E | F | G | H | R | Weight(kg) |
| 4886 | 6965 | A | 108 | 125 | 215 | 545 | 230 | 160 | 580 | 360 | 90 | 409 |
| 8478 | 10754 | A | 144 | 168 | 290 | 600 | 340 | 230 | 690 | 414 | 120 | 794 |
| 10700 | 13573 | A | 165 | 180 | 310 | 600 | 330 | 250 | 750 | 450 | 140 | 974 |
| 11889 | 15059 | A | 175 | 200 | 310 | 620 | 370 | 250 | 750 | 450 | 130 | 1107 |
