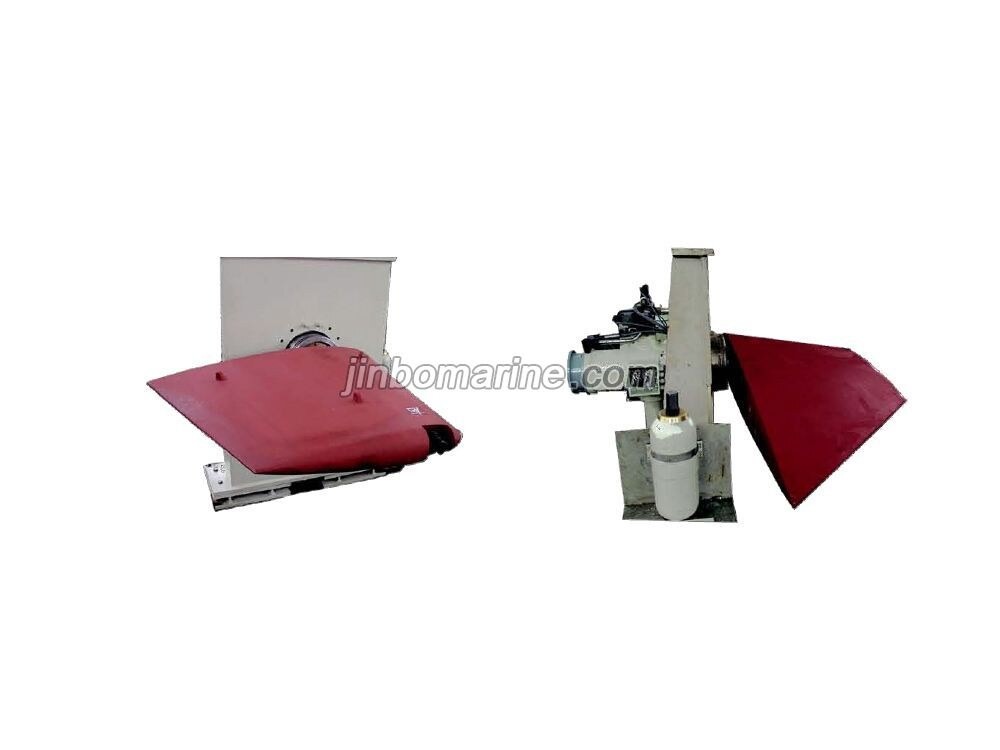

Type JQB Light-small Fin Stabilizer
Type light-small fin stabilizer is composed of Actuators, Fins, Fin boxes, Hydraulic Units, and Electrical Units, etc. Characteristic Type Light-small fin stabilizer has s...
Type JQB Light-small Fin Stabilizer
PDF Datasheet
We can supply according to your requirement.
China Type JQB Light-small Fin Stabilizer:
Type light-small fin stabilizer is composed of Actuators, Fins, Fin boxes, Hydraulic Units, and Electrical Units, etc.
Characteristic
Type Light-small fin stabilizer has sever virtues, such as light in weight, compact design, good reliability, relative low prices and so on.
Use one Hydraulic Power Unit for each fin, the light-small fin stabilizer is specifically designed with one HPU for Two fins, making the equipment more compact and reliable.
Application
Due to the compact design, this type of fin stabilizer is especially suitable for small vessels with the displacement about 100-300 tons, such as passenger ships, coast guard vessels, yachts, ferries, and boats.
Type JQB Light-small Fin Stabilizer Parameter Specification
| No. | Name | Shape size(mm) | Weight(kg) | Quantity |
| 1 | Actuator | ⌀520x1947.5 | 421 | 2 |
| 2 | Fin | 1000x1000 | 185 | 2 |
| 3 | Hydraulic Unit | 1070*495*880 | 320 | 1 |
| 4 | Control Box | 430*720*300 | 45 | 1 |
| 5 | Control Panel | 170*220*176 | 5 | 1 |
| 6 | Accumulator Assembly | ⌀150x702 | 22 | 2 |
