UKS Type Tank Level Alarming Device
Product Desciption: It consists of level controller,safey barrier and alarming control panel.The device have set the alarming for overfill 95% of tank height and 98% of tank height ind...

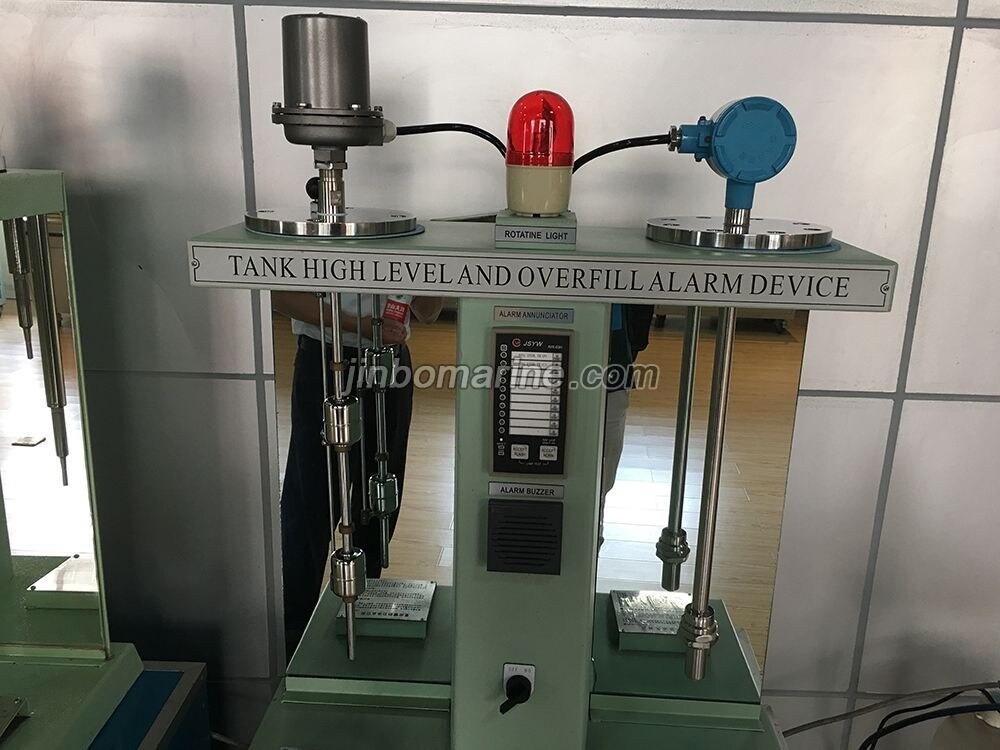

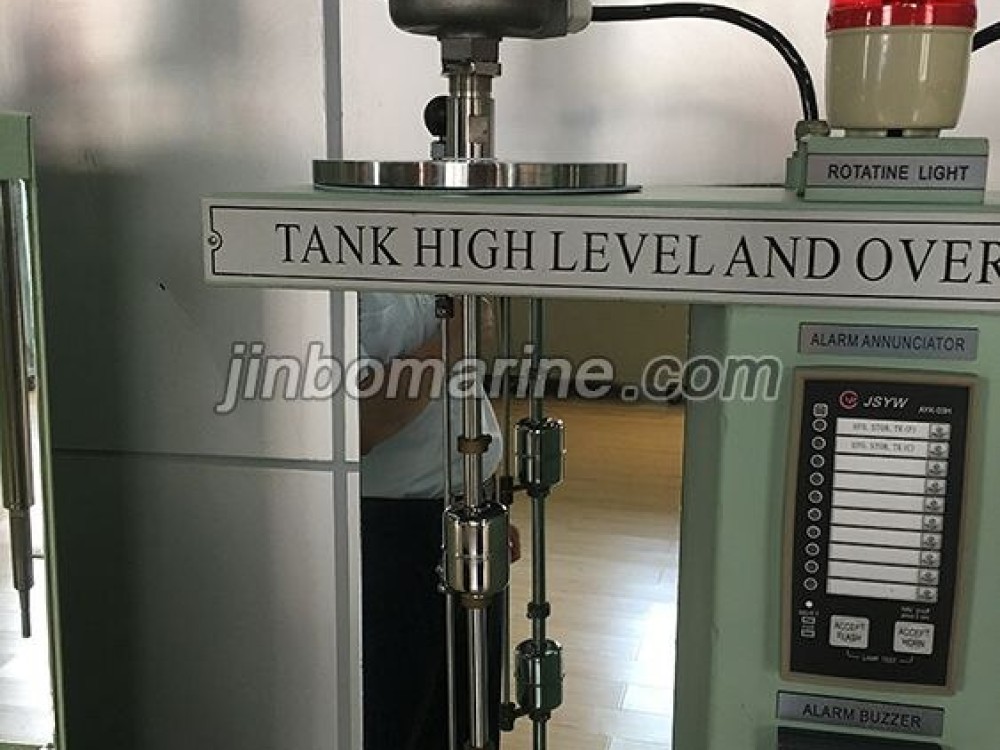

UKS Type Tank Level Alarming Device
PDF Datasheet
We can supply according to your requirement.
Product Desciption:
It consists of level controller,safey barrier and alarming control panel.The device have set the alarming for overfill 95% of tank height and 98% of tank height independently. Suitable for level monitoing and alarm of oil tankers,chemical tanker and other carriers.
Features:
High quality element make sure the reliable performance.
Suitable for various liquids
Compact construction.
Manual self-testing device can check its function.
Working Principle:

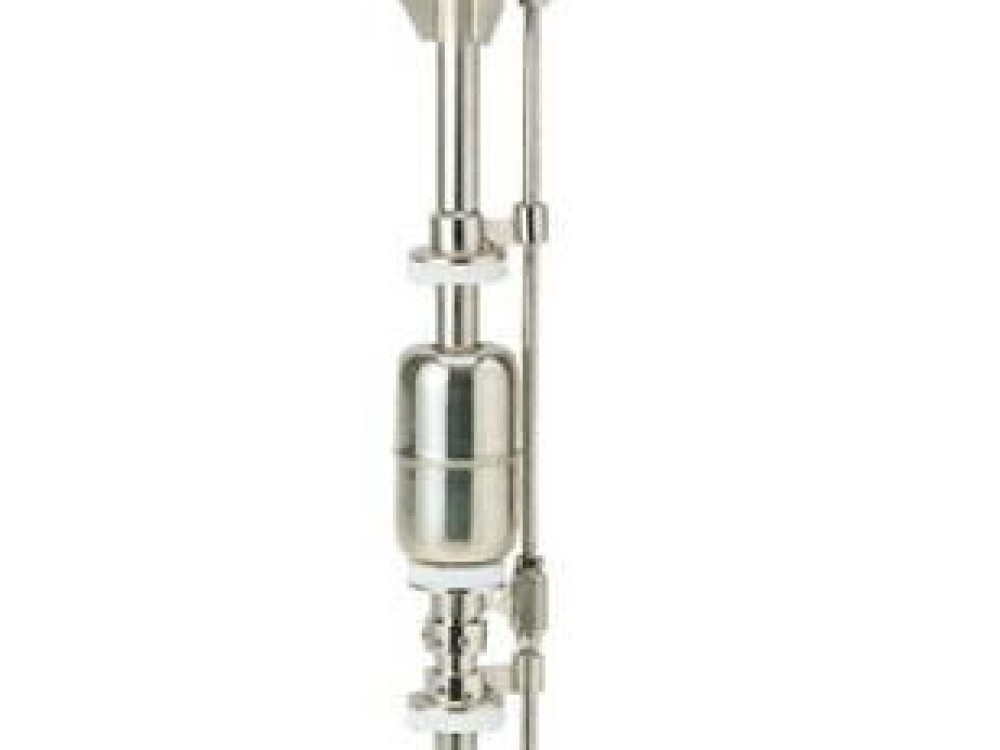

When the liquid height in the tank reaches a alarm setting point,the relevant reed switches at high level and overfill level are actuated by magnetic float level controller, output switch alarm signal. This signal is transfered to alarm module on the alarm control board through safety barrier,and provides audible and visual alarm,and it can extend the output voice and visual alarm signal.

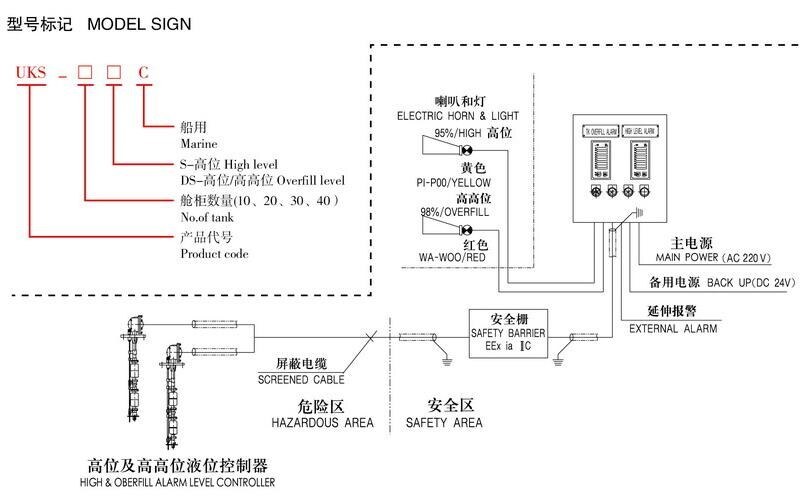

Model Sign:
Function:
It is suitable for monitoring the liquid level in many tanks, it adopt light and audio output alarm signal. Control module can monitor the alarm status of every tank, can generate audible or visible alarm through buzzer, and output extend the signal of audible and visible alarm.
