Vertical Type Air Cooling Water Cooling Marine Air Compressor
Medium pressure: 3.0 MPa or 30 bar. Type:air cooling or water cooling. Suitable for air bottle equal or smaller than 0.32 m3. Application Marine air compressors, comp...
Loading product images...

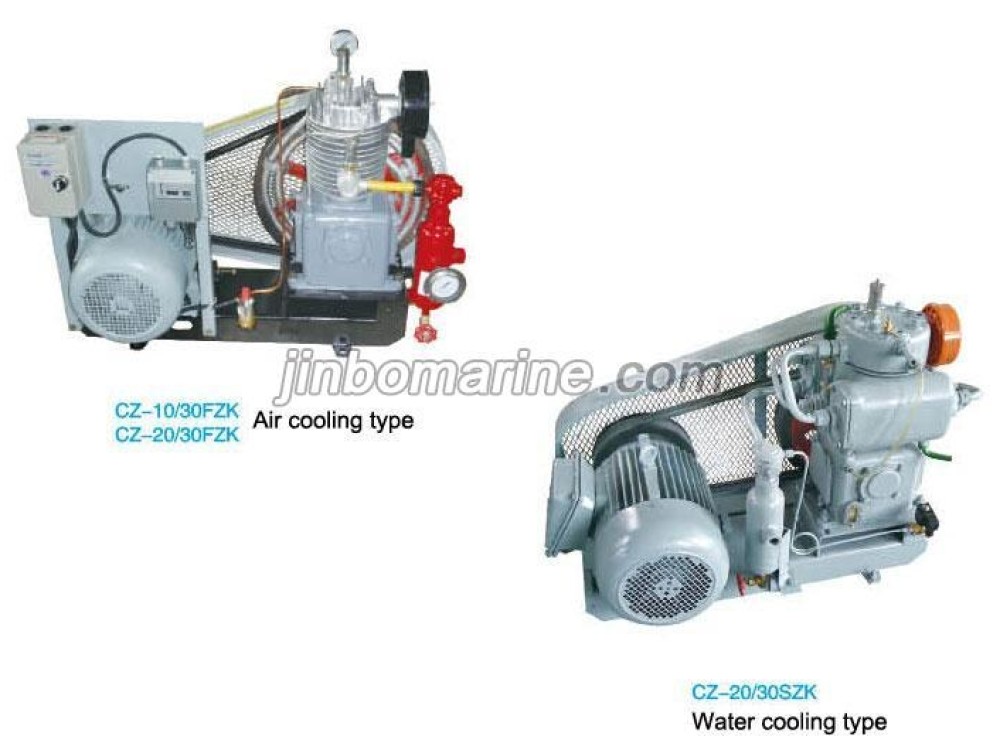

Vertical Type Air Cooling Water Cooling Marine Air Compressor
PDF Datasheet
We can supply according to your requirement.
China Vertical Type Air Cooling Water Cooling Marine Air Compressor:
Medium pressure: 3.0 MPa or 30 bar.
Type:air cooling or water cooling.
Suitable for air bottle equal or smaller than 0.32 m3.
Application
Marine air compressors, compressor for oil field, compressor for plastic machinery, textile machinery, natural gas filling station
Feature
High Efficiency,energy saving,low noise.
Specification
| Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Weight | Overall size | |
| m3/h | m3/min | Mpa | r/min | KW | kg | mm | ||
| CZ-20/30 | Vertical type Second stage compression Piston type | 20 | 0.33 | 3 | 1000 | 5.5 | 210 | 970x490x710 belt type 1130x510x710 water cooling type |
| CZ-10/30 | 10 | 0.167 | 500 | 3.0 | ||||
