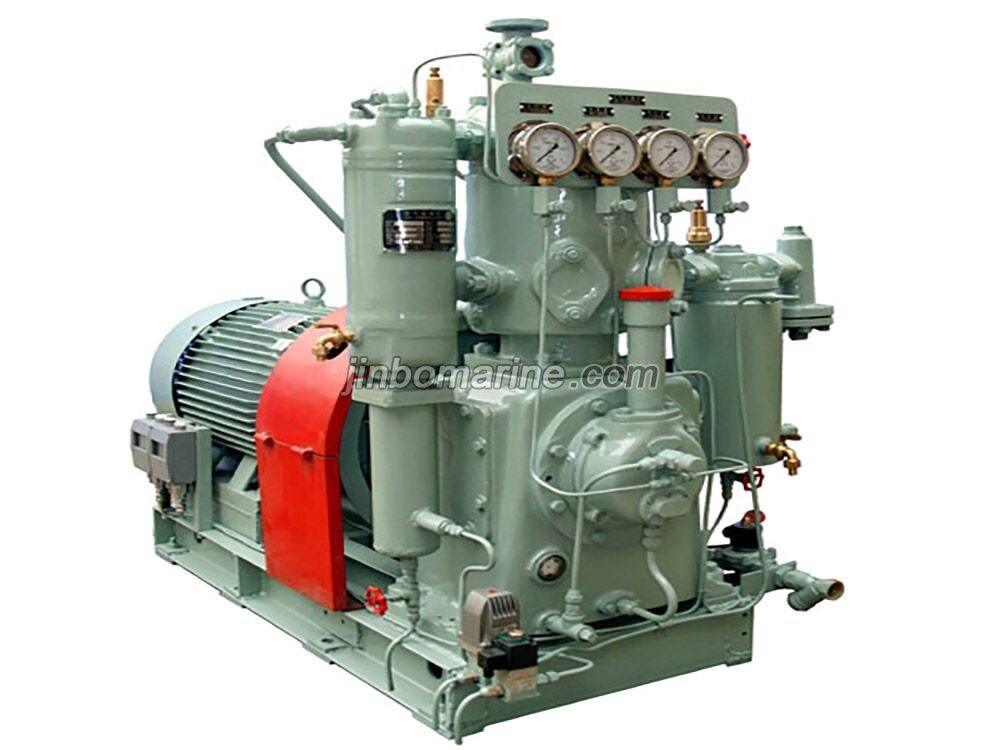

Water-cooling Vertical Type Two Stage Compressed Tanabe Air Compressor HC-64A
HC-64A air compressor is mainly used in large and medium-sized ship and stationary diesel engine starting, also can be used as other industrial departments and the origin of compressed air...
Water-cooling Vertical Type Two Stage Compressed Tanabe Air Compressor HC-64A
PDF Datasheet
We can supply according to your requirement.
China Water-cooling Vertical Type Two Stage Compressed Tanabe Air Compressor HC-64A:
HC-64A air compressor is mainly used in large and medium-sized ship and stationary diesel engine starting, also can be used as other industrial departments and the origin of compressed air pressure test.
Institutional characteristics
1. HC-64A air compressor is vertical, water cooling, and the secondary compression.
2. Cooling, pressure equalization, pump pressure can be adjusted.
3. Equipped with automatic control system according to the requirement of the customers.
4. Automatic control functions: automatic start, automatic stop, automatic unloading, low voltage alarm, oil discharge ultra-high alarm, and low pressure alarm.
Specification
| Compressor type | HC-64A | ||
| Type | Vertical,Water-Cooled,Two-stage Compression | ||
| Quantity of Air Supply (m3/h) | 54 | 65 | 72 |
| Pressure Rating (MPa) | 3 | ||
| Stalk Power (kw) | 12.5 | 15.2 | 16.5 |
| Rotation Rating (r/min) | 730 | 870 | 960 |
| Quantity of Cooling Water (m3/h) | 1.0-1.4 | ||
| Lubricating System | Forced Lubrication by Gear Pump | ||
| Lubricate Trademark | L-DAB-100（GB12691） | ||
| Type of Unloader | Manual,Total closure suction type or Magnetic Unloader Valve | ||
| Method of Driving | Direct Coupling | ||
| Motor | |||
| Model | Y200L-8-H | Y225S-8-H | Y200L1-6-H |
| Power (kw) | 15 | 18.5 | 18.5 |
| Rotation (r/min) | 730 | 870 | 960 |
| Gradeprotection | IP44 | ||
| Ins Class | B | ||
| Voltage (V) | 380 | 440 | 380 |
| Frequency ( HZ) | 50 | 60 | 50 |
| Shape size (mm) | 1424×890×1190 | ||
| Weight (kg) | 700 | ||
