XH05-4-24 Series Self-contained Medium Pressure Oil Injector
XH05-4-24 series self-contained medium pressure oil injector Oil filling pump head 4-24 Maximum oil filling capacity of single pump: 0.35cc/stroke Plunger diameter of oil f...
XH05-4-24 Series Self-contained Medium Pressure Oil Injector
PDF Datasheet
We can supply according to your requirement.

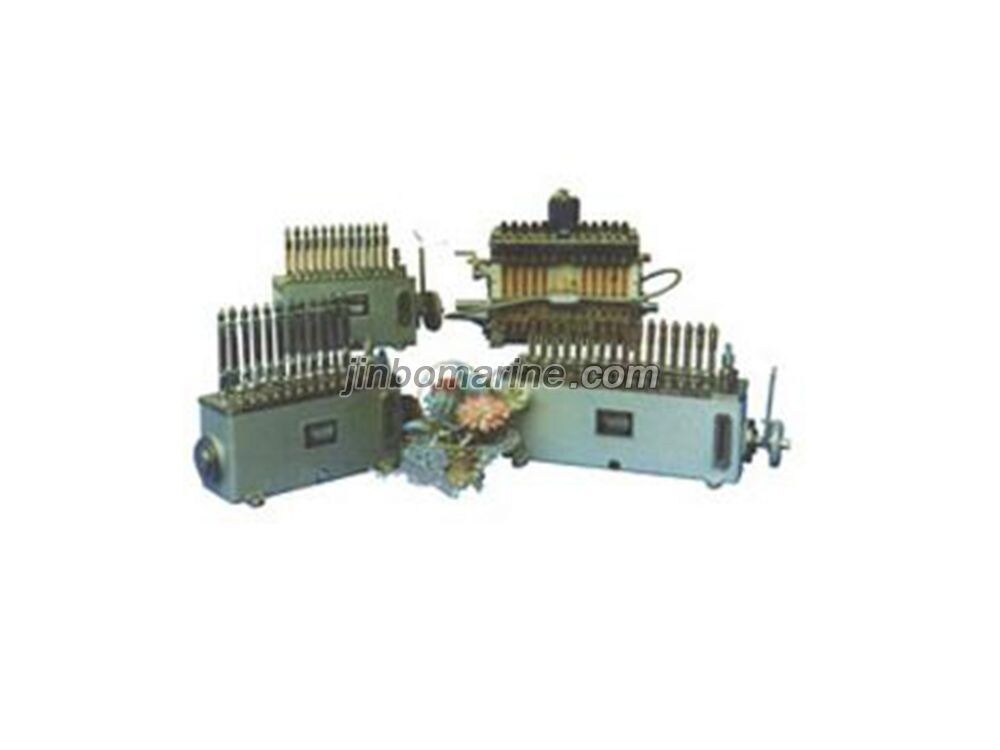

XH05-4-24 series self-contained medium pressure oil injector
Oil filling pump head 4-24
Maximum oil filling capacity of single pump: 0.35cc/stroke
Plunger diameter of oil filling pump 8m / M
Oil regulation range 0 - Maximum
Maximum working stroke of plunger: 8m / M
Camshaft speed 12-30 rpm
Maximum working pressure 85kg / cm2
XH05-4-24 series self-contained medium-pressure oil injector is a self-contained swing type, which is driven by the main shaft to drive the pendulum rod to work. Used for lubricating the cylinders of various marine low-speed and medium-speed diesel engines. The product has a reasonable structure, convenient and flexible adjustment of the oil supply, can be monotonous, and the total oil supply can be displayed clearly, and the operation is convenient. This product is also suitable for pressure lubrication of various mechanical transmission equipment, such as chemical fertilizer, gas making, petrochemical equipment and other equipment, as well as punching, forging, and light textile industrial machinery.
Data sheet:
| Character/Size | Rated oil feeding pressure | Plunger diameter | Max plunger stocke | Max single pump oil feeding volume | Number of oil pump | Rotating shaft speed |
| kg/cm2 | mm | mm | 10-30 | |||
| -4 | 80 | φ8 | 8 | 0-0.35 | 4 | 10-30 |
| -6 | 80 | φ8 | 8 | 0-0.35 | 5 | 10-30 |
| -8 | 80 | φ8 | 8 | 0-0.35 | 8 | 10-30 |
| -10 | 80 | φ8 | 8 | 0-0.35 | 10 | 10-30 |
| -12 | 80 | φ8 | 8 | 0-0.35 | 12 | 10-30 |
| -16 | 80 | φ8 | 8 | 0-0.35 | 16 | 10-30 |
| -20 | 80 | φ8 | 8 | 0-0.35 | 20 | 10-30 |
| -24 | 80 | φ8 | 8 | 0-0.35 | 24 | 10-30 |
