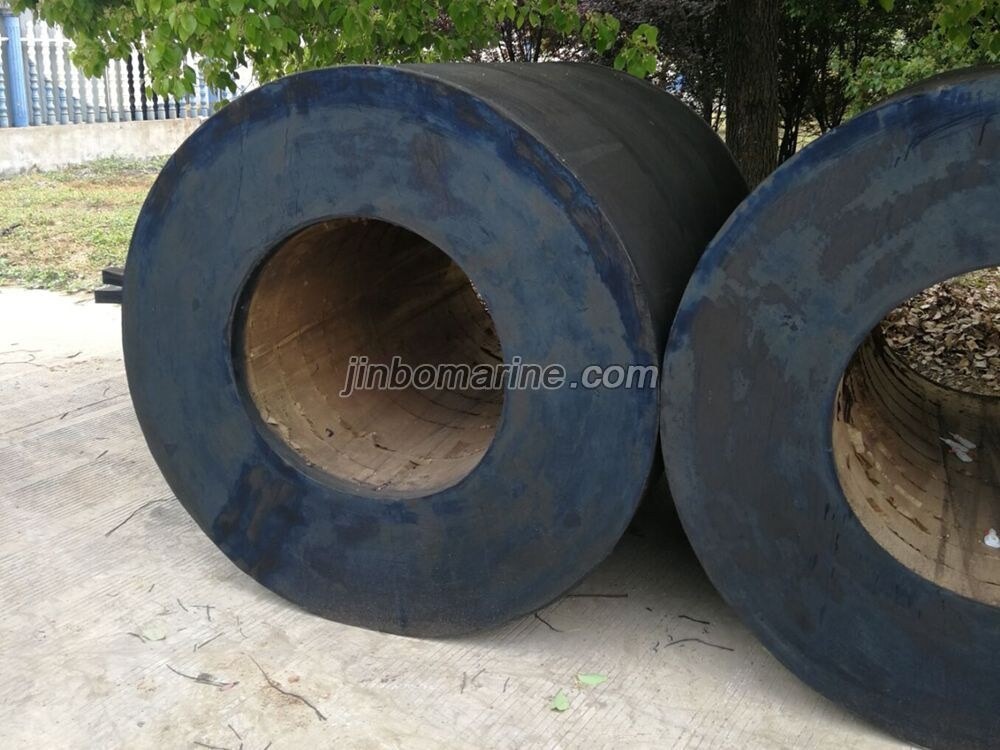

Y Type Rubber Fender
It also can be called as Cylindrical type rubber fender It is simple to install and operate, versatile and highly cost effective,this type fender is widely used in shipping and doc...
PDF Datasheet
China Y Type Rubber Fender:
It also can be called as Cylindrical type rubber fender
It is simple to install and operate, versatile and highly cost effective,this type fender is widely used in shipping and docks.Cylindrical rubber fenders’ simple hollow cylinder design can be produced in almost any length and diameter combination to meet specific performance and space requirements. The wide range of available sizes means Cylindrical rubber fenders can be closely matched to each application, and suitable for the berthing of both large and small vessels. Its installation is various– horizontally, vertically or diagonally and can also be adapted to suit wharf corners.
Features:
Simple and economical design,
Easy to be installed and maintained.
Choice of mounting systems to suit different structures and applications
Wide range of available size
| Product No. | Length (mm) | Out Diameter (mm) | Inner Diameter (mm) | Weight(kg/m) |
| Y150 | 550~5500 | 150 | 75 | 18 |
| Y200 | 200 | 100 | 28 | |
| Y250 | 250 | 125 | 45 | |
| Y300 | 300 | 150 | 64 | |
| Y400 | 400 | 200 | 110 | |
| Y500 | 500 | 250 | 175 | |
| Y600 | 600 | 300 | 250 | |
| Y700 | 700 | 350 | 345 | |
| Y800 | 800 | 400 | 450 | |
| Y900 | 900 | 450 | 570 | |
| Y1000 | 1000 | 500 | 710 | |
| Y1100 | 1100 | 550 | 870 | |
| Y1200 | 1200 | 600 | 1020 | |
| Y1400 | 1400 | 700 | 1400 | |
| Y1600 | 1600 | 800 | 1800 |
