YE-100 BF Stainless Steel Capsule Pressure Gauge
Used in Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel....
Loading product images...

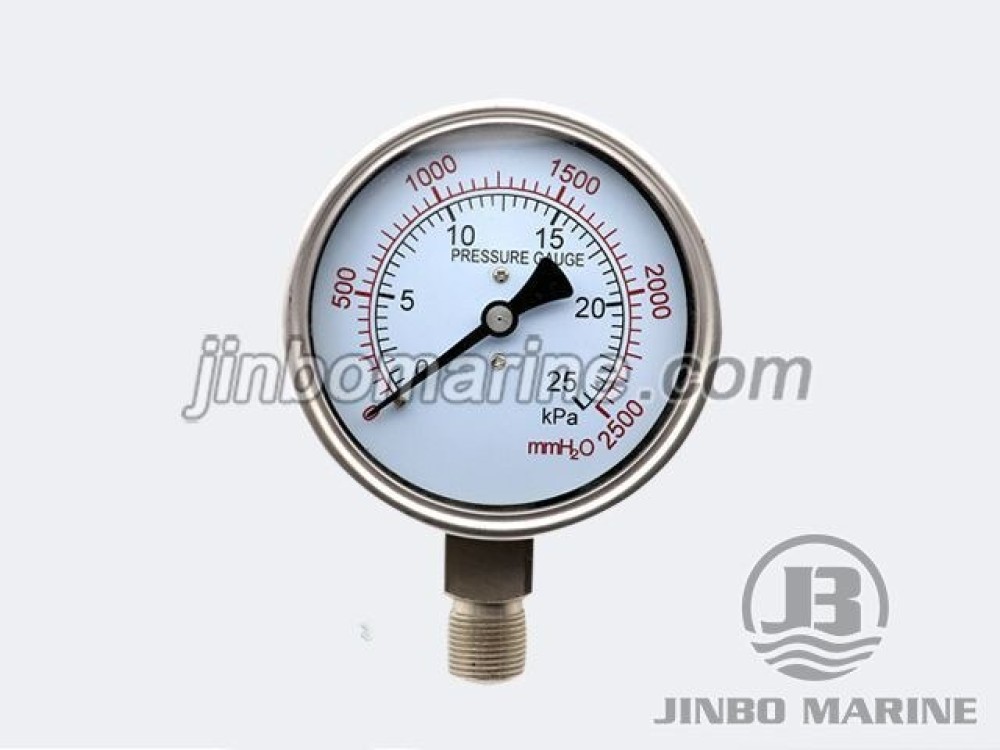

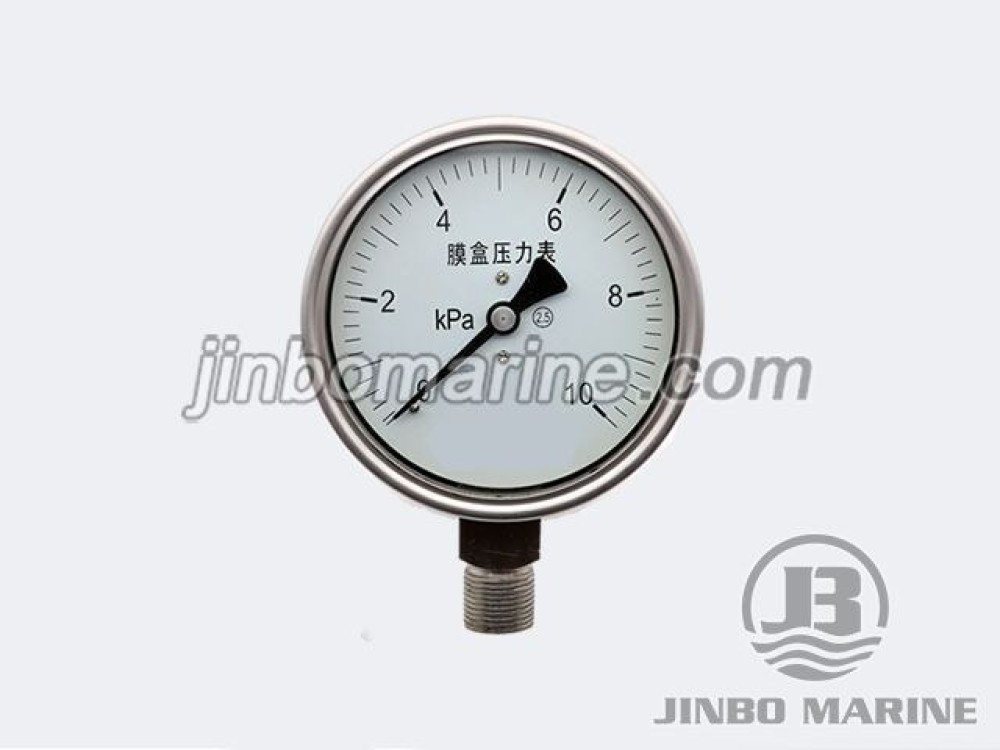

YE-100 BF Stainless Steel Capsule Pressure Gauge
PDF Datasheet
We can supply according to your requirement.
China YE-100 BF Stainless Steel Capsule Pressure Gauge:
Used in Hydraulic and Pneumatic Systems, Compressors, Regulator and industry machine, and suitable for fluid medium or Gaseous which does not clog connection port or corrode Stainless steel. It can used for severe service conditions where pulsation or vibration exist. Premium quality and long life.
Specifications:
| Outer diameter | 100MM |
| Testing pressure range | -100Kpa~0 to 0~100Kpa |
| Accuracy | Level 1.5；Level 2.5 |
| Sensitive element | 316L |
| Case material | stainless steel 304 |
| Operating environment | -25~55℃, relative humidity≤85% |
| Temperature effect | ≤0.4%/10℃ |
