YLX120-24Z Marine Electric Bell
Description: Marine electric bell is an important and simple communication and alarm tool on board, which can send out special signals in time to indicate the occurrence of some abnorm...

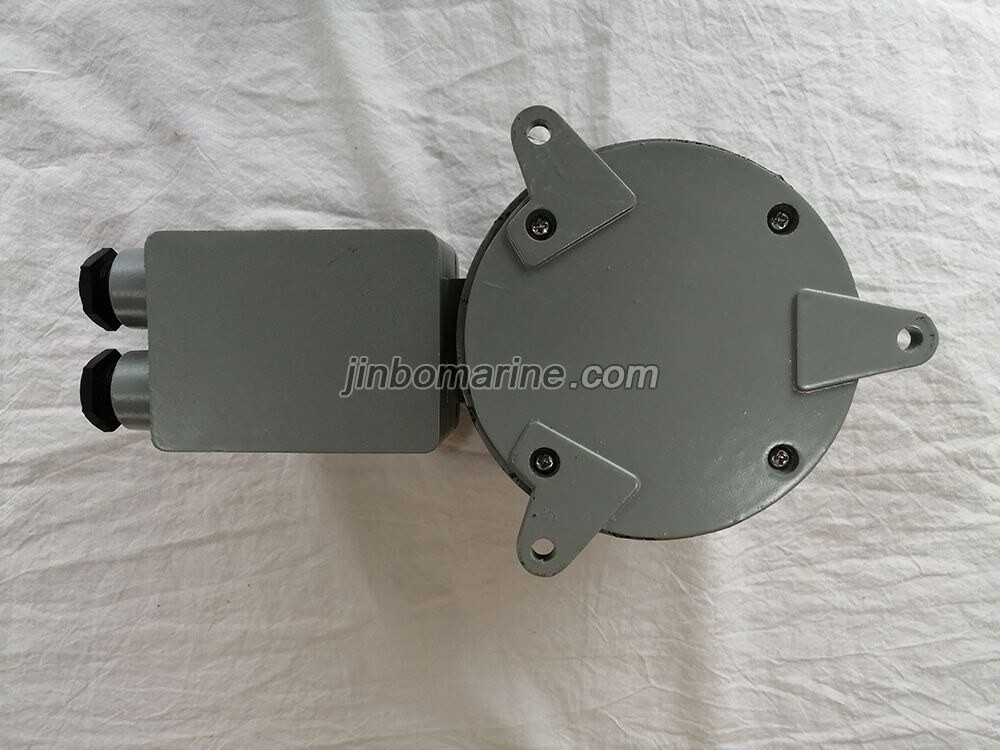

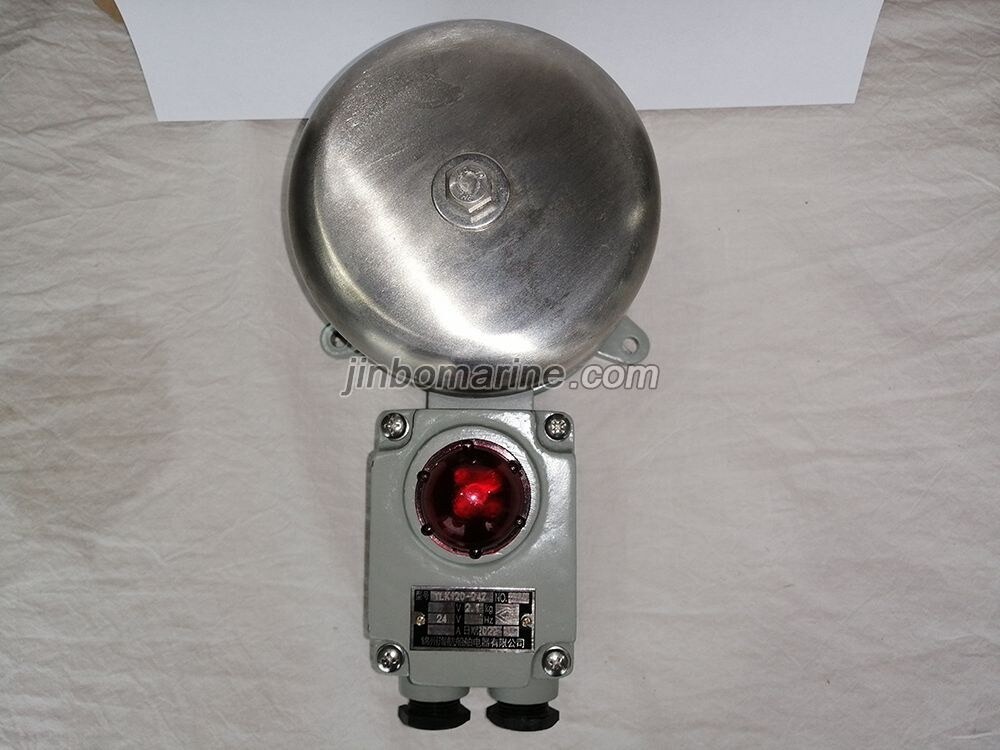

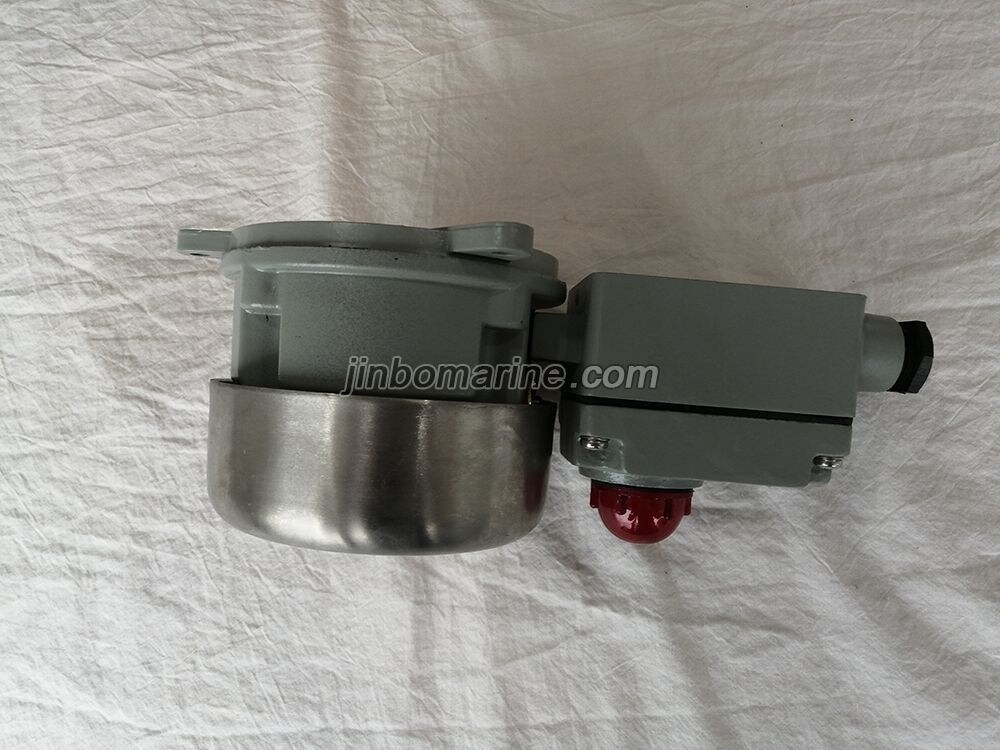

YLX120-24Z Marine Electric Bell
PDF Datasheet
We can supply according to your requirement.
Description:
Marine electric bell is an important and simple communication and alarm tool on board, which can send out special signals in time to indicate the occurrence of some abnormal phenomena. It is also a companion instrument to the ship's telephones, communications equipment, telegraph bells and other electrical equipment.
Techincal data:
1. applicable ambient temperature :-25℃~+55℃;
2. the power supply voltage in the rated DC±15%, AC +6%~-10% of the range of change,
3. can work reliably, the sound intensity is not less than the specified value;
4. Protection level :IP56;
5. Outer diameter of cable :φ14-φ16.
6. Working voltage DC24V
7.Net weight: 2.1kg
